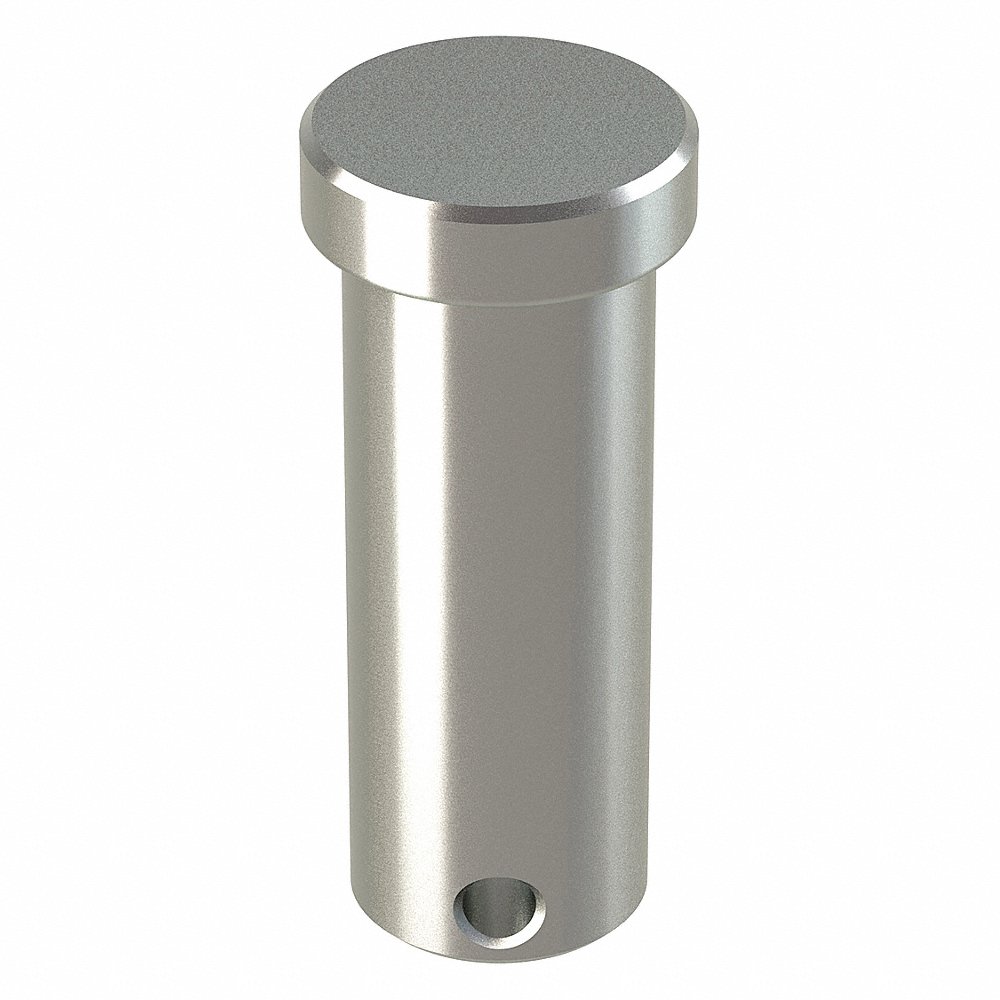

FABORY U51798.075.0500 Clevis Pin, Head, 3/4 In Pin Dia., 2 In Lg., Gr. 18-8, SS, W/O Pin
Item: CG8ULXModel: U51798.075.0500Cross Ref: 41MF80
7 In Stock
2"
3/4"
Ships within 2 days via
5.00% off
€48.15 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Clevis Pin |
| Dimensional Standards | Asme B18.8.1 |
| Finish | Plain |
| Grade | Grade 18-8 |
| Head Dia. | 1" |
| Head Dia. Tolerance | -0.002" to +0.01" |
| Head Type | Headed |
| Length | 2" |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Max. Hole Size | 0.156" |
| Min. Hole Size | 0.151" |
| Pin Dia. | 3/4" |
| Pin Type | Without Pin |
| Product Type | Standard Clevis Pin |
| Resistance Properties | Corrosion Resistant |
| Shank Length | 5" |
| Standard | ASME B18.8.1 |
| System Of Measurement | Imperial |
| Usable Length | 4 49/64" |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Model | Usable Length | Max. Hole Size | Pin Dia. | Shank Length | Material Grade/class | Head Dia. | Min. Hole Size | Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WWGCLPS6BPS6001 | 23/64" | 0.103" | 1/4" | 1/2" | 316 | 3/8" | 0.088" | Standard | 5 | €16.63 | |
| WWGCLPS6BPS6002 | 39/64" | 0.103" | 1/4" | 3/4" | 316 | 3/8" | 0.088" | Standard | 5 | €21.99 | |
| WWGCLPS6BPS6003 | 55/64" | 0.103" | 1/4" | 1" | 316 | 3/8" | 0.088" | Standard | 5 | €27.07 | |
| WWGCLPS6BPS6004 | 1 7/64" | 0.103" | 1/4" | 1 15/64" | 316 | 3/8" | 0.088" | Standard | 5 | €22.79 | |
| WWGCLPS6BPS6005 | 1 23/64" | 0.103" | 1/4" | 1 1/2" | 316 | 3/8" | 0.088" | Standard | 5 | €29.92 | |
| WWGCLPS6BPS6006 | 1 55/64" | 0.103" | 1/4" | 2" | 316 | 3/8" | 0.088" | Standard | 5 | €24.94 | |
| WWGCLPS6BPS6007 | 33/64" | 0.166" | 3/8" | 3/4" | 316 | 1/2" | 0.151" | Standard | 1 | €6.44 |
