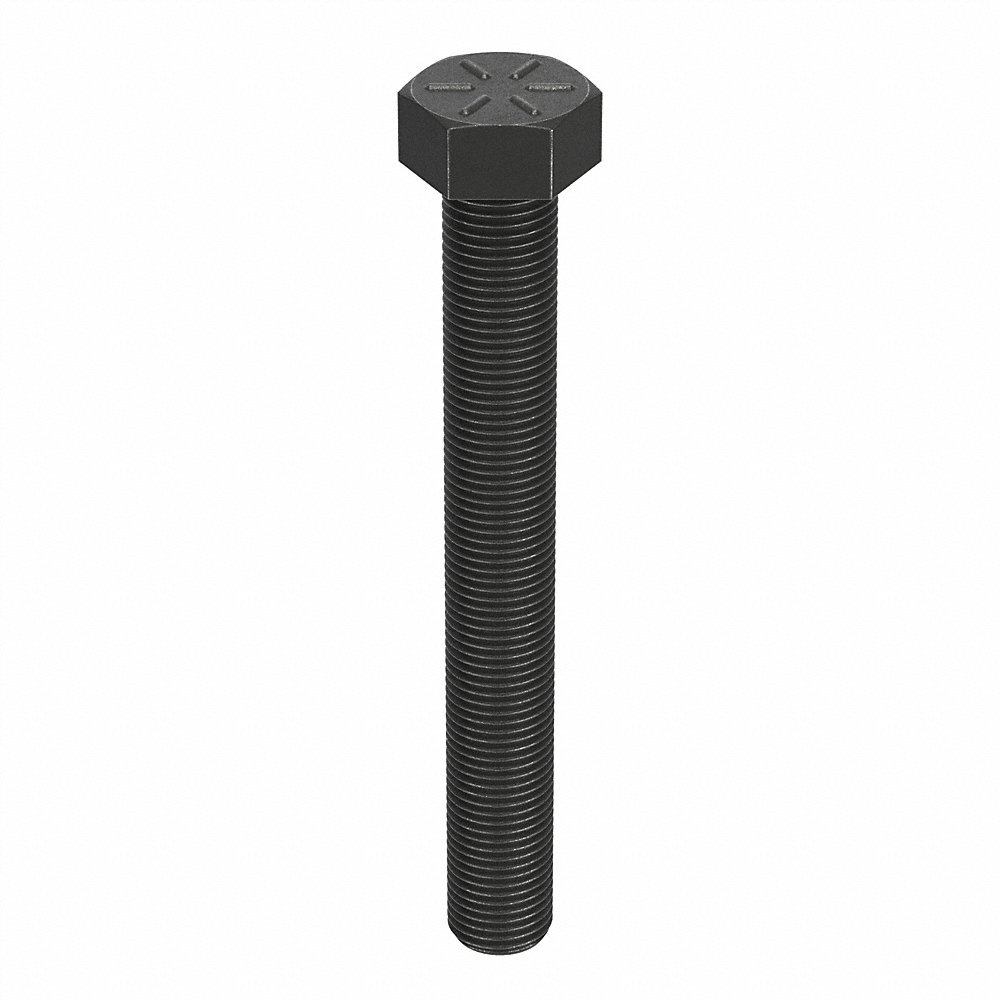

FABORY U04170.050.0400 Tap Bolt, 1/2 In - 20 Thread Size, 4 In Lg., 11/32 In Head Ht., 3/4 In Head Wd., Fine, 150000 psi TS
Item: CG8KZPModel: U04170.050.0400Cross Ref: 41UG39
7 In Stock
Ships within 2 days via
5.00% off
€34.79 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap Bolt |
| Drive | Hex |
| Drive Type | Hex |
| Fastener Length | 4" |
| Finish | Black Oxide |
| Grade | Grade 8 |
| Hardness | Rockwell C33 |
| Head Height | 11/32" |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 3/4" |
| Hex Head Cap Screw Type | Hex Tap Bolt |
| Length | 4" |
| Material | Steel |
| Material Grade/class | Grade 8 |
| Material Quality Standards | Sae J429 |
| Min. Thread Length | 4" |
| Overall Length | 4" |
| Rockwell Hardness | Hrc33 |
| Standard | ASME B18.2.1 |
| System Of Measurement | Imperial |
| Tensile Strength | 150000 psi |
| Thread Direction | Right Hand |
| Thread Length | 4" |
| Thread Size | 1/2"-20 |
| Thread Style | Fully Threaded |
| Thread Type | Fine |
| Type | Hex Tap Bolt |
Shipping Info:
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Product | Model | Thread Length | Fastener Length | Min. Thread Length | Head Height | Head Width | Thread Style | Thread Direction | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
696525G | 2 1/2" | 2 1/2" | 2 1/2" | 11/32" | 3/4" | Fully Threaded | Right Hand | Grade 8 | 50 | €115.64 | |
 |
696535G | 3" | 3" | 3" | 11/32" | 3/4" | Fully Threaded | Right Hand | Grade 8 | 50 | €154.68 | |
 |
U04170.050.0200 | 2" | 2" | 2" | 11/32" | 3/4" | Fully Threaded | Right Hand | Grade 8 | 10 | €37.31 | |
|
U04170.050.0225 | 2 1/4" | 2 1/4" | 2 1/4" | 11/32" | 3/4" | Fully Threaded | Right Hand | Grade 8 | 10 | €310.16 | |
|
U04170.050.0350 | 3 1/2" | 3 1/2" | 3 1/2" | 11/32" | 3/4" | Fully Threaded | Right Hand | Grade 8 | 10 | €92.46 |
