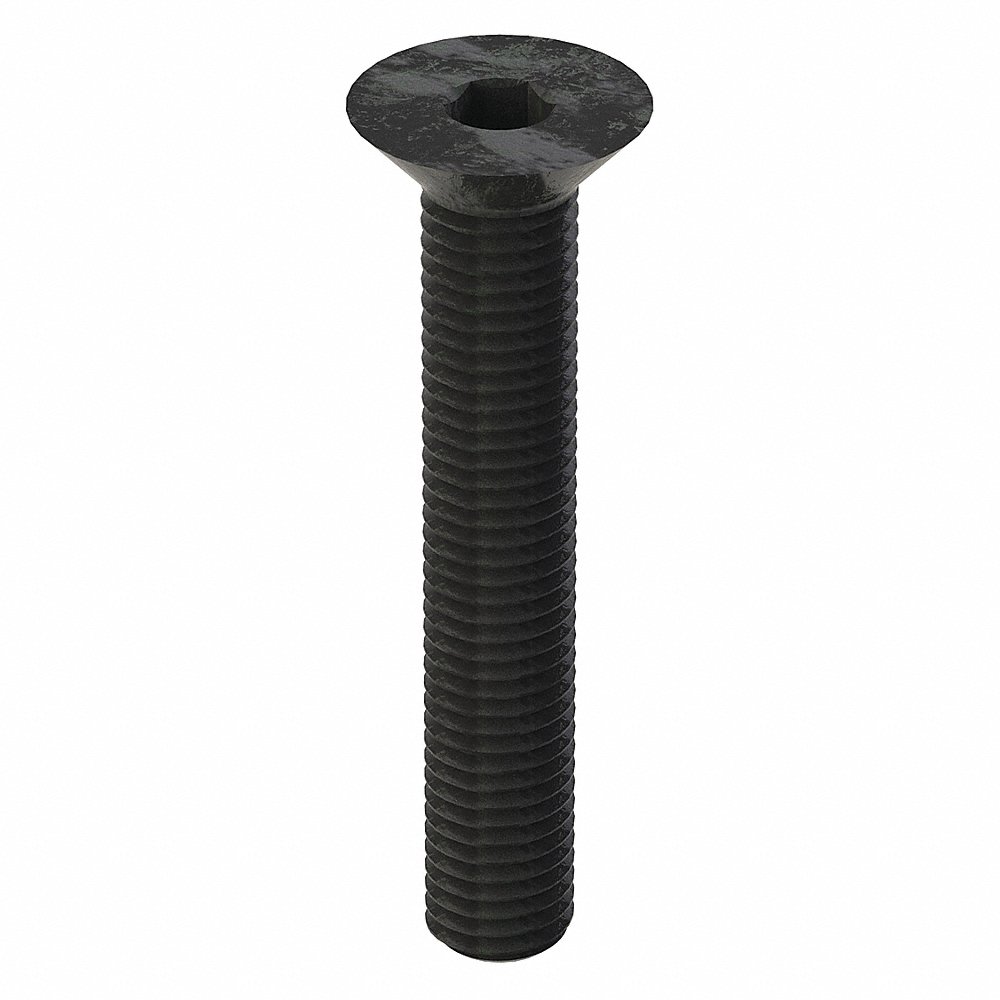

FABORY M07400.140.0080 Metric Socket Flat Head Cap Screw, M14x2 Thread Size, Flat, 80 mm Lg., Blk Oxide
Item: CG8DRHModel: M07400.140.0080Cross Ref: 42NN80
7 In Stock
Ships within 2 days via
5.00% off
€39.07 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Metric Socket Flat Head Cap Screw |
| Class | Class 10.9 |
| Combined Material & Grade | Class 10.9 Steel |
| Countersink Angle | 90° |
| Dimensional Standards | DIN 7991 |
| Display Qty | 10 |
| Drive Size | 10 mm |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C32-C39 |
| Head Angle | 90° |
| Head Dia. | 27 mm |
| Head Height | 7 mm |
| Head Type | Flat |
| Length | 80 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Material Type | Steel |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Tensile Strength | 150800 psi |
| Min. Thread Length | 80 mm |
| Screw Length | 80 mm |
| Self-locking Element | No |
| Standard | DIN 7991 |
| System Of Measurement | Metric |
| Temp. | -58°F to +302°F |
| Tensile Strength | 150800 psi |
| Thread Direction | Right Hand |
| Thread Length | 80 mm |
| Thread Size | M14 x 2 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Product | Model | Head Dia. | Drive Size | Head Height | Thread Style | Min. Thread Length | Combined Material & Grade | Thread Length | Temp. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07410.050.0250 | 15/16" | 5/16" | 0.251" | Partially Threaded | 1 1/2" | Grade Steel | 1 1/2" | -0°F to +250°F | 10 | €20.85 | |
 |
M07400.040.0006 | 8.96 mm | 2.5 mm | 2.48 mm | Fully Threaded | 6 mm | Class 10.9 Steel | 6 mm | - | 100 | €10.07 | |
 |
M07400.040.0008 | 8.96 mm | 2.5 mm | 2.48 mm | Fully Threaded | 8 mm | Class 10.9 Steel | 8 mm | - | 100 | €12.25 | |
 |
M07400.040.0010 | 8.96 mm | 2.5 mm | 2.48 mm | Fully Threaded | 10 mm | Class 10.9 Steel | 10 mm | - | 100 | €4.29 | |
 |
M07400.040.0012 | 8.96 mm | 2.5 mm | 2.48 mm | Fully Threaded | 12 mm | Class 10.9 Steel | 12 mm | - | 100 | €12.31 | |
 |
M07400.040.0016 | 8.96 mm | 2.5 mm | 2.48 mm | Fully Threaded | 16 mm | Class 10.9 Steel | 16 mm | - | 100 | €12.24 | |
 |
M07400.040.0020 | 8.96 mm | 2.5 mm | 2.48 mm | Fully Threaded | 20 mm | Class 10.9 Steel | 20 mm | - | 100 | €14.13 |
