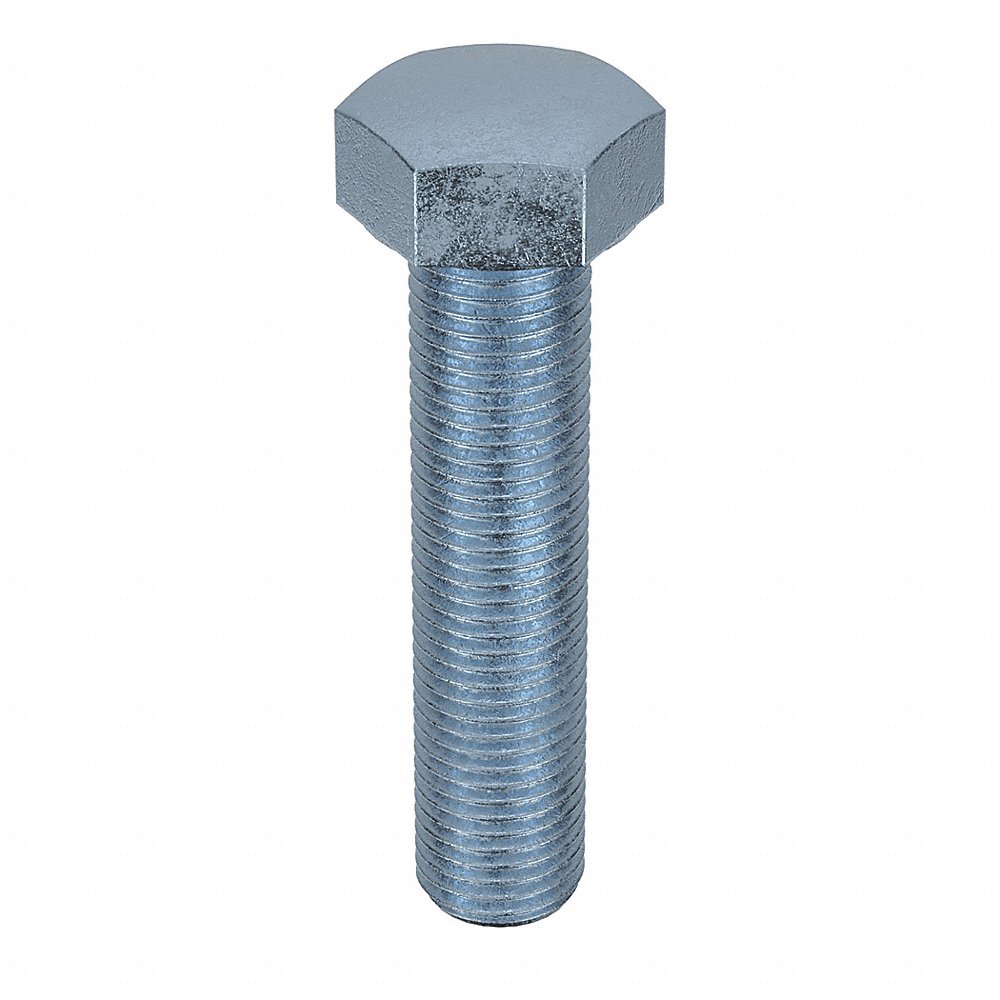

FABORY M01210.360.0160 Hex Head Cap Screw, M36x4 Thread Size, Steel, 160 mm Lg., 22.5 mm Head Ht., Coarse
Item: CG8CFPModel: M01210.360.0160Cross Ref: 38CL21
7 In Stock
Ships within 2 days via
5.00% off
€62.42 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 8.8 |
| Drive | Hex |
| Fastener Length | 160 mm |
| Grade | Non Graded |
| Hardness | Rockwell C23 |
| Head Height | 22.5 mm |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 55 mm |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 160 mm |
| Material | Steel |
| Material Grade/class | Class 8.8 |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Thread Length | 160 mm |
| Overall Length | 160 mm |
| Rockwell Hardness | Hrc23 |
| Standard | DIN 933 |
| System Of Measurement | Metric |
| Tensile Strength | 120350 psi |
| Thread Direction | Right Hand |
| Thread Length | 160 mm |
| Thread Size | M36 x 4 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 1.53 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Product | Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Hardness | Rockwell Hardness | Head Height | Head Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M01210.360.0080 | Fully Threaded | 80 mm | 80 mm | 80 mm | Rockwell C22 | Hrc22 | 22.5 mm | 55 mm | 5 | €148.51 | |
|
M01210.360.0090 | Fully Threaded | 90 mm | 90 mm | 90 mm | Rockwell C22 | Hrc22 | 22.5 mm | 55 mm | 5 | €129.15 | |
 |
M01210.360.0100 | Fully Threaded | 100 mm | 100 mm | 100 mm | Rockwell C22 | Hrc22 | 22.5 mm | 55 mm | 5 | €142.22 | |
 |
M01200.360.0110 | Partially Threaded | 78 mm | 110 mm | 78 mm | Rockwell C23 | Hrc23 | 22.5 mm | 55 mm | 2 | €148.17 | |
|
M01200.360.0120 | Partially Threaded | 78 mm | 120 mm | 78 mm | Rockwell C23 | Hrc23 | 22.5 mm | 55 mm | 2 | €175.39 | |
|
M01200.360.0130 | Partially Threaded | 84 mm | 130 mm | 84 mm | Rockwell C23 | Hrc23 | 22.5 mm | 55 mm | 2 | €164.94 | |
 |
M01200.360.0140 | Partially Threaded | 84 mm | 140 mm | 84 mm | Rockwell C23 | Hrc23 | 22.5 mm | 55 mm | 2 | €108.20 |
