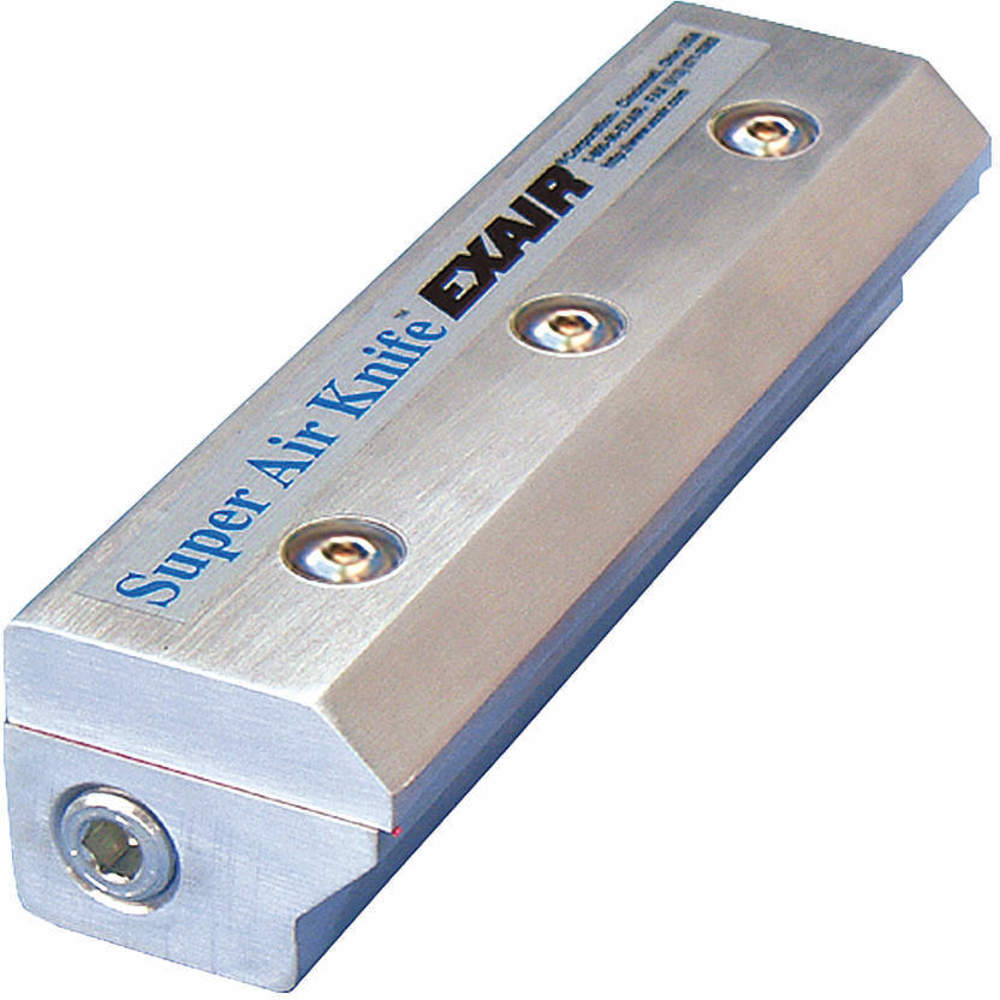

EXAIR 10054 Air Knife 1/4 Inch Npt 54 Inch Length Aluminium
Item: AE9GCQModel: 10054Cross Ref: 6JJL5
7 In Stock
Ships within 2 days via
10.00% off
€1,695.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Knife |
| (f)npt Inlet | 1/4" |
| Air Consumption | 156 SCFM |
| Air Consumption Per Inch | 156 SCFM |
| Air Inlet Gender | Female |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Air Slot Gap (in.) | 0.002" |
| Air Slot Gap (in.) | 0.002 |
| Air Slot Gap Size | 0.002" |
| Air Slot Height | 0.002" |
| Air Slot Width | 54" |
| Air Slot Width (in.) | 54 |
| Body Material | Aluminum |
| Category Type | Air Knives |
| Db @ 80 Psi | 64 dB |
| Flow Pattern Height At 12 Inches | 5" |
| Flow Pattern Height At 18 Inches | 7" |
| Flow Pattern Height At 3 Inches | 2" |
| Flow Pattern Height At 6 Inches | 3" |
| Fluid Type | Compressed Air |
| Fnpt Inlet Size | 1/4" |
| For Fluid Type | Compressed Air |
| Includes Filter Separator | Not Applicable |
| Includes Pressure Regulator | Not Applicable |
| Includes Shims | Not Applicable |
| Inlet Gender | Female |
| Inlet Size | 1/4" |
| Inlet Type | Female |
| Material | Aluminum |
| Max. Operating Pressure | 250 psi |
| Max. Operating Temp. | 180°F |
| Max. Temp. | 180°F |
| Maximum Sound Level | 72 dBA |
| Min. Operating Pressure | 80 psi |
| Minimum Operating Pressure | 10 psi |
| Mounting Hole Dia. | 1/4" |
| Mounting Stud Thread Size | 1/4"-20 |
| Mounting Thread Size | 1/4"-20 |
| Number Of Air Inlets | 5 |
| Number Of Inlets | 5 |
| Operating Pressure | 80 psi to 250 psi |
| Overall Depth | 1 3/4" |
| Overall Height | 1 1/2" |
| Overall Length | 54" |
| Overall Thickness | 1 11/25" |
| Overall Width | 54" |
| Product Type | Air Knife Only |
| System Of Measurement | Inch |
| Type | Air Knife Only |
Shipping Info:
| Ship weight (kg) | 4.7 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 137.92 |
| Ship width (cm) | 5.84 |
| HS code | 8479810000 |
| Country of Origin | US |
