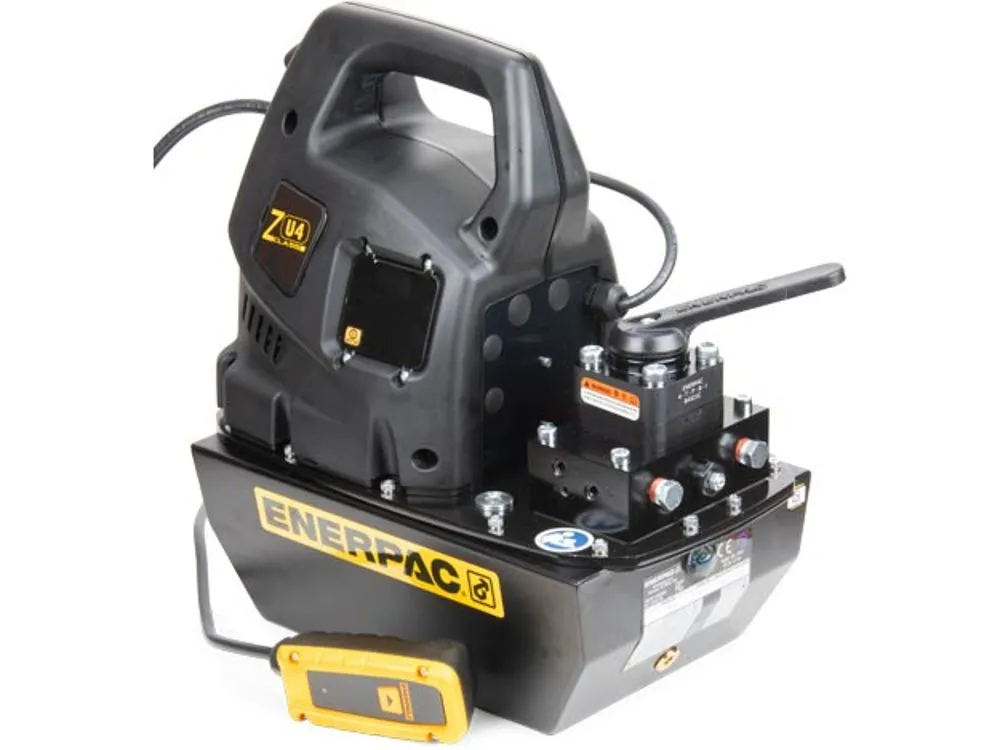

ENERPAC ZU4408JB Electric Hydraulic Pump, Standard, 4/3 Manual Valve, 115V, 2 Gallon Usable Oil
Get it by Monday, Dec 22
10.00% off
€10,263.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Electric Pump |
| Amps Ac | 22A |
| Charger Input Voltage | 115V AC |
| Control Pendant Size | 10 ft. |
| Control Pendant Voltage | Manual |
| Control Valve Function | Advance, Hold, Retract |
| Control Valve Pressure Relief (minimum) | 2000 psi |
| Control Valve Type | 3 Position, 4 Way, Tandem Center |
| Cylinder Compatibility | Double Acting |
| Dimension A | 16.7" |
| Dimension B | 5 3/5" |
| Dimension C | 11" |
| Displacement @ 10,000 Psi | 60 cu. in./min. |
| Displacement @ 100 Psi | 700 cu. in./min. |
| Displacement @ 1000 Psi | 500 cu. in./min. |
| Displacement @ 200 Psi | 675 cu. in./min. |
| Displacement @ 5000 Psi | 76 cu. in./min. |
| Displacement @ 700 Psi | 535 cu. in./min. |
| Duty Cycle | Intermittent |
| Fluid Port Npt | 3/8" |
| Frequency | 50/60 Hz |
| Frequency | 50/ 60 Hz |
| Hp | 1 7/10 hp |
| Max. Control Valve Pressure Relief | 10000 psi |
| Max. Flow Rate | 60 cu. in./min. |
| Max. Hp | 1 7/10 hp |
| Max. Operating Pressure | 10000 psi |
| Max. Sound Level | 90 dBA |
| Media Intake Connection Size | 1/2" |
| Media Intake Connection Type | NPTF |
| Motor Type | Universal |
| Nameplate Voltage | 115V AC |
| Oil Displacement @ 0-200 Psi | 675 cu. in./min. |
| Overall Height | 16.7" |
| Overall Length | 25" |
| Overall Width | 12 1/2" |
| Phase | 1 |
| Power Source | Electric |
| Pump Control | Pendant |
| Relief Valve Range | 2000 to 10000 psi |
| Relief Valve Range | 2000 psi to 10000 psi |
| Reservoir Capacity | 416 cu. in. |
| Reservoir Capacity | 2 gal. |
| Reservoir Material | Steel |
| Sound Level | 85 dBA to 90 dBA |
| Sound Level (minimum) | 85 dBA |
| Type | Electric |
| Valve Operation | Manual |
Shipping Info:
| Ship weight (kg) | 31.05 |
| Ship height (cm) | 71.12 |
| Ship length (cm) | 76.2 |
| Ship width (cm) | 76.2 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Operating Pressure | Duty Cycle | Cylinder Compatibility | Reservoir Capacity | Valve Operation | Pump Control | Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZU4308MB | 10000 psi | Intermittent | Single Acting | 2 gal. | Manual | Manual | High Force | Universal | €9,632.65 | |
 |
ZU4308LB | 10000 psi | Intermittent | Single Acting | - | Manual | Manual | High Force | Universal | €13,906.95 | |
 |
ZU4104DB | 10000 psi | Intermittent | Single Acting | 277 cu. in. | Solenoid | Pendant | Electric | Universal | €10,900.94 | |
|
ZU4108DB | 10000 psi | Intermittent | Single Acting | 416 cu. in. | Solenoid | Pendant | Electric | Universal | €11,834.86 | |
|
ZU4120DB | 10000 psi | Intermittent | Single Acting | 1201 cu. in. | Solenoid | Pendant | Electric | Universal | €13,155.52 | |
 |
ZU4204JB | 10000 psi | Intermittent | Single Acting | 277 cu. in. | Manual | Pendant | Electric | Universal | €9,407.71 | |
|
ZU4204MB | 10000 psi | Intermittent | Single Acting | 277 cu. in. | Manual | Manual | Electric | Universal | €9,479.63 |
