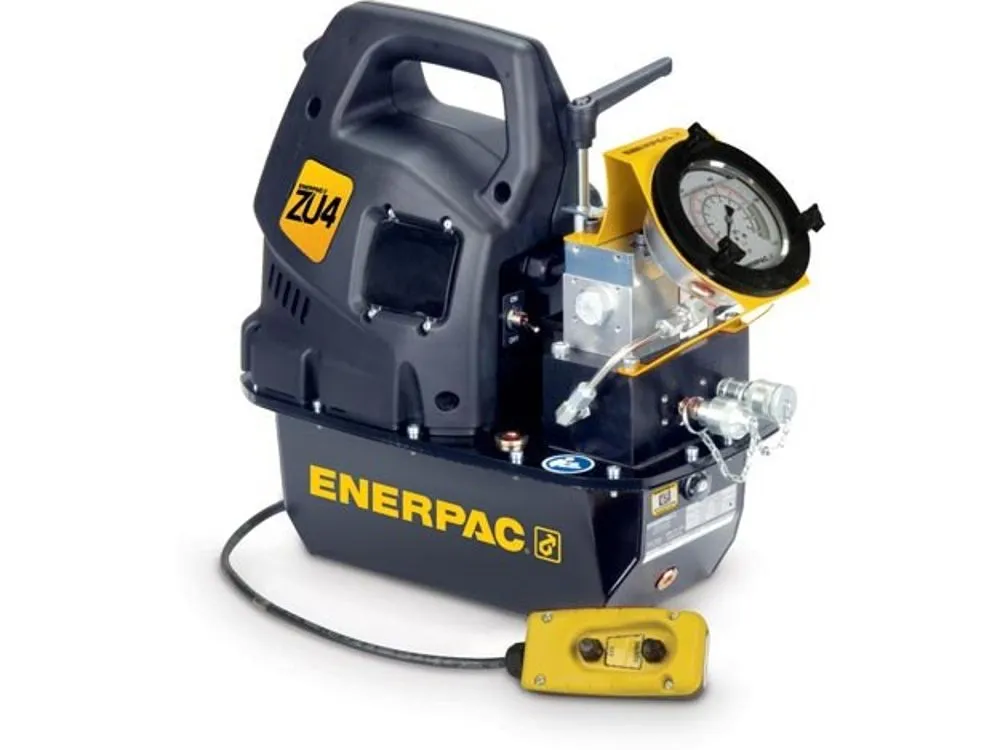

ENERPAC ZU4204BBQ Pump, Electric Universal, Torque, Classic 115V, 4L
Get it by Tuesday, Dec 23
10.00% off
€14,053.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Electric Pump |
| Application | For Use With Enerpac Torque Wrenches |
| Charger Input Voltage | 115V AC |
| Control Pendant Size | 20 ft. |
| Control Pendant Voltage | 24V DC |
| Control Valve Pressure Relief (minimum) | 1800 psi |
| Control Valve Type | 2 Position, 4 Way |
| Current | 22A |
| Cylinder Compatibility | Double Acting |
| Displacement @ 10,000 Psi | 60 cu. in./min. |
| Displacement @ 100 Psi | 700 cu. in./min. |
| Displacement @ 5000 Psi | 76 cu. in./min. |
| Displacement @ 700 Psi | 535 cu. in./min. |
| Frequency | 50/60 Hz |
| Includes | Glycerine Filled Gauge |
| Max. Control Valve Pressure Relief | 10000 psi |
| Max. Flow Rate | 60 cu. in./min. |
| Max. Hp | 1 7/10 hp |
| Max. Operating Pressure | 10000 psi |
| Max. Sound Level | 90 dBA |
| Media Intake Connection Size | 1/2" |
| Media Intake Connection Type | NPTF |
| Motor Type | Universal |
| Nameplate Voltage | 115V AC |
| Overall Height | 16.7" |
| Overall Length | 25" |
| Overall Width | 12 1/2" |
| Phase | Single |
| Product Datasheet | enerpac-zu4204bbq.pdf |
| Reservoir Capacity | 1 gal. |
| Reservoir Material | Steel |
| Sound Level (minimum) | 85 dBA |
Shipping Info:
| Ship weight (kg) | 34.74 |
| Ship height (cm) | 71.12 |
| Ship length (cm) | 76.2 |
| Ship width (cm) | 76.2 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Max. Operating Pressure | Duty Cycle | Cylinder Compatibility | Reservoir Capacity | Valve Operation | Pump Control | Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZU4308MB | 10000 psi | Intermittent | Single Acting | 2 gal. | Manual | Manual | High Force | Universal | €9,632.65 | |
 |
ZU4308LB | 10000 psi | Intermittent | Single Acting | - | Manual | Manual | High Force | Universal | €13,906.95 | |
 |
ZU4104DB | 10000 psi | Intermittent | Single Acting | 277 cu. in. | Solenoid | Pendant | Electric | Universal | €10,900.94 | |
|
ZU4108DB | 10000 psi | Intermittent | Single Acting | 416 cu. in. | Solenoid | Pendant | Electric | Universal | €11,834.86 | |
|
ZU4120DB | 10000 psi | Intermittent | Single Acting | 1201 cu. in. | Solenoid | Pendant | Electric | Universal | €13,155.52 | |
 |
ZU4204JB | 10000 psi | Intermittent | Single Acting | 277 cu. in. | Manual | Pendant | Electric | Universal | €9,407.71 | |
|
ZU4204MB | 10000 psi | Intermittent | Single Acting | 277 cu. in. | Manual | Manual | Electric | Universal | €9,479.63 |
