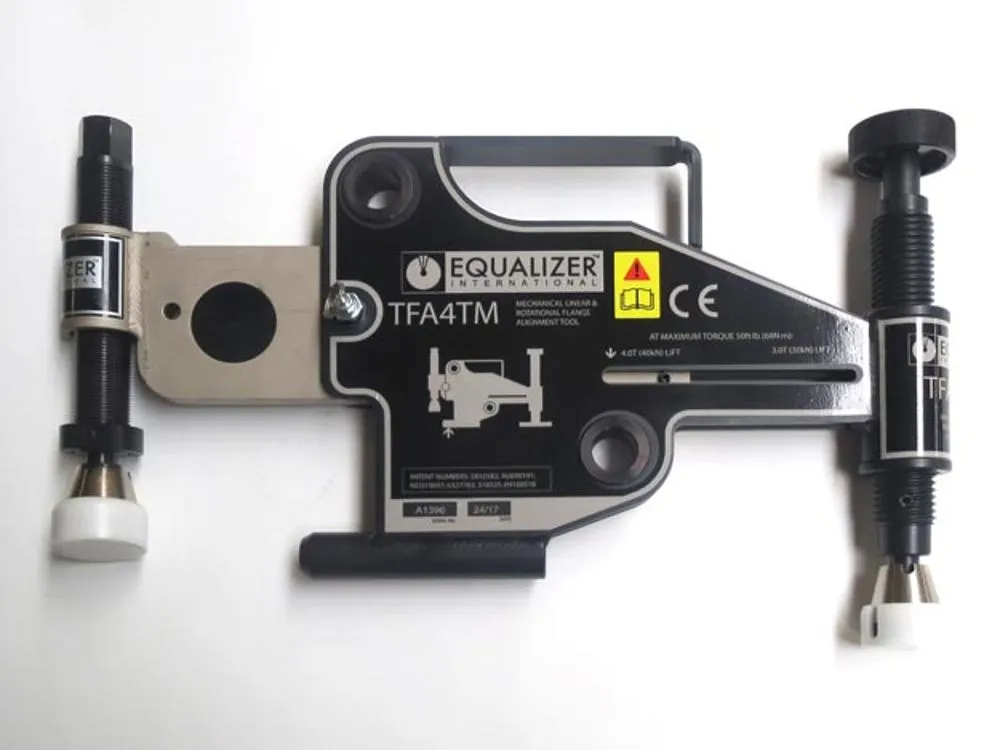

ENERPAC TFA4TMSTD Mechanical Wind Tower Alignment Tool
Get it by Monday, Dec 22
€6,326.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Tower Alignment Tool |
| Bolt Hole Diameter Min (mm) B | 25 mm |
| Case Dimensions | 600 mm x 370 mm x 200 mm |
| Height | 274 mm |
| Height (in) | 10.8" |
| Maximum Reaction Force (imperial Ton) | 4.5 ton. |
| Maximum Reaction Force (kn) | 40 kN |
| Min. Bolt Size | 1" |
| Minimum Bolt Hole Diameter | 0.984" |
| Minimum Bolt Size (mm) | 25 mm |
| Misalignment Max (mm) M | 54 mm |
| Misalignment Max. M | 2.125984252" |
| Misalignment Min (in) M | 0" |
| Misalignment Min (mm) M | 0 mm |
| Pipe Leg Drop Max (in) D | 4.173228346" |
| Pipe Leg Drop Max (mm) D | 106 mm |
| Pipe Leg Drop Min (mm) D | 25 mm |
| Pipe Leg Drop Min. D | 0.9842" |
| Promotion Restriction | Not Eligible For Promotion |
| Reaction Force 1 Max (imperial Ton) | 1.12 ton. |
| Reaction Force 1 Max (metric Ton) | 1 ton. |
| Reaction Force 1 Min (imperial Ton) | 0.5 ton. |
| Reaction Force 1 Min (metric Ton) | 0.4 ton. |
| Reaction Force 2 Max (imperial Ton) | 4.5 ton. |
| Reaction Force 2 Max (metric Ton) | 4 ton. |
| Reaction Force 2 Min (imperial Ton) | 3.37 ton. |
| Reaction Force 2 Min (metric Ton) | 3 ton. |
| Reaction Spacing (in) H | 9.645669291" |
| Reaction Spacing (mm) H | 245 mm |
| Rise Max (mm) R | 54 mm |
| Rise Maximum (in) R | 2.125984252" |
| Rise Min (in) R | 0" |
| Rise Min (mm) R | 0 mm |
| Width (in) | 2" |
| Width (mm) | 51 mm |
| Wing Reach Max W | 178 mm |
| Wing Reach Max Width | 7.007874016" |
| Wing Reach Min (mm) W | 45 mm |
| Wing Reach Minimum (in) W | 1.771653543" |
Shipping Info:
| Ship weight (kg) | 17.87 |
| Ship height (cm) | 55.88 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 15.24 |
