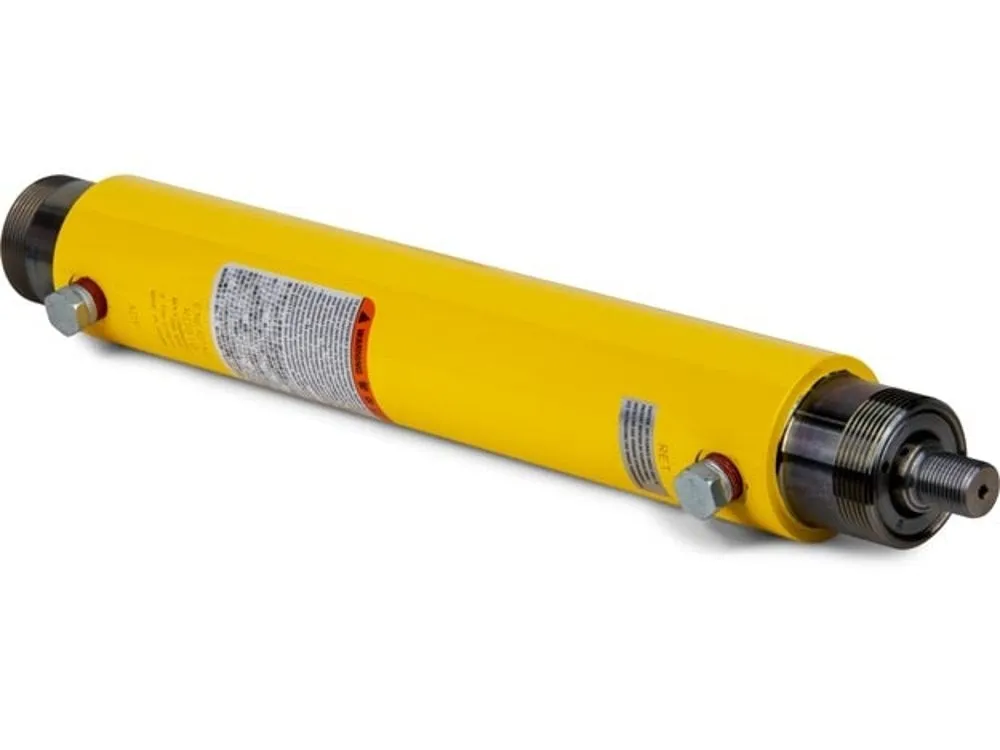

ENERPAC RD910 General Purpose Hydraulic Cylinder, 9 Ton, Capacity, 10.13 Inch Stroke Length
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€3,612.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Base To Advance Port | 2.27" |
| Body Material | Steel |
| Center Hole Diameter | 1 5/16" |
| Clevis Eye Mounting Dimension Length | 20.66" |
| Clevis Eye Mounting Dimension M | 1 1/2" |
| Clevis Eye Mounting Dimension Overall Length | 30.79" |
| Collapsed Height | 17.78" |
| Collar Thread Length | 14/25" |
| Collar Thread Size | 2"-12 |
| Collar Thread Size | 1 11/16"-18 |
| Cylinder Bore | 1 1/2" |
| Cylinder Capacity Advance At 5000 Psi | 9000 lbs. |
| Cylinder Capacity Retract At 5000 Psi | 4910 lbs. |
| Cylinder Type | High Cycle |
| Effective Push Area | 1.77 sq. in. |
| Extended Height | 27.91" |
| Finish | Paint |
| Handle | No |
| Internal Base Thread Length | 0.55" |
| Internal Base Thread Size | 1 11/16"-18 |
| Length | 16.81" |
| Link Width | 1 1/2" |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Max. Push Capacity | 9 ton. |
| Nominal Capacity | 10 ton. |
| Nominal Stroke Length | 10" |
| Oil Capacity | 17.89 cu. in. |
| Oil Capacity Push | 17.89 cu. in. |
| Outside Dia. | 2 1/2" |
| Plunger Dia. | 1" |
| Plunger Outside Thread Size | 3/4"-16 |
| Plunger Thread Length | 3/4" |
| Plunger Thread Size | 3/4"-16 |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 17.78" |
| Single Acting/double Acting | Double Acting |
| Stroke Length | 10 1/8" |
| Top To Retract Port | 2.27" |
| Weighing Capacity | 9 ton. |
Shipping Info:
| Ship weight (kg) | 8.69 |
| Ship height (cm) | 51.94 |
| Ship length (cm) | 7.32 |
| Ship width (cm) | 7.32 |
| HS code | 8412210030 |
| Country of Origin | CN |
Product Details:
Enerpac RD910 hydraulic cylinder is ideal for use in repeated cycles of lifting and supporting objects in the production line. It is also used with fixtures to crimp, punch and press. This hydraulic cylinder can be used independently for lifting heavy objects.
Features:
- Enerpac RD910 double acting hydraulic cylinder features steel construction with baked enamel finish that offers increased corrosion resistance and rigidity.
- This hydraulic cylinder has double-acting operation which generates force in both up and down directions for adaptability.
- It is integrated with a plunger wiper to prevent contaminants from entering inside the cylinder and enhance service life.
- This Enerpac RD910 double acting hydraulic cylinder can handle operating pressures up to 10000 psi.
Compatible Accessories:
- Enerpac AD171 Foot Mounting: It is designed for use with this Enerpac cylinder, providing a secure and stable base for the cylinder, allowing for easier and more efficient operation.
- Enerpac AD172 Flange Adapter: It is suitable for use with this Enerpac RCH-206 cylinder, allowing easy and secure connection of the cylinder to a flange or mounting surface, enhancing the versatility and functionality of the hydraulic system.
- Enerpac AD173 Retainer Nut: It is designed for secure and stable assembly of this Enerpac cylinder, ensuring reliable operation during hydraulic applications.
- Enerpac AD151 Clevis Eye: It provides a reliable connection point for attaching the cylinder to various load-bearing components, enabling efficient and effective hydraulic operations.
Frequently Asked Questions:
Q. What will happen if the air is trapped in a hydraulic system?
A. When air contaminates the hydraulic fluid cavitation, aeration or foaming can happen that degrades the hydraulic fluid, thereby resulting in component damage or a loss of lubrication.
Q. What causes side loading in hydraulic cylinders?
A. Side loads occur when unequal pressure is forced on the centre of the piston rod.
Q. What causes a hydraulic cylinder to lose pressure?
A. A drift condition causes hydraulic cylinders to lose pressure when the drift is caused by an internal leak (in the cylinder across the piston) or an external leak has occurred.
Product Variants
| Product | Model | Stroke Length | Retracted Height | Weighing Capacity | Outside Dia. | Cylinder Bore | Collar Thread Length | Plunger Thread Length | Top To Retract Port | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RD1610 | 10 1/4" | 19.31" | 16 ton. | 3" | 2" | 22/25" | 1" | 2.9" | €6,379.58 | |
 |
RD166 | 6 1/4" | 15.31" | 16 ton. | 3" | 2" | 22/25" | 1" | 2.9" | €4,966.03 | |
 |

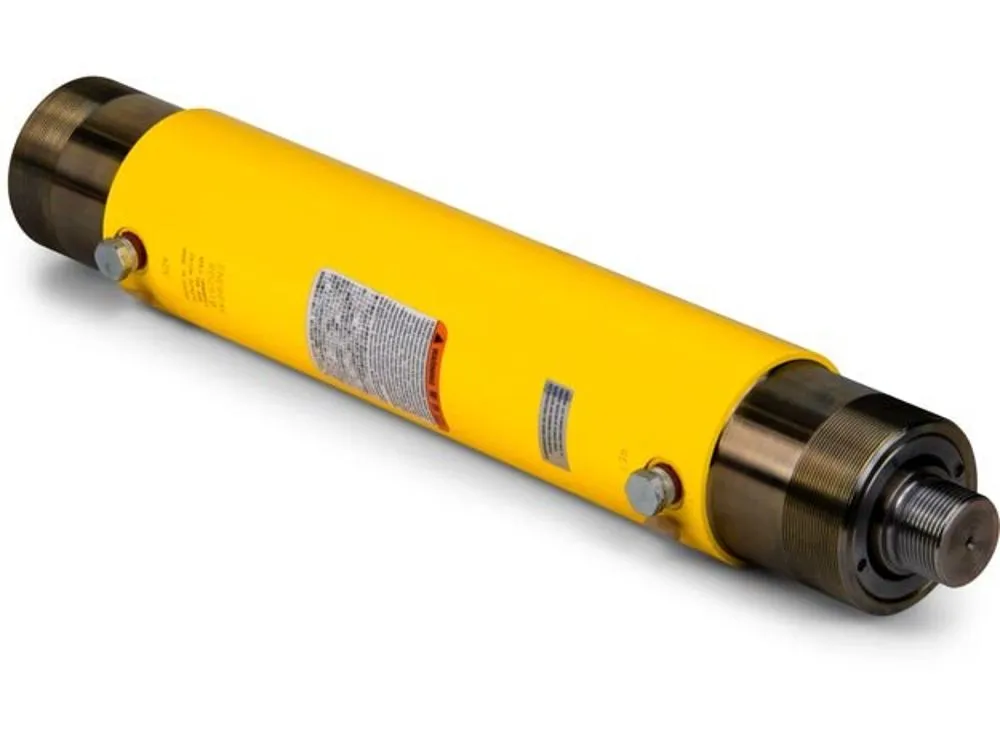

RD2510 | 10 1/4" | 20.69" | 25 ton. | 3.63" | 2 1/2" | 1.13" | 1" | 3 1/2" | €8,887.33 | |
 |

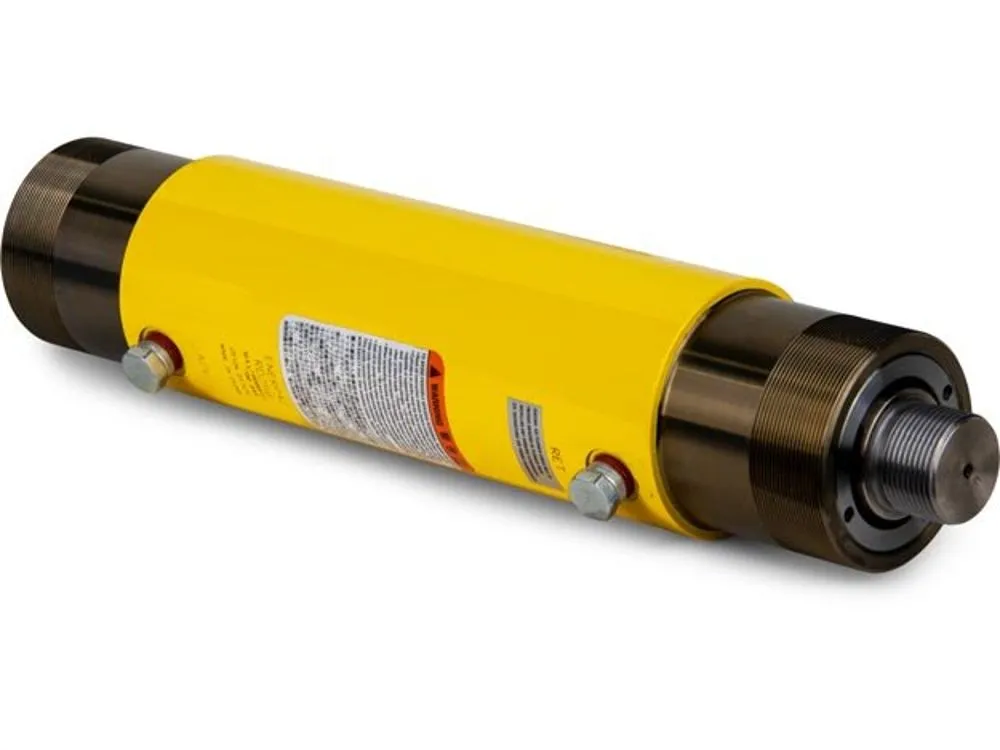

RD256 | 6 1/4" | 16.69" | 25 ton. | 3.63" | 2 1/2" | 1.13" | 1" | 3 1/2" | €7,955.69 | |
 |

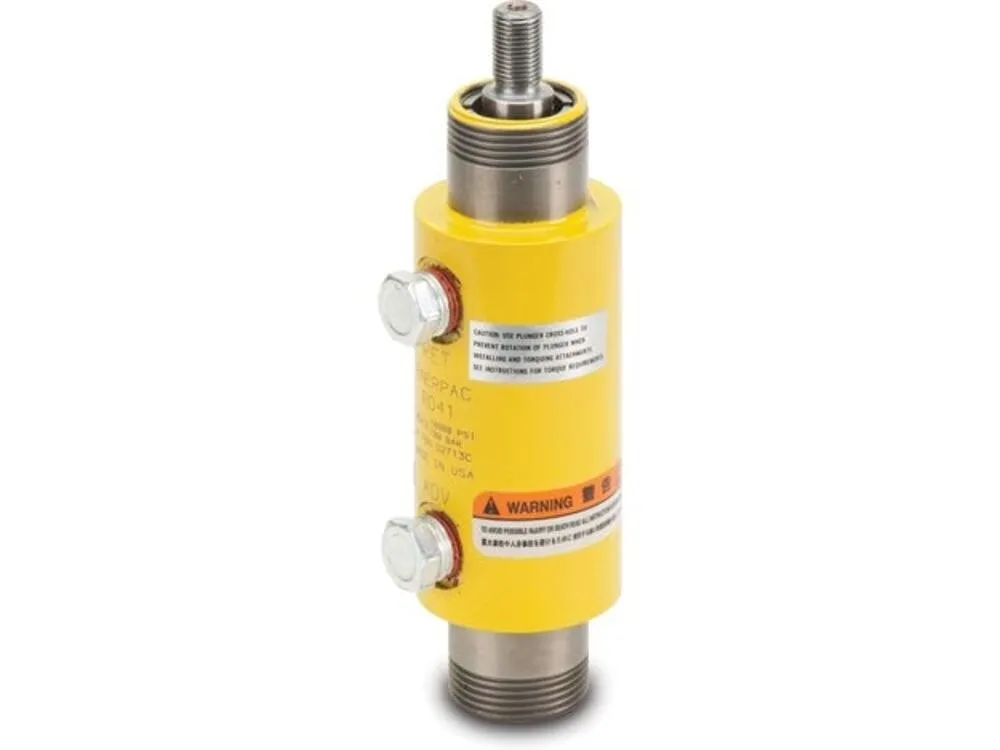

RD41 | 1 1/8" | 7.31" | 4 ton. | 2" | 1" | 11/25" | 3/4" | 1 22/25" | €2,276.63 | |
 |

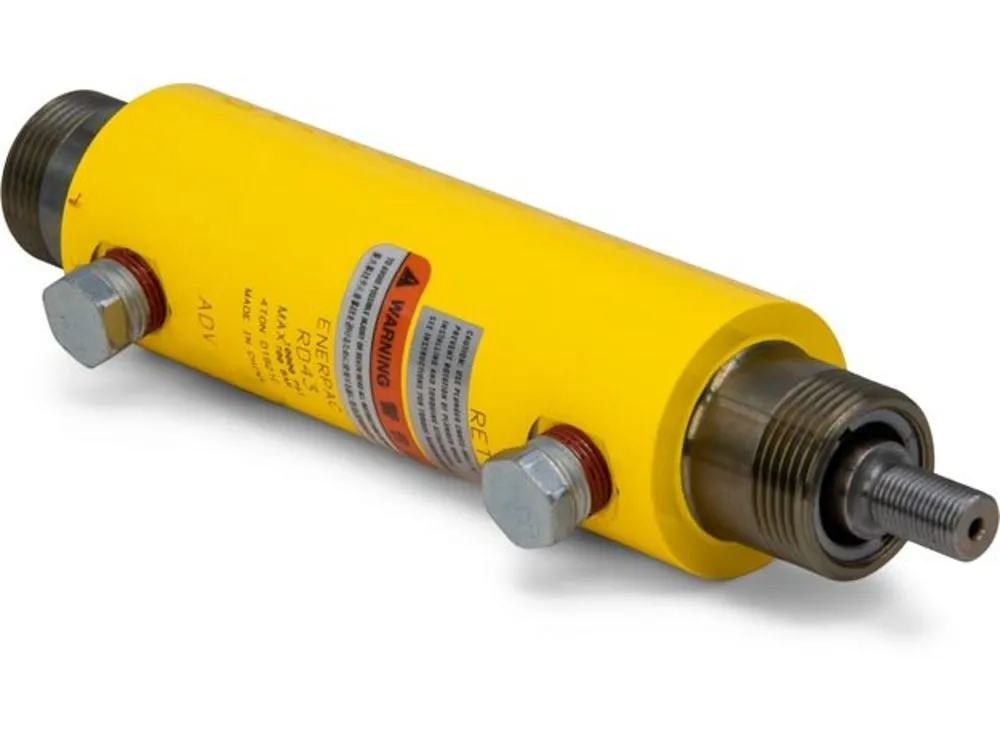

RD43 | 3 1/8" | 9.31" | 4 ton. | 2" | 1" | 11/25" | 3/4" | 1 22/25" | €2,824.87 | |
 |

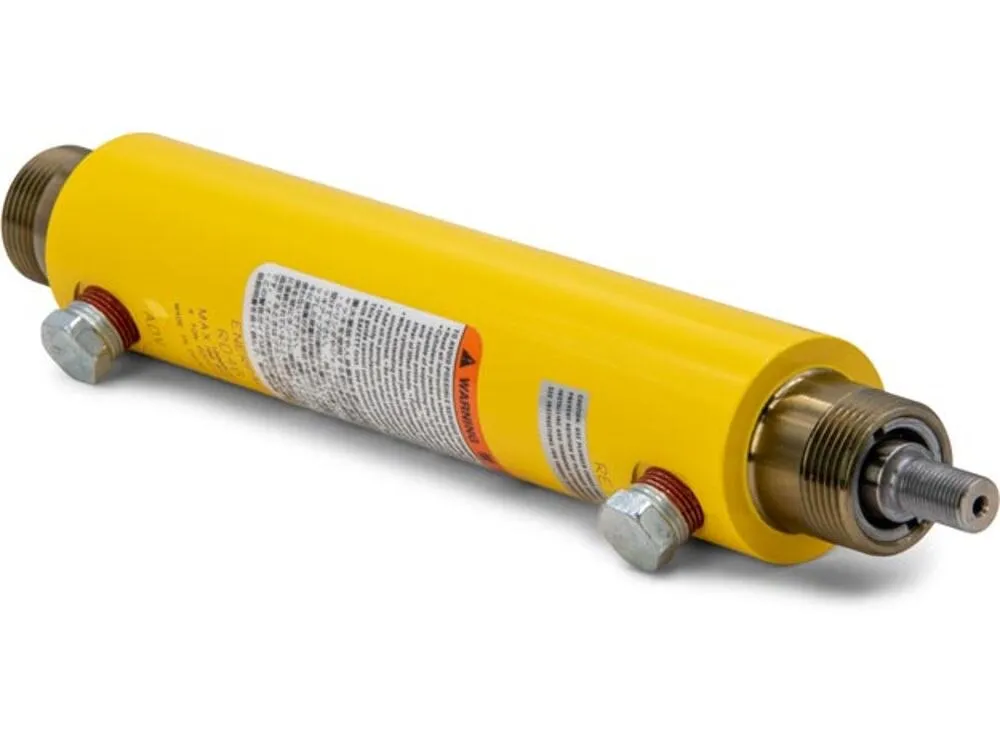

RD46 | 6.13" | 12.31" | 4 ton. | 2" | 1" | 11/25" | 3/4" | 1 22/25" | €2,827.47 |
