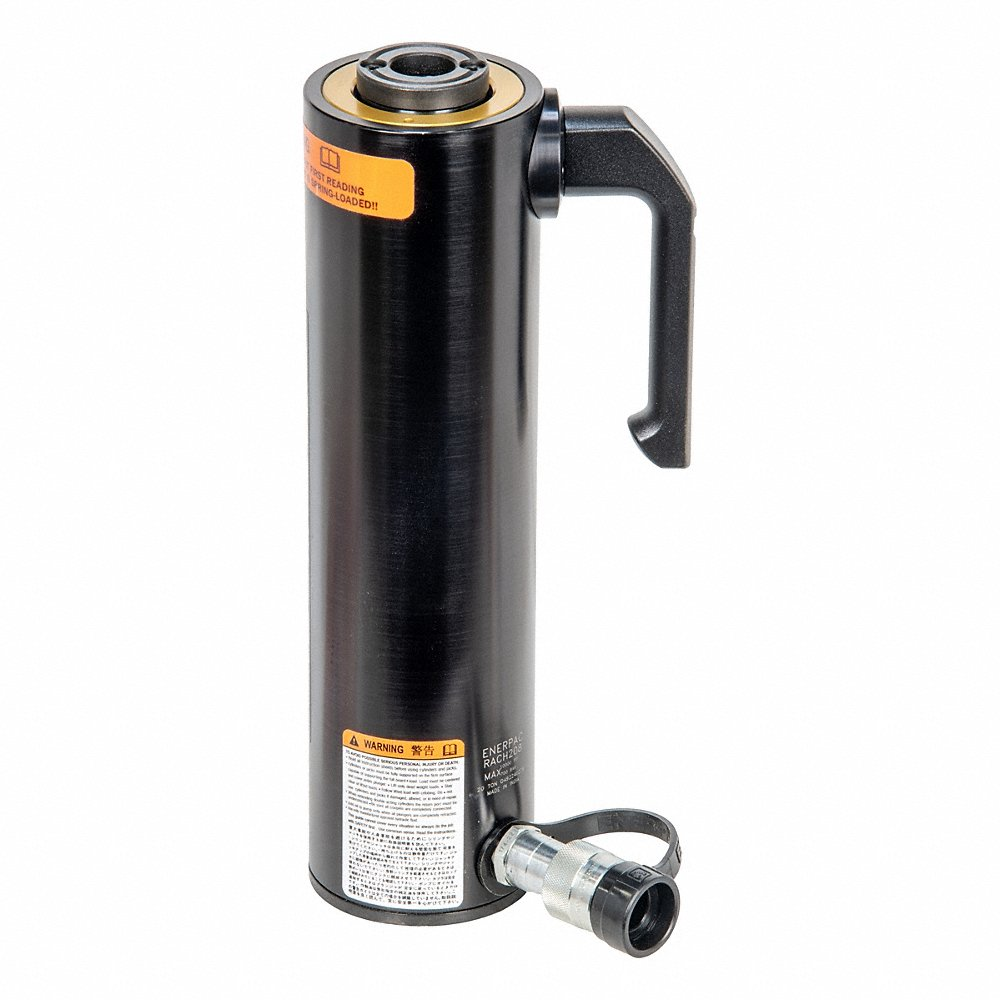

ENERPAC RACH208 Cylinder, 20 Ton, 8 Inch, Hollow, Aluminum
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€9,001.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Capacity Class (tonnage) | Class 20 |
| Collapsed Height A | 14.89" |
| Collapsed Height A (mm) | 378 mm |
| Material | Aluminum |
| Max. Cylinder Capacity Advance (short Tons) | 25.4 ton. |
| Maximum Cylinder Capacity Advance (kn) | 229 kN |
| Maximum Operating Pressure (psi) | 10000 psi |
| Oil Capacity Advance | 39.87 cu. in. |
| Oil Capacity Advance (cm3) | 654 cu. cm |
| Plunger Type | Hollow |
| Product Datasheet | enerpac-rach208.pdf |
| Promotion Restriction | Not Eligible For Promotion |
| Return Type | Single-Acting, Spring Return |
| Stroke | 7.87" |
| Stroke (mm) | 200 mm |
| Surface Treatment | Anodized |
Shipping Info:
| Ship weight (kg) | 8.61 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 58.42 |
| Ship width (cm) | 17.78 |
| Country of Origin | IN |
Documentation:
Product Variants
| Product | Model | Stroke Length | Retracted Height | Max. Cylinder Capacity Advance | Weighing Capacity | Oil Capacity | Outside Dia. | Saddle Protrusion From Plunger | Bolt Circle Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
RACH1006 | 5 7/8" | 15.4" | - | 100 ton. | - | 9 21/25" | - | 9.05" | €25,107.45 | |
 |
RACH202 | 1 7/8" | 7.41" | - | 20 ton. | 9.98 cu. in. | 3.94" | 2/5" | - | €5,912.48 | |
 |
RACH206 | 5 7/8" | 12.41" | - | 20 ton. | 29.94 cu. in. | 3.94" | 2/5" | 3.15" | €7,575.39 | |
 |
RACH302 | 1 7/8" | 8.2" | - | 30 ton. | 15.59 cu. in. | 5 3/25" | 2/5" | 4.33" | €7,110.23 | |
 |
RACH306 | 5 7/8" | 13.12" | - | 30 ton. | 46.77 cu. in. | 5 3/25" | 2/5" | 4.33" | €8,951.79 | |
|
RACH604 | 3 7/8" | 12.41" | - | 60 ton. | 51.69 cu. in. | - | 0.47" | - | €12,746.14 | |
|
RACH606 | 5 7/8" | 14.97" | - | 60 ton. | 77.53 cu. in. | 7.09" | 0.47" | 6.29" | €13,515.77 |
