ENERPAC RACH Hollow Plunger Hydraulic Cylinders


Enerpac RACH Series hollow plunger hydraulic cylinders are suitable for tensioning, lifting, pulling and testing applications with precise control of cylinder retraction. These hollow hydraulic rams are connected to hydraulic pumps to exert high forces for supporting or moving workpieces.

Filter
ENERPAC RACH608A
ENERPAC RACH308B

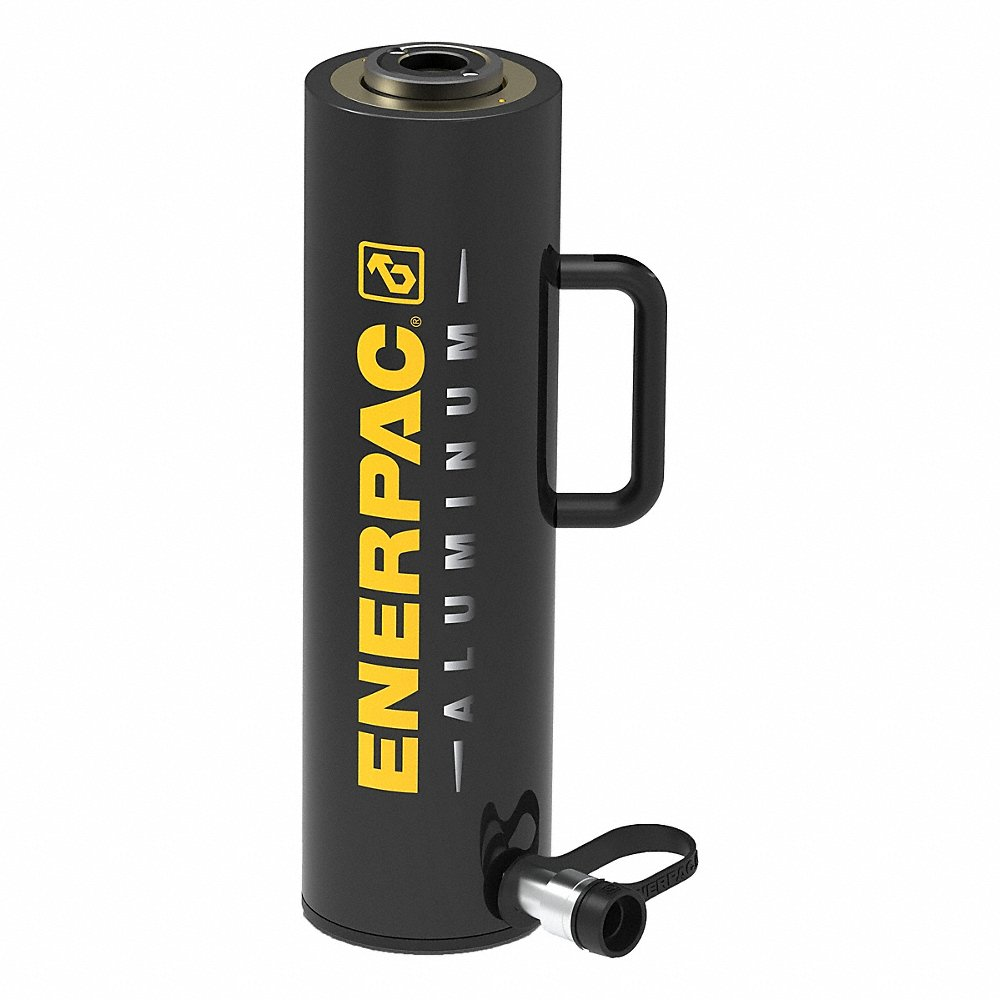

ENERPAC RACH304C
ENERPAC RACH3010D
ENERPAC RACH208E

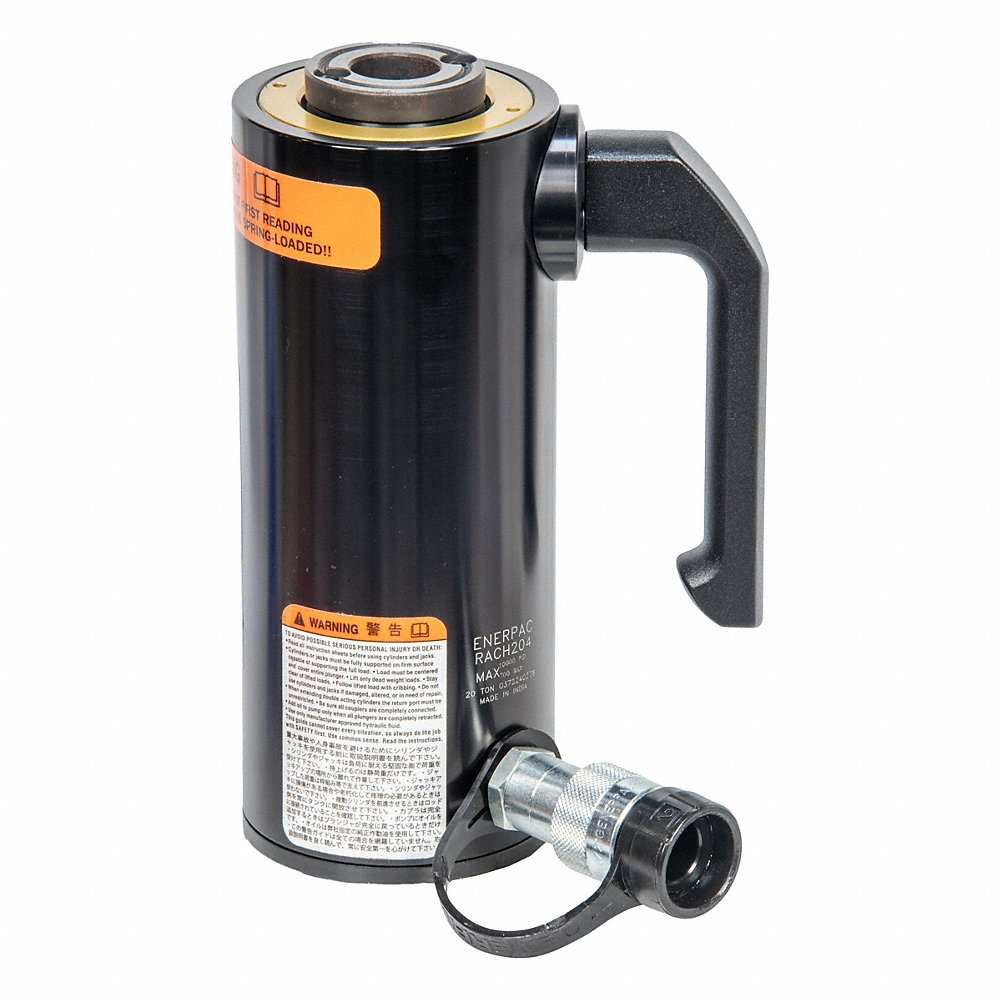

ENERPAC RACH204F
ENERPAC RACH2010G

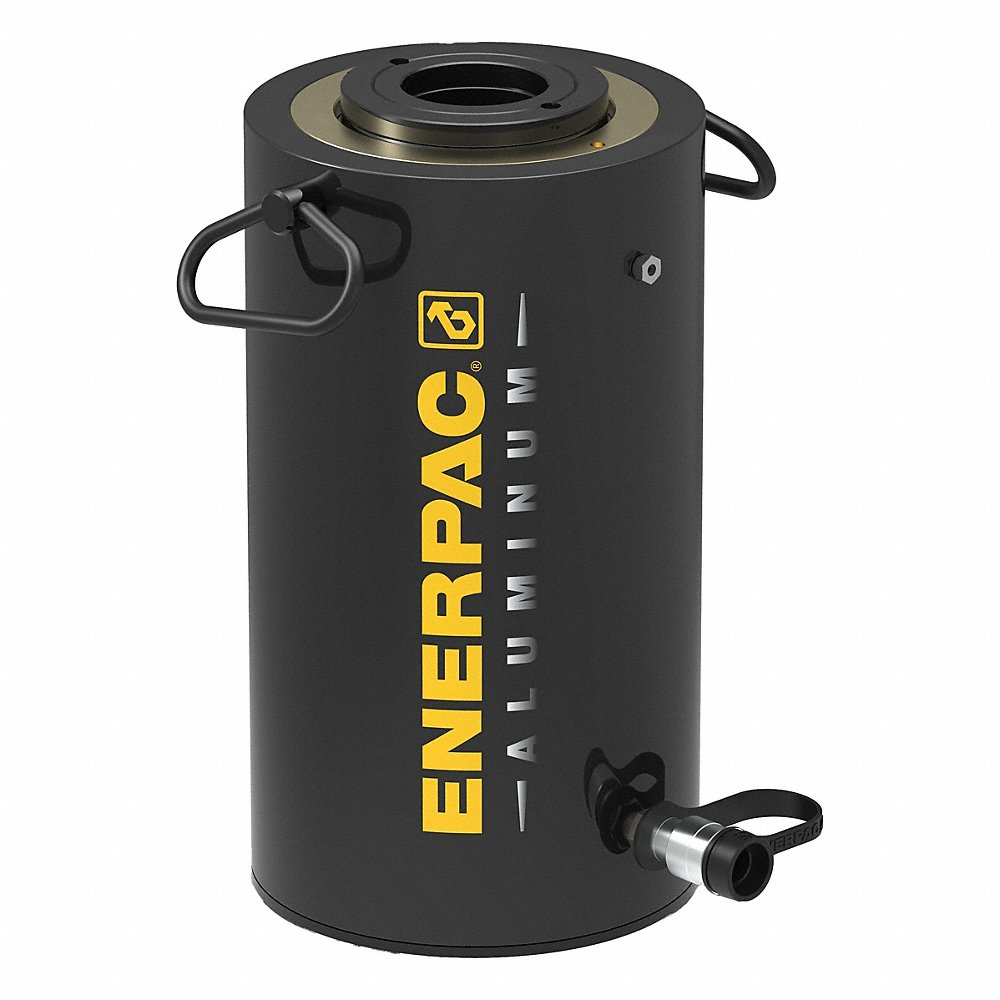

ENERPAC RACH1008H
ENERPAC RACH202I
ENERPAC RACH302J
ENERPAC RACH206K
StyleModelStroke LengthMax. Cylinder Capacity AdvanceCollapsed Height AExtended Height BOil Capacity Advance (cm3)Oil Capacity AdvanceCenter Hole Dia. YStrokePrice
A
RACH608		-65.6 ton.17.52"25.4"1694 cu. cm103.37 cu. in.2.13"7.87"€14,293.28
A
RACH1504		-175 ton.360 mm18.12"2258 cu. cm132.17 cu. in.79 mm100 mm€14,101.77
A
RACH602		-65.6 ton.9.89"11.86"423 cu. cm25.84 cu. in.2.13"50 mm€8,703.14
A
RACH6010		-65.6 ton.20.09"29.93"2117 cu. cm129.21 cu. in.2.13"9 21/25"€15,580.02
B
RACH308		-39.6 ton.15.56"23.43"1022 cu. cm62.35 cu. in.1.34"7.87"€8,545.10
C
RACH304		-39.6 ton.10.52"14.46"511 cu. cm31.18 cu. in.1.34"100 mm€6,779.10
D
RACH3010		-39.6 ton.18.04"27.88"1277 cu. cm77.94 cu. in.1.34"9 21/25"€9,298.30
E
RACH208		-25.4 ton.14.89"22.76"654 cu. cm39.87 cu. in.27 mm7.87"€6,529.18
F
RACH204		-25.4 ton.9.89"13.83"327 cu. cm19.96 cu. in.27 mm100 mm€5,680.19
G
RACH2010		-25.4 ton.17.41"27.25"818 cu. cm49.9 cu. in.27 mm9 21/25"€6,157.65
A
RACH1508		-175 ton.19.69"27.57"4517 cu. cm275.62 cu. in.79 mm7.87"€36,376.23
A
RACH1506		-175 ton.16.93"22.84"3387 cu. cm206.72 cu. in.79 mm5.91"€17,128.04
A
RACH1502		-175 ton.11.03"13"1129 cu. cm66.08 cu. in.79 mm50 mm€11,077.58
A
RACH15010		-175 ton.22.45"32.29"5646 cu. cm344.53 cu. in.79 mm9 21/25"€26,222.50
H
RACH1008		-127.5 ton.18.08"25.95"3291 cu. cm200.85 cu. in.79 mm7.87"€24,078.33
A
RACH1004		-127.5 ton.12.8"16.74"1646 cu. cm100.43 cu. in.79 mm100 mm€20,655.48
A
RACH1002		-127.5 ton.10.16"12.13"823 cu. cm50.21 cu. in.79 mm50 mm€19,214.65
A
RACH10010		-127.5 ton.20.76"777 mm4114 cu. cm251.07 cu. in.79 mm9 21/25"€25,924.54
I
RACH202		1 7/8"-------€4,418.89
J
RACH302		1 7/8"-------€5,243.14
A
RACH604		3 7/8"-------€9,389.30
A
RACH606		5 7/8"-------€9,573.04
G
RACH306		5 7/8"-------€6,110.32
K
RACH206		5 7/8"-------€5,575.73
A
RACH1006		5 7/8"-------€18,271.92

Features

  • Enerpac RACH hollow plunger hydraulic cylinders feature an aluminium body for lightweight and corrosion resistance.
  • They are fitted with removable hardened steel hollow saddles and steel base plates to sustain loads and prevent damage to the plunger and threads.
  • These hollow hydraulic rams come with floating centre tubes to withstand high pressures and temperatures for long seal life.
  • They are equipped with handles for easy carrying.
  • These hydraulic rams further feature return springs having high strength for rapid cylinder retraction.
  • They have a load capacity ranging from 20 to 150 tons.
  • These hydraulic rams further feature integral stop rings to resist the over-travel of the plunger.
  • They have composite bearings for increased side load resistance and long cylinder life.

Standards and Approvals

  • ASME B-30.1
  • ISO 10100

Frequently Asked Questions

What accessories are included in Enerpac RACH Series hollow plunger hydraulic cylinders?

They come included with a dust cap & CR-400 coupler.

What is the maximum operating pressure of these hydraulic cylinder rams?

These hollow hydraulic rams can be operated up to 10000 PSI pressures.
