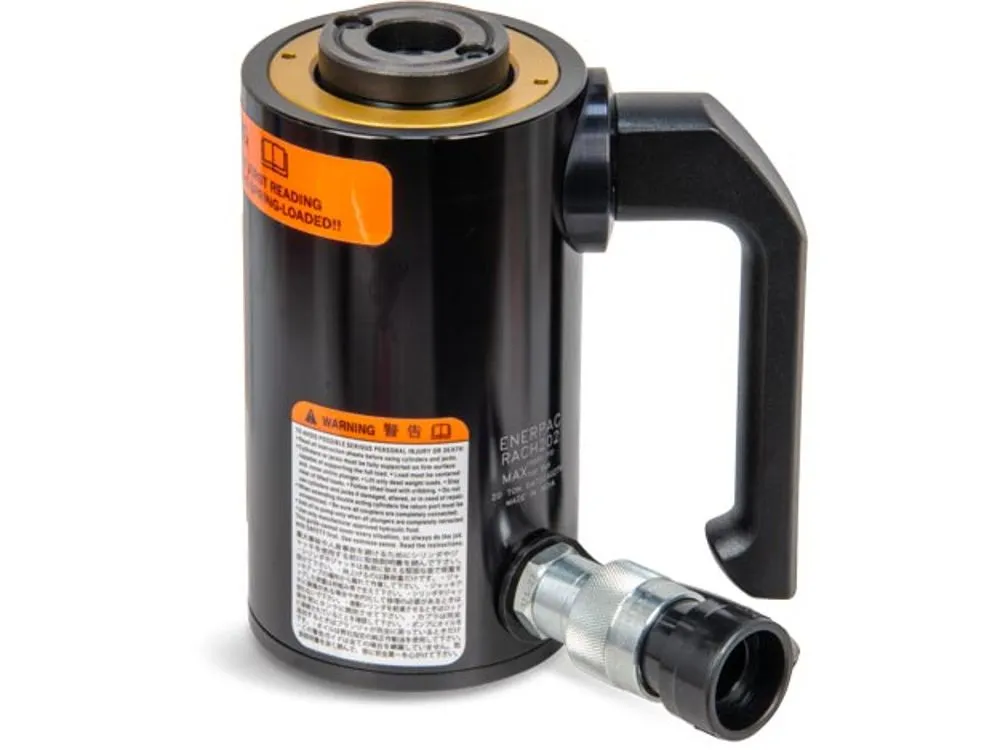

ENERPAC RACH202 Hollow Plunger Hydraulic Cylinder, 20 Ton, 1-31/32 Inch Stroke Length
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€5,321.23 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Base Bolt Circle Dia. | 3.15" |
| Base Mounting Thread Size | M6 |
| Body Material | Aluminum |
| Center Hole Dia. | 1.06" |
| Collapsed Height | 7.41" |
| Cylinder Type | Hollow Plunger |
| Effective Push Area | 5.07 sq. in. |
| Extended Height | 9.37" |
| Extended Height | 9.38" |
| Finish | Anodized |
| Handle | Yes |
| Includes | Coupler, Dust Cap |
| Material | Aluminum |
| Max. Operating Pressure | 10000 psi |
| Max. Push Capacity | 20 ton. |
| Nominal Capacity | 20 ton. |
| Nominal Stroke Length | 2" |
| Oil Capacity | 9.98 cu. in. |
| Oil Capacity Push | 9.98 cu. in. |
| Outside Dia. | 3.94" |
| Plunger Dia. | 2.17" |
| Plunger Type | Hollow |
| Product Datasheet | enerpac-rach202.pdf |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 7.41" |
| Saddle Diameter | 2.17" |
| Saddle Protrusion From Plunger | 2/5" |
| Series | RACH Series |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 1 7/8" |
| Weighing Capacity | 20 ton. |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 30.48 |
| HS code | 8425420000 |
| Country of Origin | IN |
Documentation:
Product Variants
| Product | Model | Stroke Length | Retracted Height | Max. Cylinder Capacity Advance | Weighing Capacity | Oil Capacity | Outside Dia. | Saddle Protrusion From Plunger | Bolt Circle Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

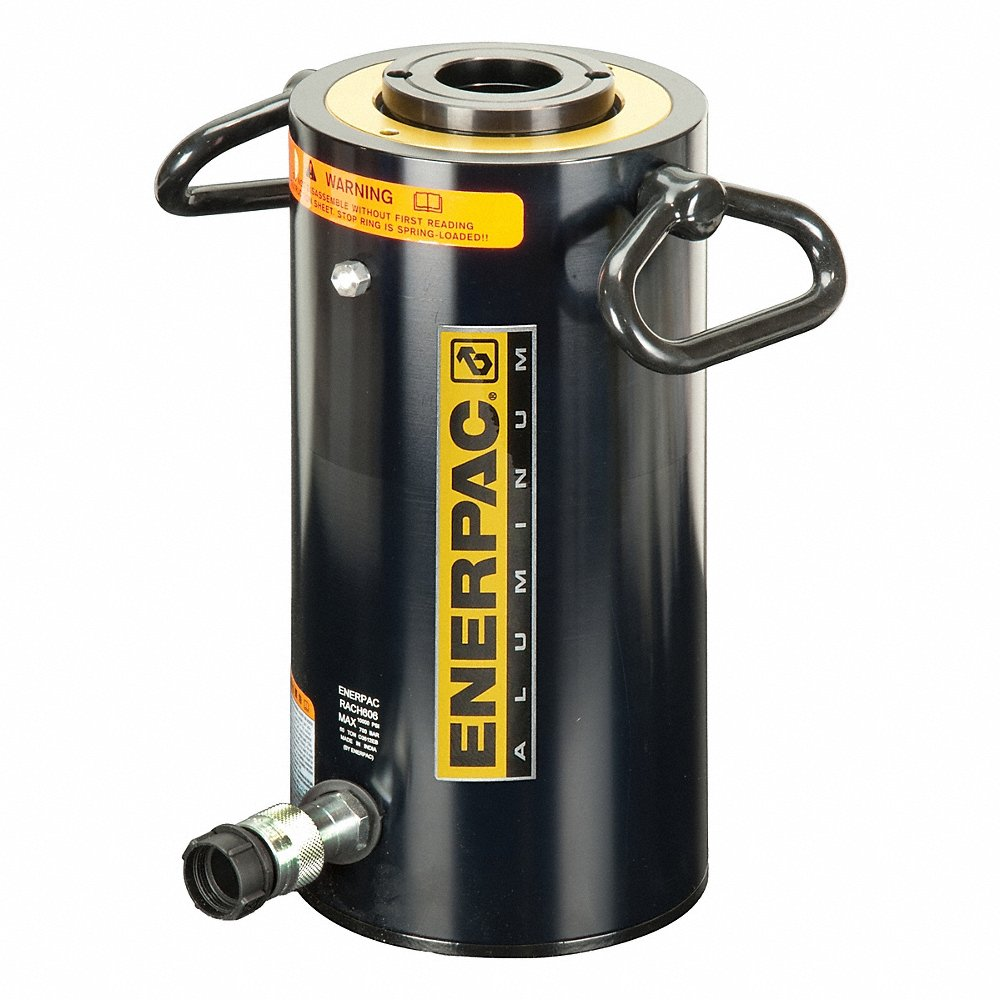

RACH1006 | 5 7/8" | 15.4" | - | 100 ton. | - | 9 21/25" | - | 9.05" | €25,107.45 | |
 |

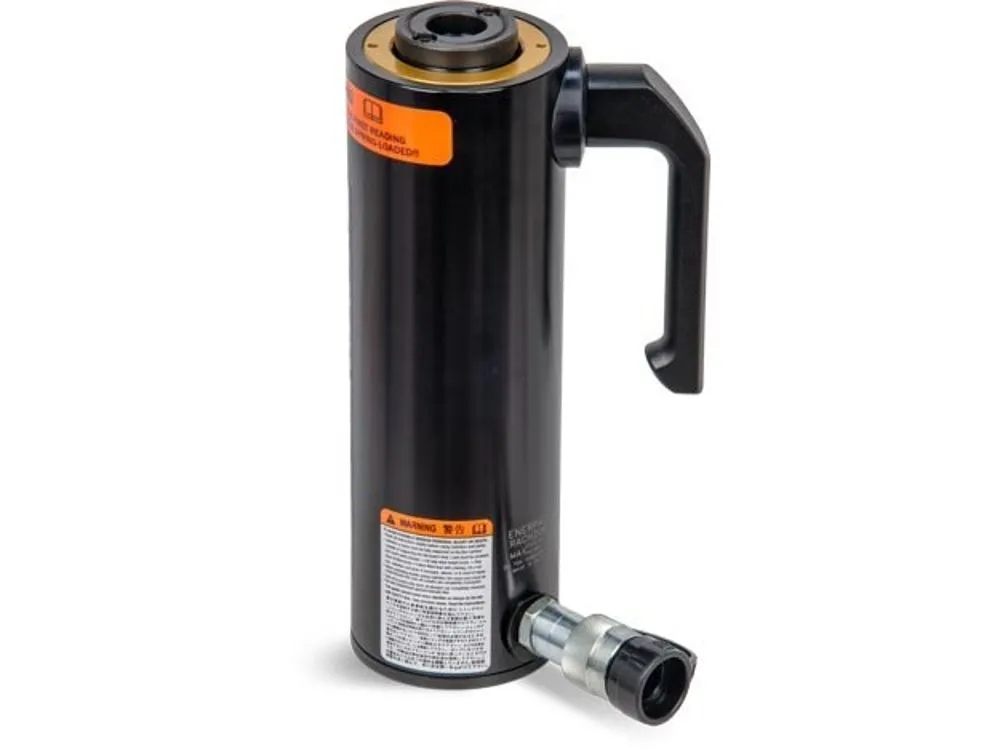

RACH206 | 5 7/8" | 12.41" | - | 20 ton. | 29.94 cu. in. | 3.94" | 2/5" | 3.15" | €7,575.39 | |
 |
RACH302 | 1 7/8" | 8.2" | - | 30 ton. | 15.59 cu. in. | 5 3/25" | 2/5" | 4.33" | €7,110.23 | |
 |

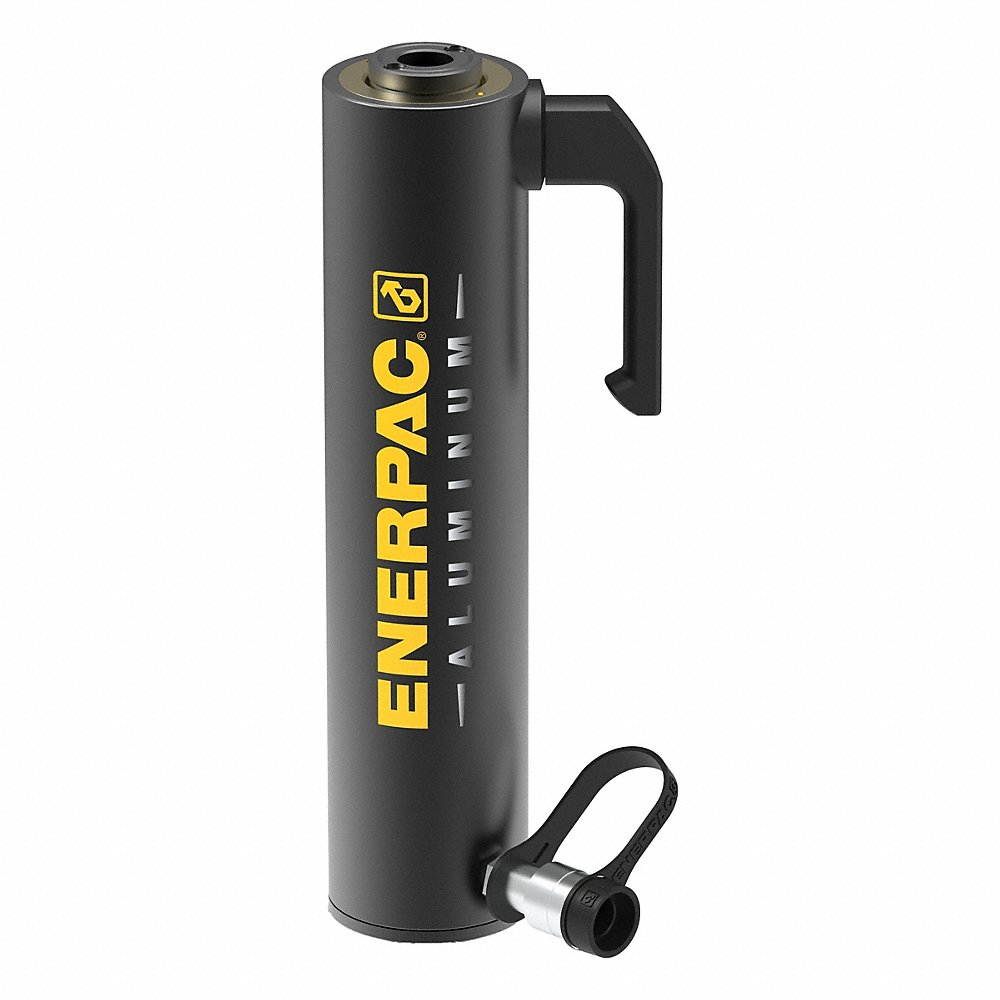

RACH306 | 5 7/8" | 13.12" | - | 30 ton. | 46.77 cu. in. | 5 3/25" | 2/5" | 4.33" | €8,951.79 | |
|
RACH604 | 3 7/8" | 12.41" | - | 60 ton. | 51.69 cu. in. | - | 0.47" | - | €12,746.14 | |
|
RACH606 | 5 7/8" | 14.97" | - | 60 ton. | 77.53 cu. in. | 7.09" | 0.47" | 6.29" | €13,515.77 | |
|
RACH10010 | - | - | 127.5 ton. | - | - | - | - | - | €39,712.84 |
