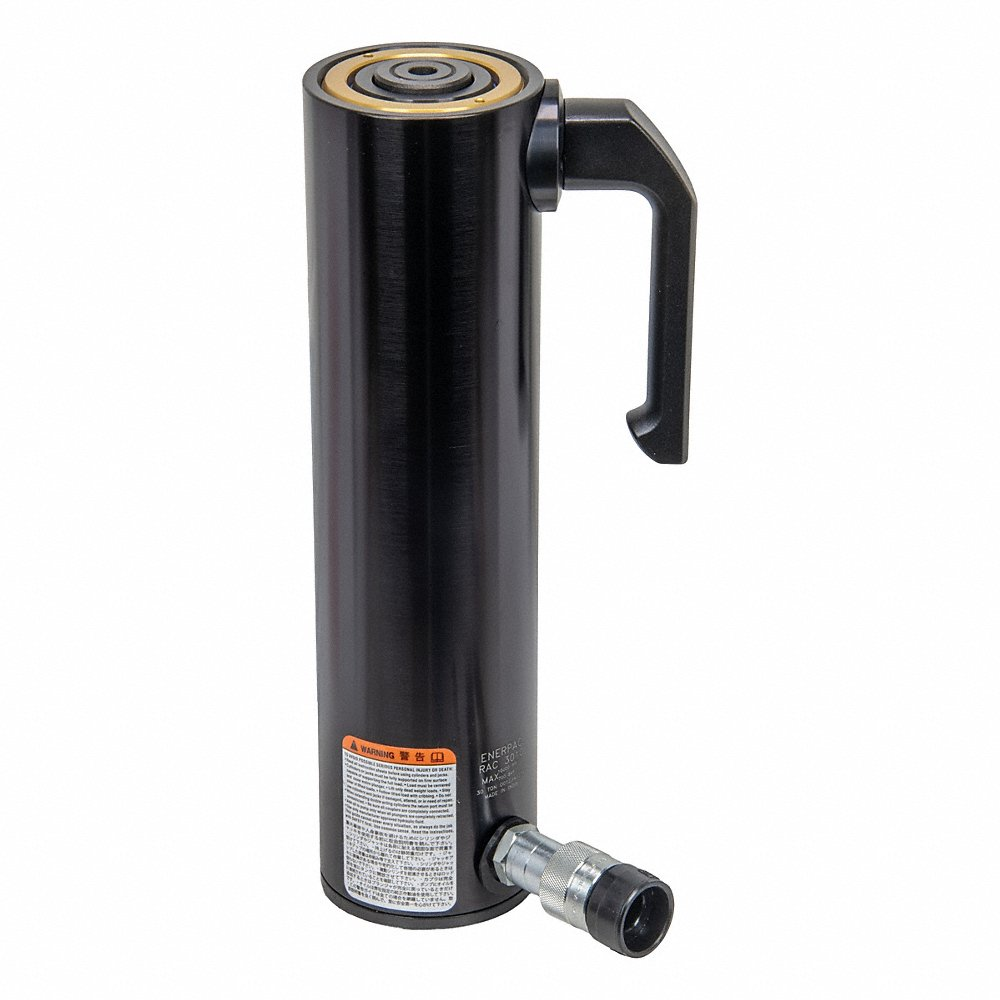

ENERPAC RAC3010 Cylinder, Single Acting, 30 ton Nominal Capacity, 9 13/16 In Nominal Stroke Lg, Aluminium
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€3,604.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Capacity Class | 30 ton. |
| Collapsed Height A | 15.01" |
| Cylinder Effective Area Advance | 44.2 sq. cm , 6.85 sq. in. |
| Extended Height B | 24.85" , 631 mm |
| Material | Aluminum |
| Max. Cylinder Capacity Advance | 309 kN , 34.2 ton. |
| Max. Cylinder Capacity Advance (short Tons) | 34.2 ton. |
| Max. Operating Pressure | 10000 psi |
| Oil Capacity Advance | 67.4 cu. in. |
| Oil Capacity Advance (cm3) | 1105 cu. cm |
| Plunger Type | Solid |
| Product Datasheet | enerpac-rach1006.pdf |
| Return Type | Single-Acting, Spring Return |
| Stroke | 250 mm , 9 21/25" , 9.84" |
| Surface Treatment | Anodized |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 58.42 |
| Ship width (cm) | 17.78 |
| Country of Origin | IN |
Documentation:
Product Variants
| Product | Model | Max. Cylinder Capacity Advance | Collapsed Height A | Extended Height B | Oil Capacity Advance (cm3) | Max. Cylinder Capacity Advance (short Tons) | Stroke | Cylinder Effective Area Advance | Oil Capacity Advance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

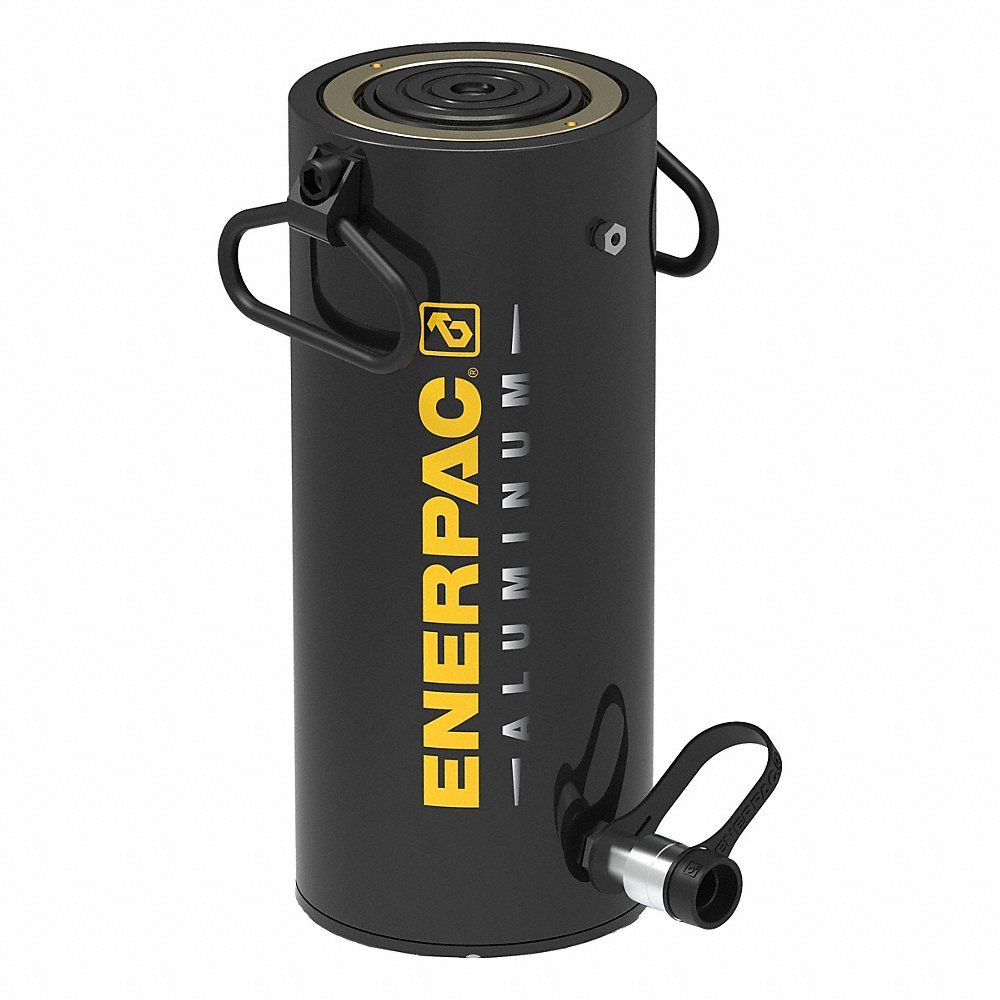

RAC10010 | 1002 kN | 16.58" | 26.43" | 3578 cu. cm | 110.9 ton. | 9 21/25" | 143.1 sq. cm | 218.35 cu. in. | €12,332.69 | |
 |

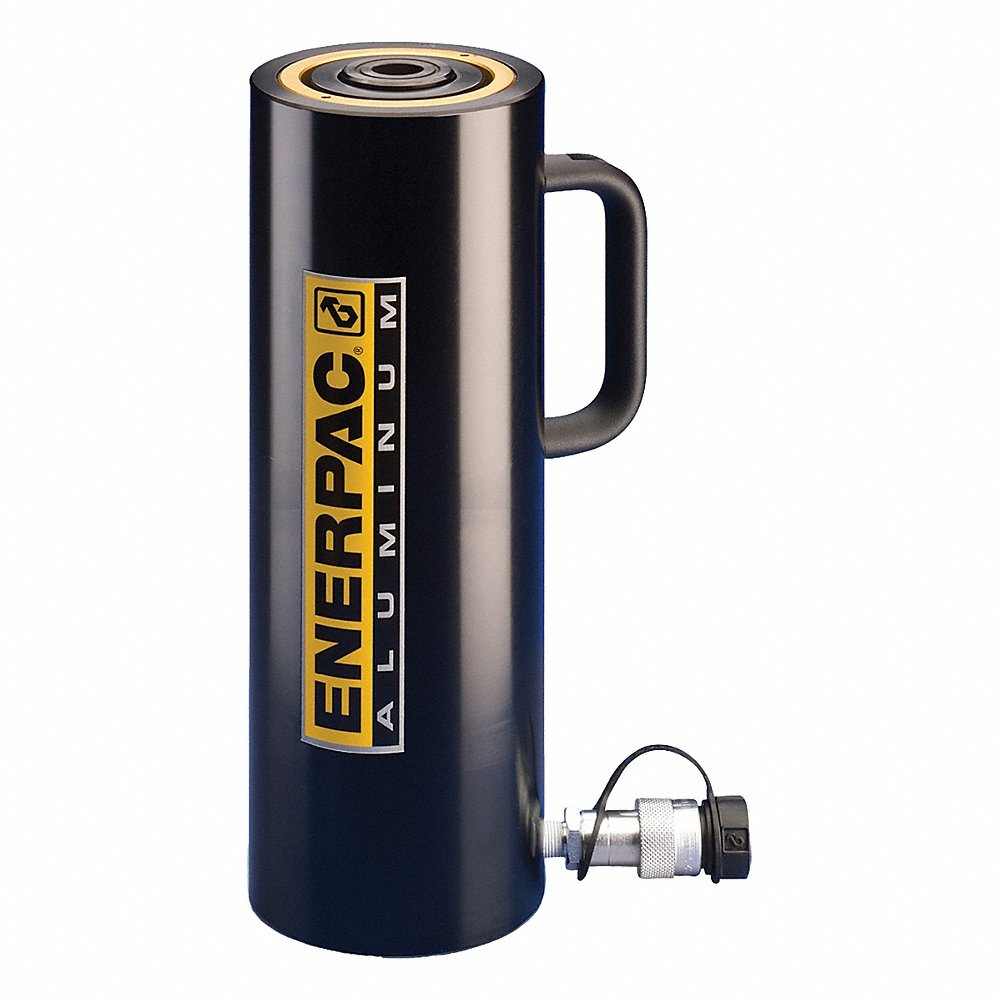

RAC1002 | 1002 kN | 8.71" | 10.68" | 715 cu. cm | 110.9 ton. | 50 mm | 143.1 sq. cm | 43.71 cu. in. | €5,929.90 | |
 |

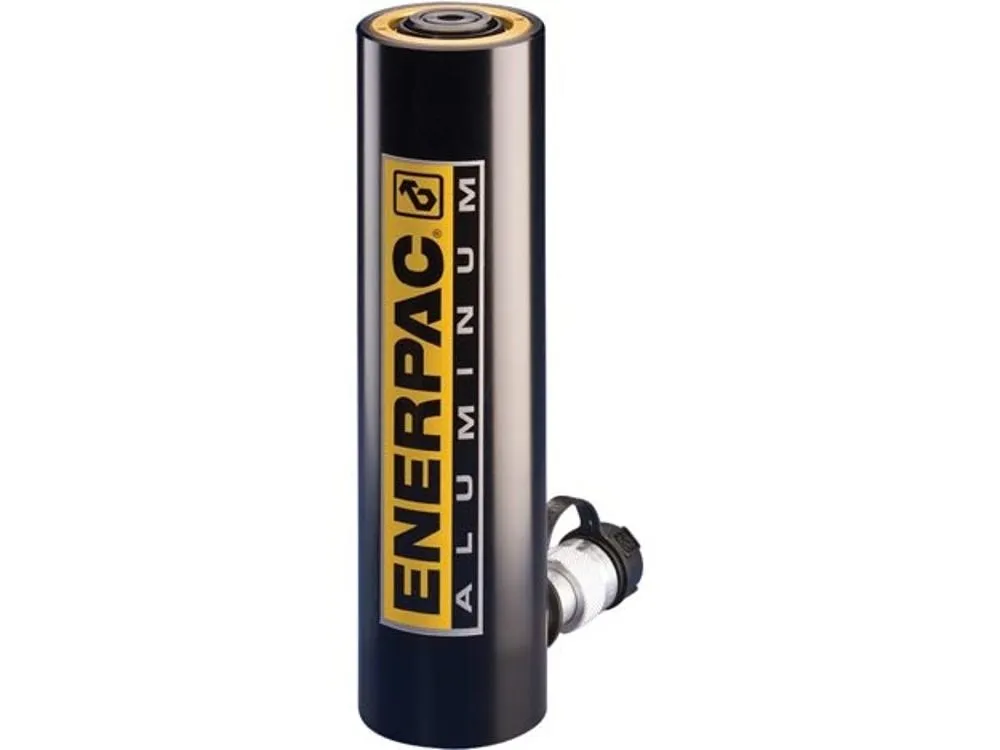

RAC102 | 88 kN | 154 mm | 7.91" | 60 cu. cm | 9.9 ton. | 50 mm | 12.6 sq. cm | - | €1,348.49 | |
|
RAC104 | 88 kN | 8.03" | 11.97" | 130 cu. cm | 9.9 ton. | 100 mm | 12.6 sq. cm | 7.93 cu. in. | €1,472.50 | |
|
RAC106 | 88 kN | 254 mm | 404 mm | 190 cu. cm | 9.9 ton. | 5.91" | 12.6 sq. cm | 11.59 cu. in. | €1,600.67 | |
 |
RAC15010 | 1589 kN | 17.44" | 27.28" | 5675 cu. cm | 175.9 ton. | 9 21/25" | 227 sq. cm | 346.17 cu. in. | €11,312.06 | |
|
RAC1502 | 1589 kN | 9.56" | 11.53" | 1135 cu. cm | 175.9 ton. | 50 mm | 227 sq. cm | - | €9,648.86 |
