ENERPAC RAC Series Single Acting Lightweight Hydraulic Cylinders


Enerpac RAC Series single acting hydraulic cylinders are ideal for high-force lifting, pushing, pulling, bending and holding applications.

Filter
ENERPAC RAC308A

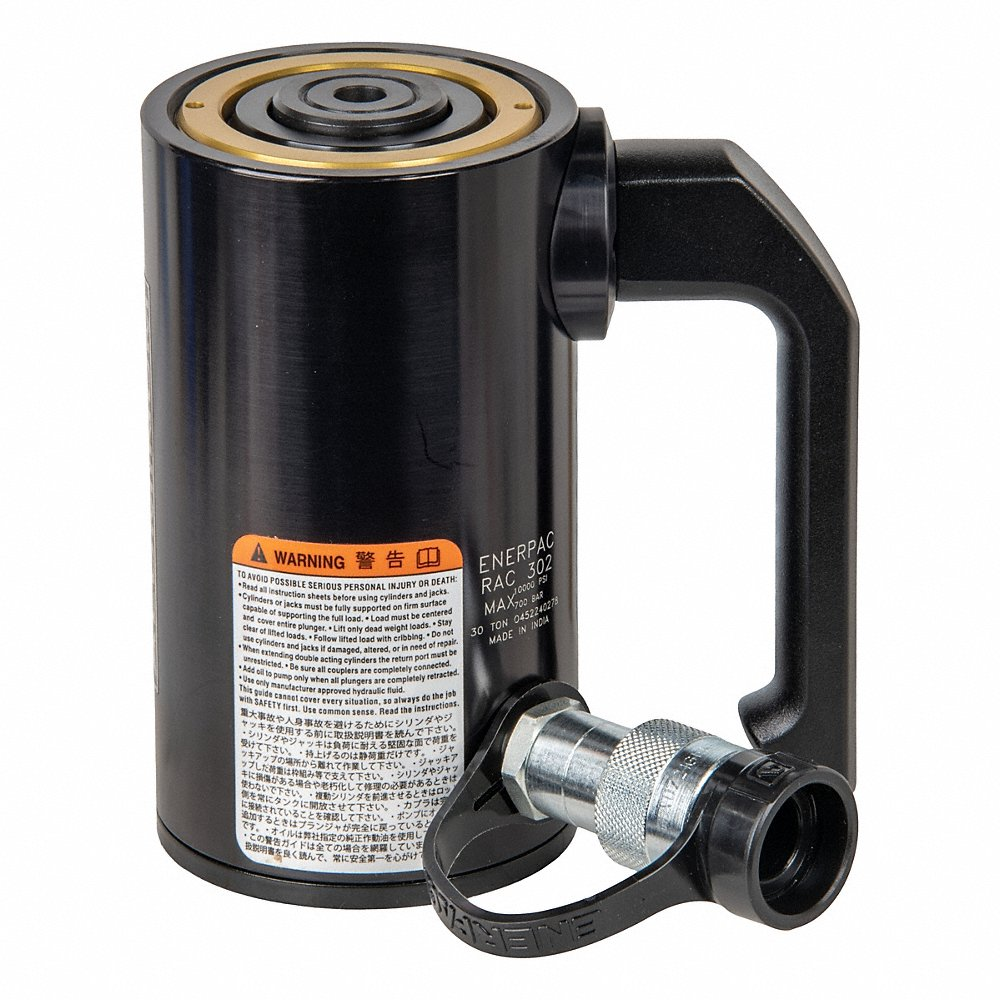

ENERPAC RAC302B

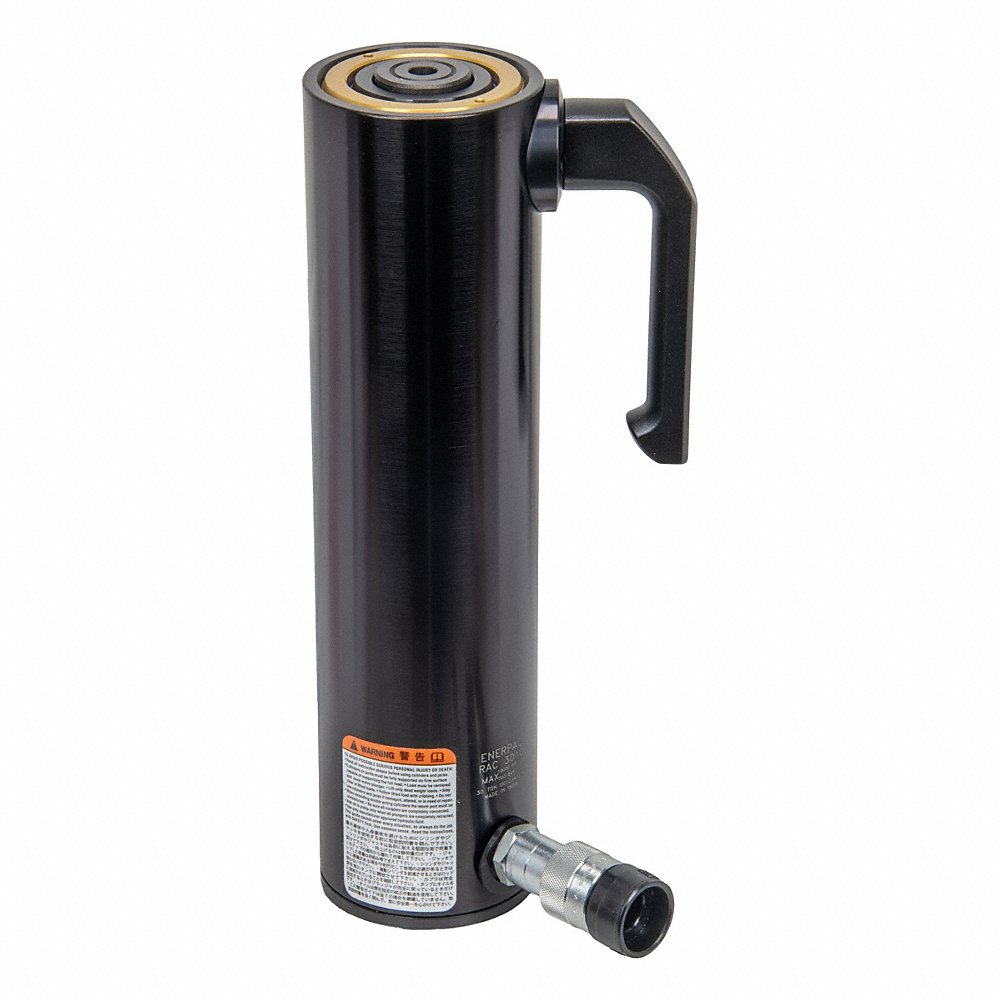

ENERPAC RAC3010C

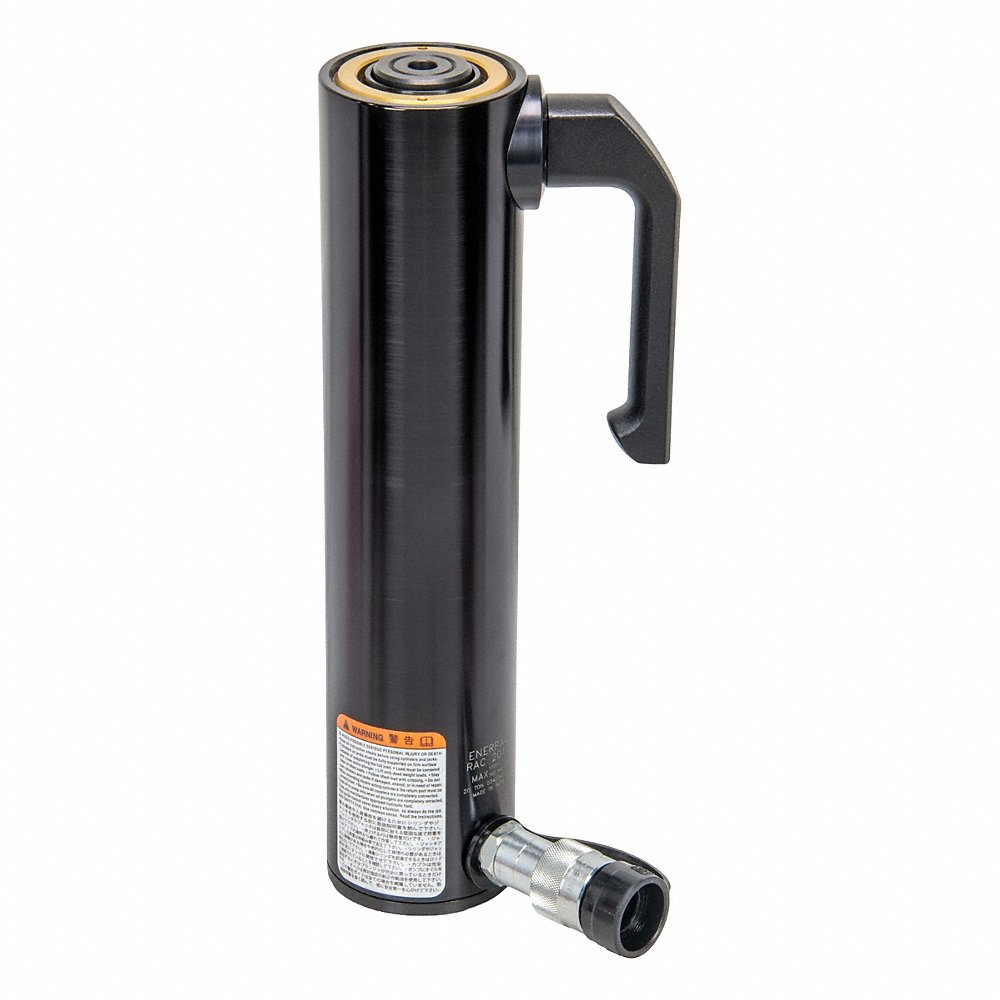

ENERPAC RAC2010D
ENERPAC RAC5010E

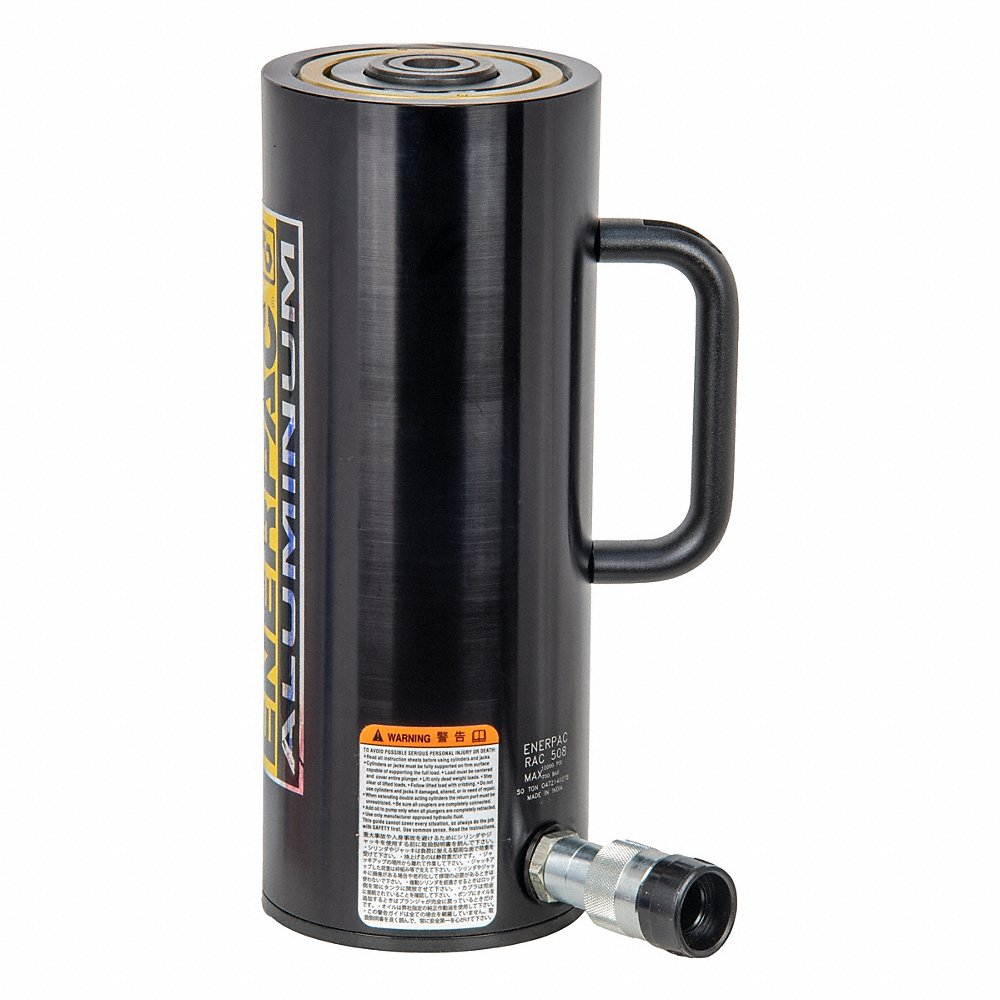

ENERPAC RAC508F
ENERPAC RAC10010G
ENERPAC RAC1508H
StyleModelMax. Cylinder Capacity AdvanceCollapsed Height AExtended Height BOil Capacity Advance (cm3)Max. Cylinder Capacity Advance (short Tons)StrokeCylinder Effective Area AdvanceOil Capacity AdvancePrice
A
RAC308		34.2 ton.13.04"20.91"884 cu. cm34.2 ton.7.87"44.2 sq. cm53.91 cu. in.€2,713.64
B
RAC302		34.2 ton.7.13"9.1"221 cu. cm34.2 ton.50 mm44.2 sq. cm13.49 cu. in.€3,397.32
C
RAC3010		34.2 ton.15.01"24.85"1105 cu. cm34.2 ton.9 21/25"44.2 sq. cm67.4 cu. in.€4,142.81
A
RAC102		88 kN154 mm7.91"60 cu. cm9.9 ton.50 mm12.6 sq. cm-€1,348.49
A
RAC104		88 kN8.03"11.97"130 cu. cm9.9 ton.100 mm12.6 sq. cm7.93 cu. in.€1,472.50
A
RAC106		88 kN254 mm404 mm190 cu. cm9.9 ton.5.91"12.6 sq. cm11.59 cu. in.€1,600.67
A
RAC152		137 kN6.34"8.31"100 cu. cm15.4 ton.50 mm19.6 sq. cm-€1,585.04
A
RAC154		137 kN8.31"12.24"200 cu. cm15.4 ton.100 mm19.6 sq. cm-€1,733.02
A
RAC156		137 kN10.28"16.18"290 cu. cm15.4 ton.5.91"19.6 sq. cm17.69 cu. in.€1,881.00
D
RAC2010		218 kN14.73"24.58"780 cu. cm24.2 ton.9 21/25"31.2 sq. cm47.53 cu. in.€3,852.59
A
RAC208		218 kN12.76"20.64"624 cu. cm24.2 ton.7.87"31.2 sq. cm38.01 cu. in.€2,415.60
E
RAC5010		496 kN15.21"636 mm1771 cu. cm54.9 ton.9 21/25"70.9 sq. cm108.14 cu. in.€5,568.93
F
RAC508		496 kN13.24"21.11"1417 cu. cm54.9 ton.7.87"70.9 sq. cm86.49 cu. in.€4,674.67
E
RAC1002		1002 kN8.71"10.68"715 cu. cm110.9 ton.50 mm143.1 sq. cm43.71 cu. in.€5,929.90
G
RAC10010		1002 kN16.58"26.43"3578 cu. cm110.9 ton.9 21/25"143.1 sq. cm218.35 cu. in.€12,332.69
H
RAC1508		1589 kN15.47"23.34"4540 cu. cm175.9 ton.7.87"227 sq. cm276.87 cu. in.€10,894.17
H
RAC1504		1589 kN11.53"15.47"2270 cu. cm175.9 ton.100 mm227 sq. cm138.61 cu. in.€10,063.61
H
RAC1502		1589 kN9.56"11.53"1135 cu. cm175.9 ton.50 mm227 sq. cm-€9,648.86
H
RAC15010		1589 kN17.44"27.28"5675 cu. cm175.9 ton.9 21/25"227 sq. cm346.17 cu. in.€11,312.06

Working Mechanism

  • Hydraulic fluid is supplied to the cylinder through a single port.
  • The fluid pressure creates force, pushing the piston in one direction.
  • This movement extends the cylinder, allowing it to push or lift objects.
  • Upon releasing the hydraulic pressure, an external force or spring returns the piston to its original position.

Features

  • Enerpac RAC Series single acting hydraulic cylinders have a maximum operating pressure of 10000 psi and are ASME B30.1 compliant.
  • These Enerpac single-acting hydraulic cylinders use liquid pumped through a single port for rod extension.
  • They are equipped with a pre-tensioned internal spring for better retraction speed to produce continuous movement.
  • These hydraulic cylinders feature a built-in stop ring to prevent the plunger from extending beyond the stroke length and a plunger wiper that reduces contamination in the cylinder.

Frequently Asked Questions

What mounting options do these Enerpac RAC Series single-acting hydraulic cylinders offer?

Yes, the cylinder can be used in both vertical and horizontal applications as long as it is properly mounted and supported.

What are the factors to consider while selecting a suitable Enerpac single-acting hydraulic cylinders for my application?

The hydraulic cylinder selection depends on factors such as the required force, stroke length and available operating pressure.

How to maintain Enerpac single-acting hydraulic cylinders?

  • Regularly inspect the cylinder for any signs of leaks or damage.
  • Keep the cylinder clean by removing dirt, debris, and contaminants.
  • Apply appropriate lubrication to ensure smooth operation of moving parts.
  • Check and maintain the hydraulic fluid level and quality.
