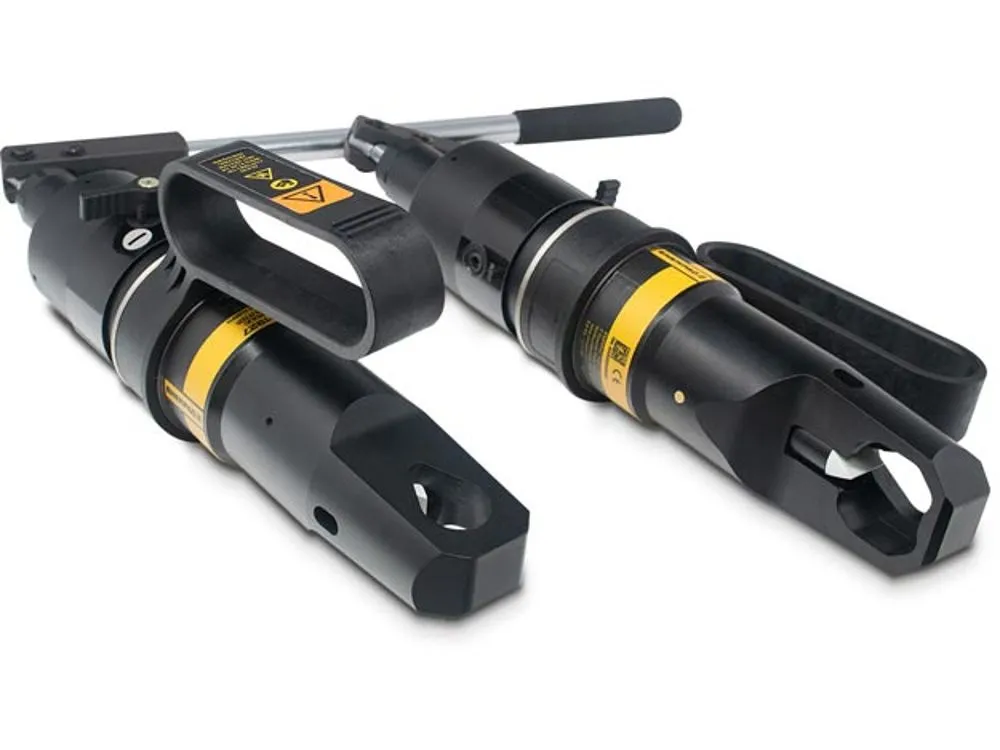

ENERPAC NSC1927 Nut Splitter, 19-27 mm, 12 Ton
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€3,934.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Nut Splitter |
| Application | Cut |
| Capacity | 12 ton. |
| Cutter Head Return Type | Single-Acting, Spring Return |
| Cutting Tip Service Kit Model No. | NSH1927CTK |
| Dimension A (in) | 13.9" |
| Dimension C (in) | 6" |
| Dimension H Max (in) | 0.71" |
| Dimension N Min (in) | 0.45" |
| Dimension S Max | 24/25" |
| Dimension T (in) | 1.04" |
| Dimension W Min (in) | 2.11" |
| Hex Size Range | 3/4" to 1 1/16" |
| Hexagon Nut Range (in) | 3/4" to 1.06" |
| Includes | Fsc1 Safety Lanyard, Set Of Hexagon Keys, Steel Cable With Carabiners |
| Maximum Material Hardness | Astm A194 Gr 2H |
| Nominal Capacity | 12 ton. |
| Oil Capacity | 2.8 cu. in. |
| Overall Height | 6" |
| Overall Length | 13.8" |
| Overall Width | 3 1/5" |
| Product Datasheet | enerpac-nc1924.pdf |
| Single Acting/double Acting | Single Acting |
| Weight | 12.8 lbs. |
Shipping Info:
| Ship weight (kg) | 6.35 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 35.05 |
| Ship width (cm) | 19.81 |
| Country of Origin | UK |
Documentation:
Product Variants
| Product | Model | Overall Length | Bolt Range | Capacity | Price | |
|---|---|---|---|---|---|---|
|
NSC2432 | 14.6" | 3/4" to 7/8" | 15 ton. | €5,564.26 |
