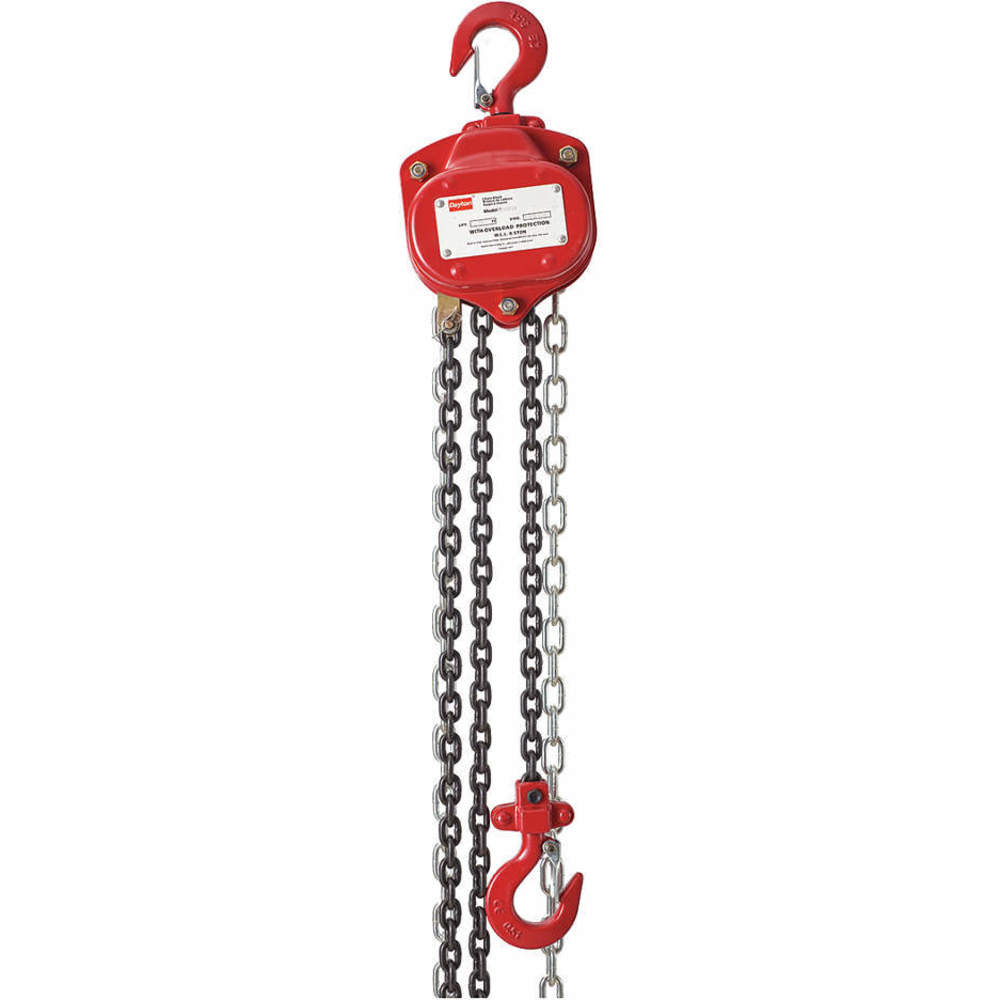

DAYTON 29XP27 Manual Chain Hoist 2000 lb Lift 10 feet
Get it by Wednesday, Dec 24
10.00% off
€743.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Manual Chain Hoist |
| Body Depth | 5 3/4" |
| Body Finish | Powder Coated |
| Body Material | Steel |
| Body Width | 6 3/16" |
| Brake Type | Double Disc Brake, Weston Style |
| Chain | Hardened Steel |
| Chain Finish | Black Tempered, Zinc Plated |
| Chain Grade | Grade 80 |
| Chain Length | 10-1/2 ft. |
| Chain Length | 10.5 ft. |
| Chain Material | Alloy Steel |
| Color | Red |
| Depth | 6" |
| Features | Never Needs Resetting Or Recalibrating, Over Load Limiter When Activated, Factory-Set Overload Protection Will Not Let Hoist Operate, But Will Allow Operators To Lower Loads (If Lifting) Or Release Load (If Pulling), Overload Protection Resets Itself, Slip Clutch The Standard Slip Clutch Device Helps Prevent The Hoist From Being Used To Lift Damaging Loads Beyond Rated Capacity |
| Finish | Powder Coated |
| For Max. Beam Flange Height | Not Applicable |
| For Maximum Beam Flange Width | Not Applicable |
| For Min. Beam Flange Height | Not Applicable |
| For Minimum Beam Flange Width | Not Applicable |
| For Outdoor Use | Yes |
| Headroom | 13" |
| Hoist Overload Protection | Yes |
| Hook Opening | 1 7/64" |
| Housing Depth | 5 3/4" |
| Housing Length | 6 13/64" |
| Housing Width | 6 1/4" |
| Included Components | Safety Latch Hooks |
| Includes | Safety Latch Hooks |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Length | 6 3/8" |
| Lever Length | 16-1/8" |
| Lever Length | Not Applicable |
| Lift Length | 10 ft. |
| Lifting Capacity | 2000 lbs. |
| Lifting Hook Material | Alloy Steel |
| Lifting Hook Opening Width | 1 1/8" |
| Lifting Hook Type | Hook With Safety Latch |
| Load Capacity | 2000 lbs. |
| Manufacturers Warranty Length | 1 yr. |
| Maximum Pulling Capacity | Not Applicable |
| Min. Between Hooks | 13" |
| Minimum Retracted Length | 13" |
| Mount Type | Hook Mounted - No Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 1 |
| Operating Position | Vertical |
| Overload Protection | Yes |
| Overload Protection Included | Yes |
| Power Source | Manual |
| Pull Force To Lift Rated Load | 73 lbs. |
| Pull To Lift Rated Load | 112 lb. |
| Pull To Lift Rated Load | 112 lbs. |
| Reeving | 1 |
| Resistance Properties | Not Applicable |
| Tonnage - Lifting Capacity | 1 ton. |
| Width | 6.38" |
Shipping Info:
| Ship weight (kg) | 12.63 |
| Ship height (cm) | 24 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16 |
| HS code | 8425190000 |
| Country of Origin | CN |
Product Variants
| Model | Lift Length | Headroom | Lifting Capacity | Pull Force To Lift Rated Load | Lifting Hook Opening Width | Chain Grade | Body Width | Body Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 29XP24 | 10 ft. | 11 1/2" | 1000 lbs. | 56 lbs. | 3/4" | Grade 80 | 5 11/16" | 5" | €891.47 | |

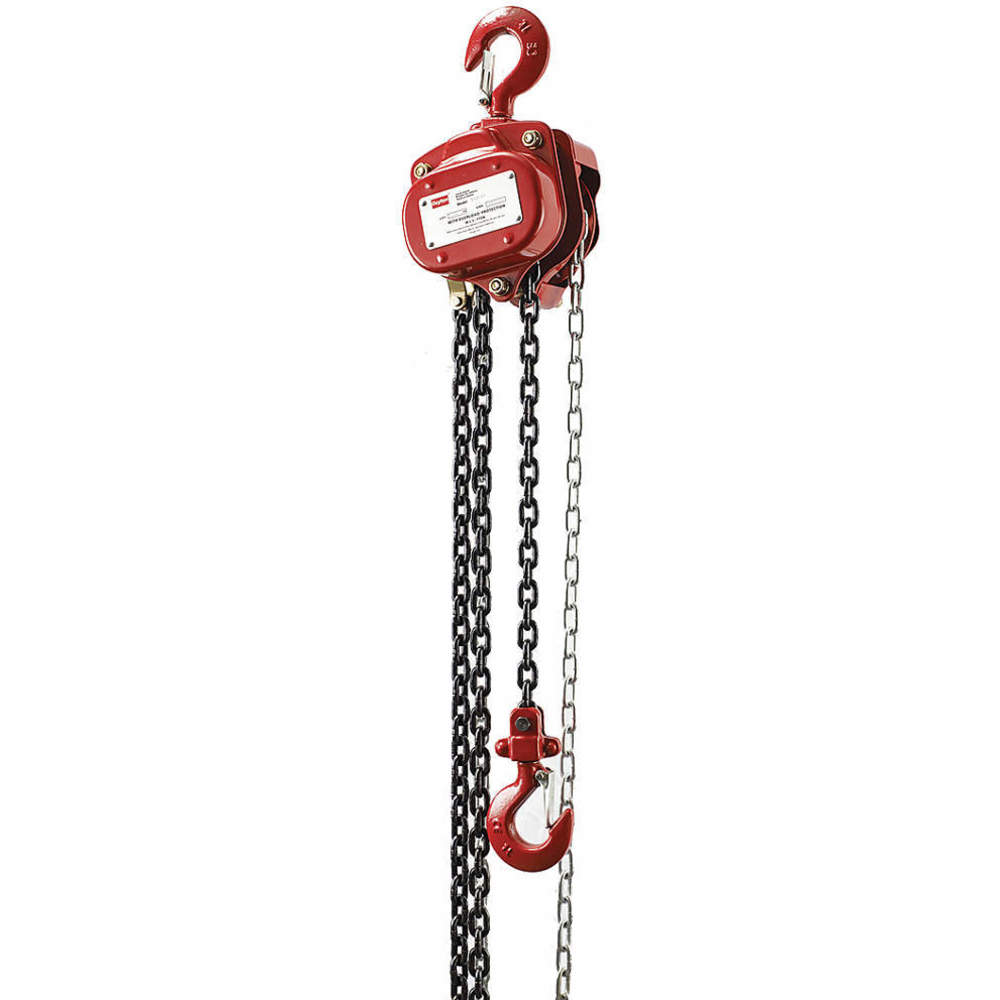

| 29XP25 | 15 ft. | 11 1/2" | 1000 lbs. | 56 lbs. | 3/4" | Grade 80 | 5 11/16" | 5" | €790.13 | |
| 29XP26 | 20 ft. | 11 1/2" | 1000 lbs. | 56 lbs. | 3/4" | Grade 80 | 5 11/16" | 5" | €1,035.65 | |
| 29XP28 | 15 ft. | 13" | 2000 lbs. | 73 lbs. | 1 1/8" | Grade 80 | 6 3/16" | 5 3/4" | €520.29 | |
| 29XP29 | 20 ft. | 13" | 2000 lbs. | 73 lbs. | 1 1/8" | Grade 80 | 6 3/16" | 5 3/4" | €824.18 | |
| 29XP30 | 10 ft. | 15 3/4" | 4000 lbs. | 75 lbs. | 1 1/4" | Grade 100 | 8" | 7 1/16" | €1,393.86 | |
| 29XP31 | 15 ft. | 15 3/4" | 4000 lbs. | 75 lbs. | 1 1/4" | Grade 100 | 8" | 7 1/16" | €724.50 |
