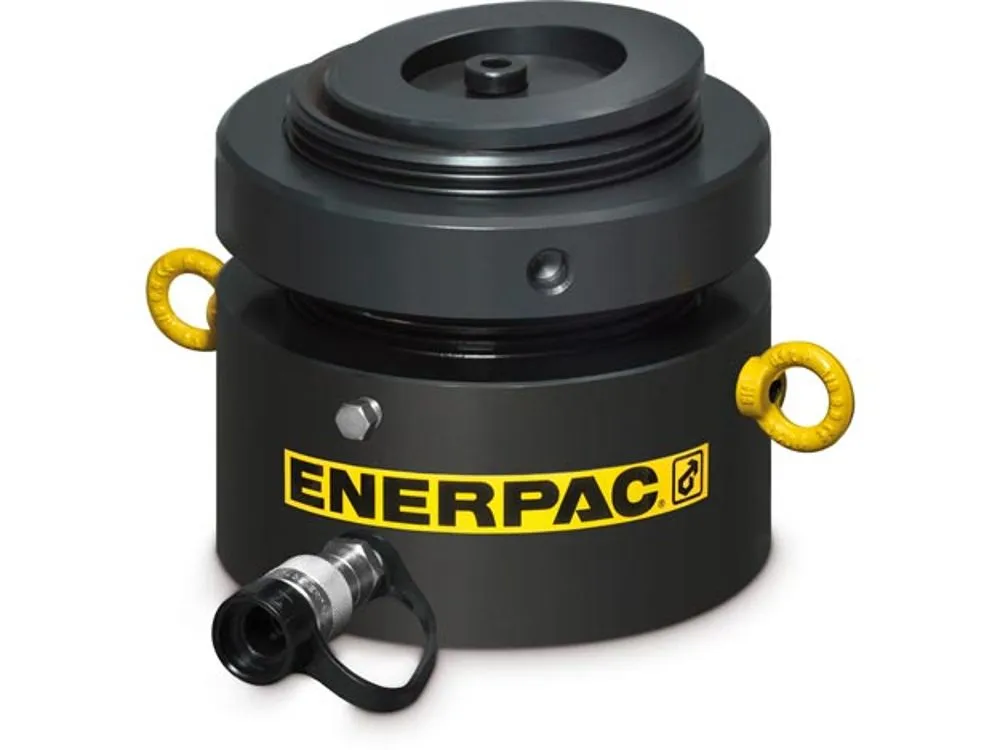

ENERPAC LPL2002 Pancake Cylinder, Single Acting, 200 Ton
Get it by Tuesday, Aug 18
13.00% off
€7,509.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Application | Lift, Push, Hold |
| Body Material | Steel |
| Bore Dia. | 7.48" |
| Capacity Class | 200 ton. |
| Collapsed Height A | 155 mm , 6.1" |
| Cylinder Effective Area Advance | 285.6 sq. cm , 43.95 sq. in. |
| Cylinder Type | Low Profile |
| Effective Push Area | 43.95 sq. in. |
| Extended Height | 7.9" |
| Extended Height B | 7.87" |
| Included | (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve |
| Material | Steel |
| Max. Cylinder Capacity Advance | 1999 kN , 223 ton. |
| Max. Operating Pressure | 10150 psi |
| Max. Pressure | 10150 psi |
| Nominal Capacity | 200 ton. |
| Nominal Stroke Length | 2" |
| Oil Capacity Advance (cm3) | 1275.9 cu. cm |
| Oil Capacity Advance (in3) | 77.9 cu. in. |
| Oil Capacity Push | 77.9 cu. in. |
| Outside Dia. | 9.65" |
| Plunger Type | Solid |
| Product Datasheet | enerpac-lpl2002.pdf |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 6.1" |
| Return Type | Single-Acting, Load Return |
| Sideload Resistance Of Max. Capacity | 8% |
| Single Acting/double Acting | Single Acting |
| Stroke | 1.77" , 45 mm |
| Stroke Length | 1 3/4" |
| Surface Treatment | Nitride |
Shipping Info:
| Ship weight (kg) | 64.35 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 40.64 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Stroke Length | Retracted Height | Extended Height | Nominal Capacity | Oil Capacity Push | Sideload Resistance Of Max. Capacity | Cylinder Type | Effective Push Area | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

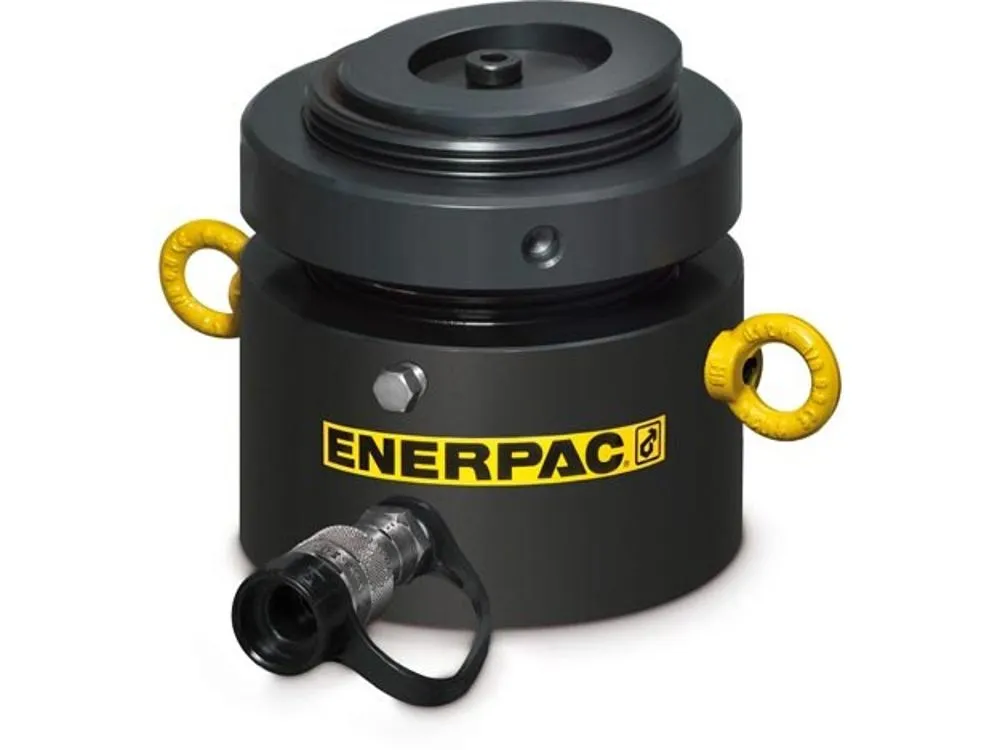

LPL1002 | 1 7/8" | 5.39" | 7 9/25" | 100 ton. | 43.7 cu. in. | 10% | Lock Nut | 22.19 sq. in. | €4,915.81 | |
|
LPL1602 | 1 3/4" | 5.83" | 7 3/5" | 150 ton. | 62.3 cu. in. | 8% | Lock Nut | 35.18 sq. in. | €6,554.31 | |
 |
LPL602 | 1 7/8" | 4.94" | 6.89" | 60 ton. | 26.4 cu. in. | 10% | Lock Nut | 13.42 sq. in. | €3,618.22 | |
|
LPL2502 | 1 3/4" | 6.24" | 8" | 250 ton. | 99.7 cu. in. | 5% | Low Profile | 56.27 sq. in. | €11,368.77 | |
|
LPL4002 | 1 3/4" | 7.01" | 8.8" | 400 ton. | 157.2 cu. in. | 5% | Low Profile | 88.75 sq. in. | €14,904.41 | |
|
LPL5002 | 1 3/4" | 7.56" | 9.3" | 500 ton. | 200.6 cu. in. | 5% | Low Profile | 113.25 sq. in. | €19,474.72 |
