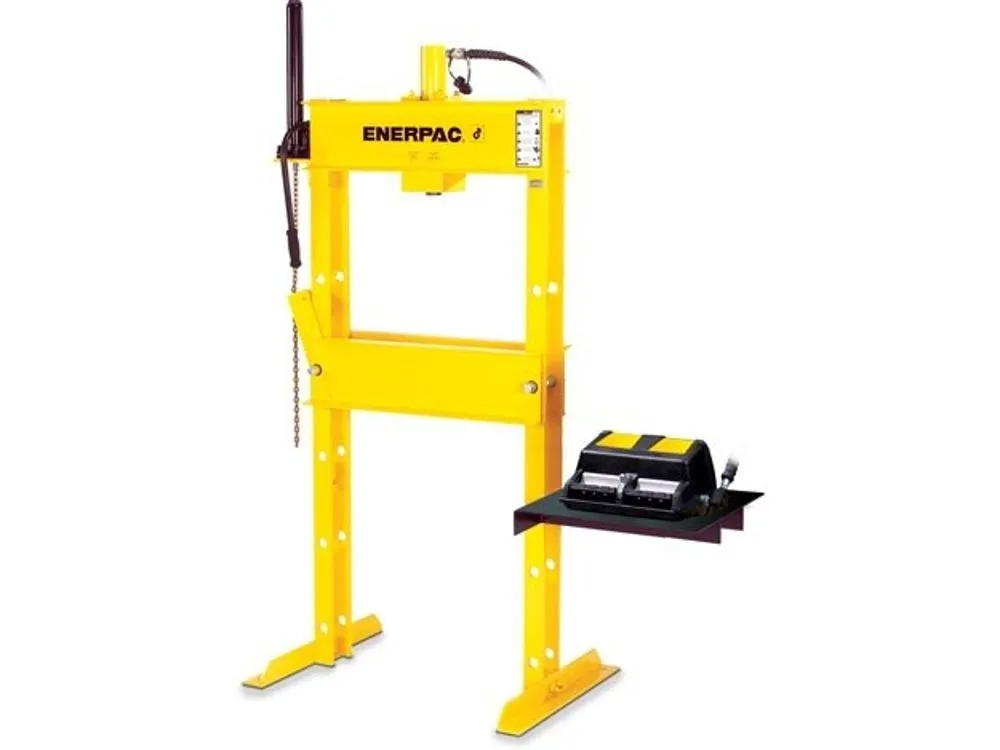

ENERPAC IPA1220 H Frame Press Set
Get it by Wednesday, Dec 24
10.00% off
€5,438.33 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Press |
| Adjustable Bed | Yes |
| Base Depth | 29 3/4" |
| Base Length | 25" |
| Base Width | 24 7/8" |
| Capacity | 10 ton. |
| Cylinder | 4Z487 |
| Cylinder Model Number | RC10010 |
| Cylinder Stroke | 10" |
| Cylinder Type | Single Acting |
| Dimension C | 46 3/4" |
| Dimension D | 5" |
| Dimension E | 18.63" |
| Dimension F | 24 22/25" |
| Dimension J | 29 3/4" |
| Dimension K | 4 1/4" |
| Dimension K | 4.25" |
| Dimension L | 7.44" |
| Dimension L | 7 11/25" |
| Dimension M | 35" |
| Dimension N | 52" |
| Distance Between Uprights | 18 5/8" |
| Features | Heavy Duty Welded Construction |
| Frame Type | Half Frame |
| Hydraulic Hose Length | 8 ft. |
| Includes | Gauge Adaptor, General Purpose Hydraulic Cylinder, Heavy Duty Rubber High Pressure Hydraulic Hose |
| Max. Bed Width | 18.63" |
| Max. Operating Pressure | 10000 psi |
| Max. Ram-to-table Distance | 40" |
| Max. Vertical Daylight | 40" |
| Maximum Bed Width | 18.63" |
| Maximum Ram Press Speed | 13.4 in./sec. |
| Min. Dimension A | 2 11/25" |
| Mx. Dimension A | 40" |
| Operating Pressure | 10000 psi |
| Operation | Air |
| Overall Depth | 29 3/4" |
| Overall Height | 52" |
| Overall Width | 24 7/8" |
| Power Source | Air |
| Power Source Type | Air |
| Power Source Valve | Manual |
| Press Bed Depth | 7 1/2" |
| Press Bed Width | 18 5/8" |
| Product Datasheet | enerpac-ipe1215.pdf |
| Promotion Restriction | Not Eligible For Promotion |
| Pump Model Number | Xa12 |
| Pump Type | Air |
| Ram Advance Speed - Maximum | 2.2 in./sec. |
| Ram-to-table Distance - Minimum | 2 1/2" |
| Reservoir Capacity | 61 cu. in. |
Shipping Info:
| Ship weight (kg) | 86.4 |
| Ship height (cm) | 91.44 |
| Ship length (cm) | 203.2 |
| Ship width (cm) | 132.08 |
| HS code | 8462918090 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Pump Type | Cylinder Type | Frame Type | Stroke | Overall Height | Overall Length | Frame Capacity | Cylinder Stroke | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

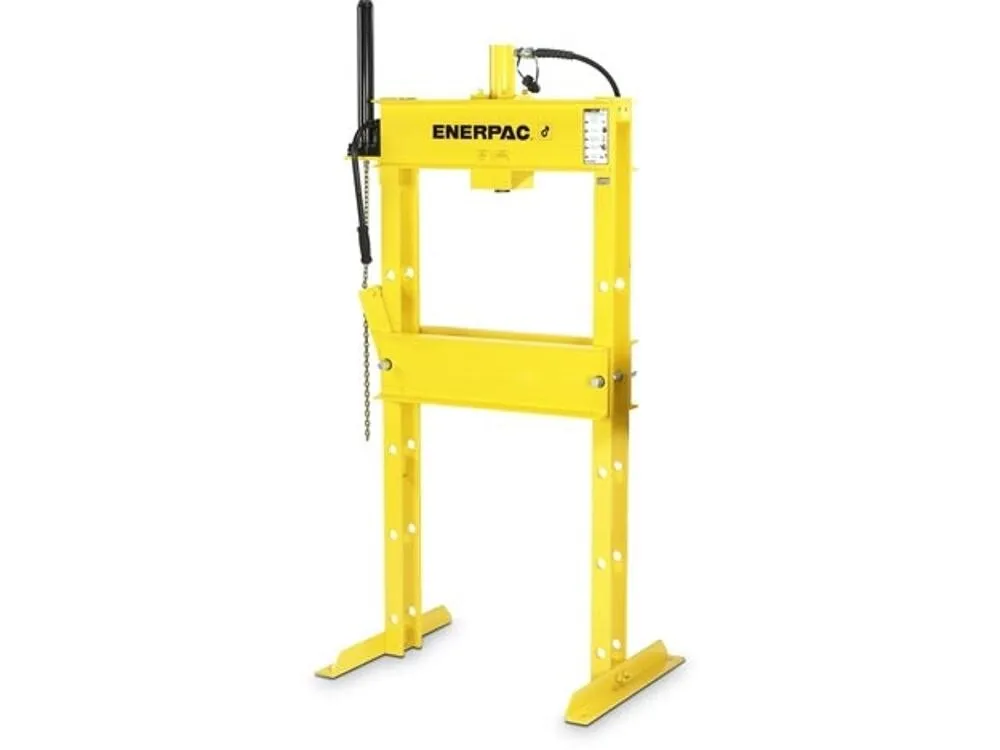

IPE1215 | Electric | Single Acting | - | 1" | - | 29 3/4" | - | 10" | €12,594.98 | |
 |

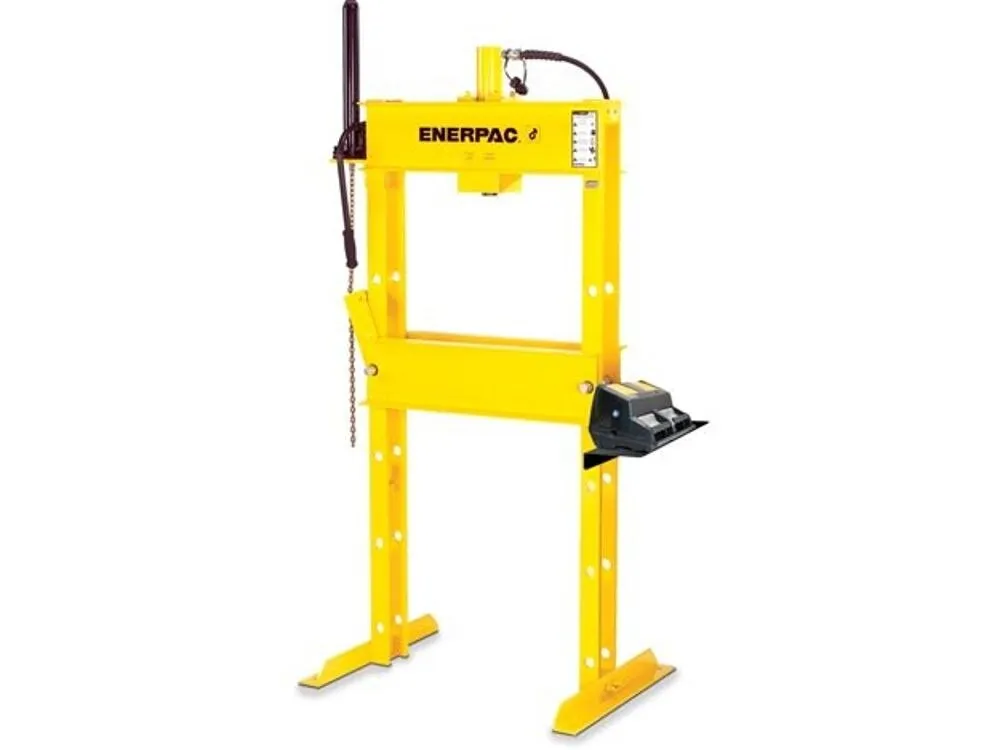

IPA2520 | Air | Single Acting | Half Frame | 2 1/2" | 89 1/4" | 30" | 25 ton. | 14" | €15,367.46 | |
 |

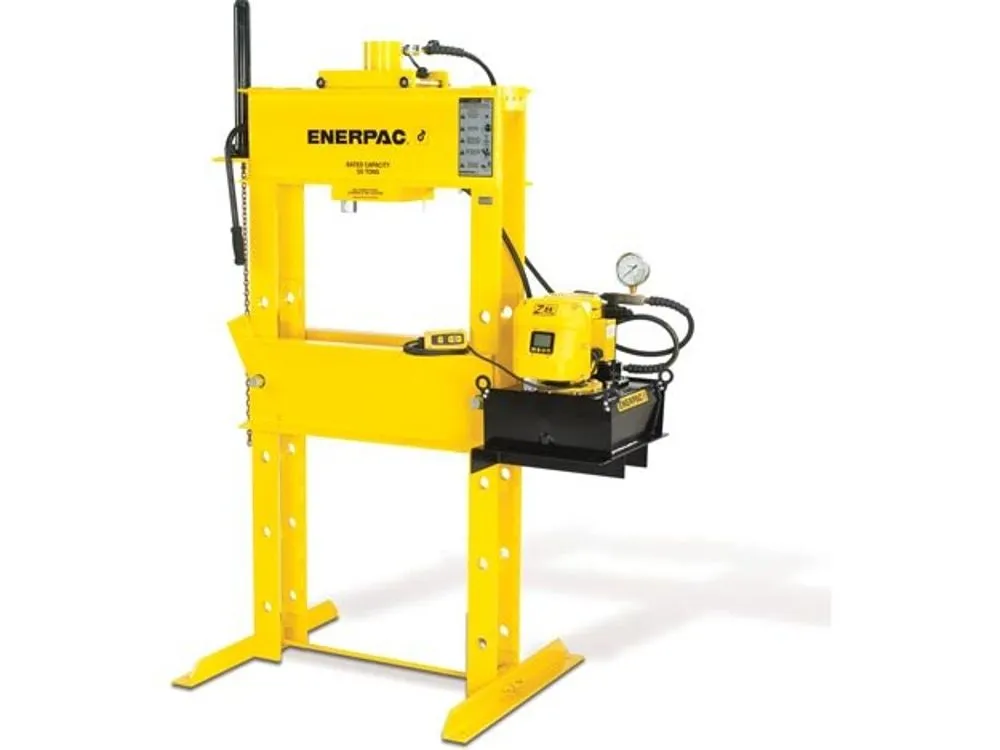

IPE10060 | Electric | Double Acting | Half Frame | 2" | 84 3/4" | 36" | - | 13" | €53,416.03 | |
|
IPE5060 | Electric | Double Acting | Half Frame | 1.1" | 84 3/4" | 36" | - | 13" | €38,382.14 | |
 |

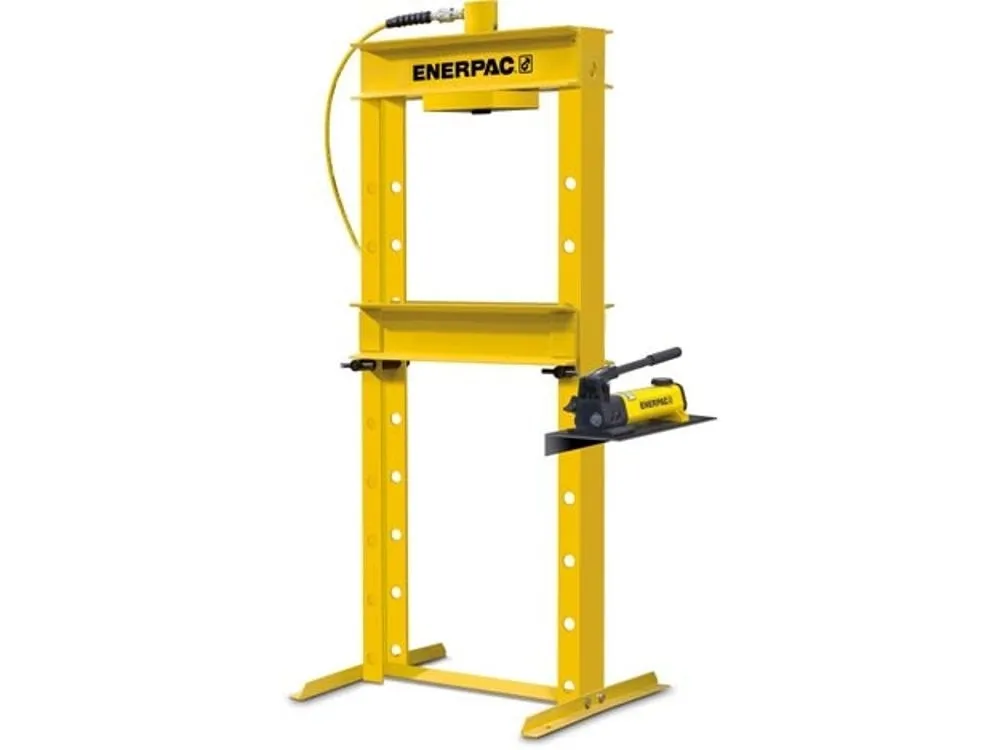

IPH1240 | Manual | Single Acting | Half Frame | 10" | 52" | - | - | 10" | €5,024.21 | |
 |
IPH2531 | Manual | Single Acting | Half Frame | 5" | 89 1/4" | 30" | 25 ton. | 14" | €17,396.44 | |
|
IPA10023 | Air | Single Acting | H Frame | 1 1/2" | 84 3/4" | 36" | - | 10" | €40,871.62 |
