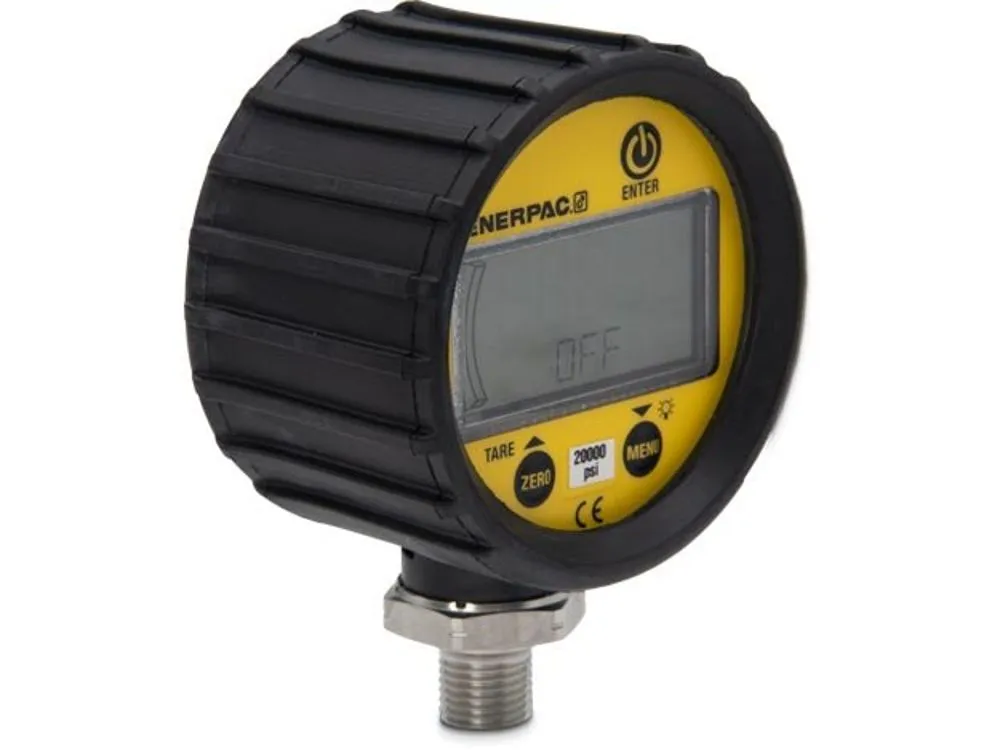

ENERPAC DGR2 Digital Hydraulic Pressure Gauge, 20000 Max. PSI
Item: AB6XBCModel: DGR2Cross Ref: 22NV68
7 In Stock
Ships within 2 days via
10.00% off
€2,272.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Digital Pressure Gauge |
| Accuracy | -0.25% to +0.25% |
| Accuracy Grade Gauge Type | Industrial |
| Adjustable Set Points | Yes |
| Ambient Operating Temperature Range | 4°F to 140°F |
| Application | Industrial, Workholding Tools |
| Auto Shutoff | No |
| Backlit Screen | Yes |
| Bar Graph | 20 Segments |
| Basic Gauge Case Material | Plastic |
| Battery Included | Yes |
| Battery Run Time | 2000 hrs. |
| Battery Type | 3V Lithium Battery |
| Blowout Safety Back | No |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Black, Yellow |
| Case Depth | 1.61" |
| Case Dia. | 2.73" |
| Case Material | Plastic |
| Case Shape | Round |
| Connection Location | Bottom |
| Data Update Frequency | 1 sec. |
| Dial Size | 2 3/4" |
| Digital Gauge Display Units | Bar, Mpa, Psi |
| Digital Pressure And Vacuum Gauge Type | Digital Pressure Gauge |
| Display Resolution | 1 psi |
| Display Screen Type | LCD |
| Display Units | Bar, Mpa, Psi |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 2 3/4" |
| Gauge Primary Range Units | Psi |
| Gauge Wetted Parts | Stainless Steel |
| Graduations | Psi X Bar, Psi X Kg/Sq Cm, Psi X Mpa, Psi X Psi |
| Hazardous Location Rating | Not Rated |
| Hydraulic Pressure Gauge Type | Digital Pressure Gauge For Hydraulic Systems |
| Includes | Batteries, Protective Cover |
| Includes Mounting Hardware | No |
| Includes Rubber Boot | No |
| Ip/nema Rating | Nema Ip65 |
| Languages | English |
| Low Battery Indicator | No Low Battery Indicator |
| Low-battery Indicator | No |
| Manufacturer Warranty Length | Limited Lifetime |
| Max. Operating Pressure | 20000 psi |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Nominal Dial Size | 2 3/4" |
| Non-sparking | No |
| Number Of Digits | 5 |
| Operating Temp. Range | -40°F to +140°F |
| Panel-mountable | No |
| Peak Hold | No |
| Power Source | Battery |
| Powered By | Battery |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 20000 psi |
| Pressure Range Type | Pressure |
| Pressure Resolution | 1 psi |
| Primary Range | 0 to 20000 |
| Primary Units | Psi |
| Process Connection | 1/4" NPTF Male |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPTF |
| Process Temperature Range | -40°F to +140°F |
| Promotion Restriction | Not Eligible For Promotion |
| Range | 0 psi to 20000 psi |
| Secondary Pressure Range | 0 Bar to 1380 Bar, 0 to 1400 Kg/Sq. Cm, 0 Mpa to 140 Mpa, 0 Psi to 20000 Psi |
| Secondary Range | 0 Bar to 1380 Bar, 0 Kg/Sq. Cm to 1380 Bar Kg/Sq. Cm, 0 Bar to 1380 Bar Mpa, 0 Bar to 1, 380 Bar Psi, 0 Kg/Sq. Cm to 1400 Kg/Sq. Cm Bar, 0 Kg/Sq. Cm to 1400 Kg/Sq. Cm Kg/Sq. Cm, 0 Kg/Sq. Cm to 1400 Kg/Sq. Cm Mpa, 0 Kg/Sq. Cm to 1400 Kg/Sq. Cm Psi, 0 Mpa to 140 Mpa Bar, 0 Mpa to 140 Mpa Kg/Sq. Cm, 0 Mpa to 140 Mpa Mpa, 0 Mpa to 140 Mpa Psi, 0 Psi to 20000 Psi Bar, 0 Psi to 20000 Psi Kg/Sq. Cm, 0 Psi to 20000 Psi Mpa, 0 Psi to 20000 Psi Psi |
| Secondary Units | Bar, Kg/Sq Cm, Mpa, Psi |
| Series | DGR Series |
| Socket Material | Stainless Steel |
| Style | Digital |
| Type | Digital |
| Weatherproof | No |
| Wetted Parts Material | Stainless Steel |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| HS code | 9026204000 |
| Country of Origin | US |
