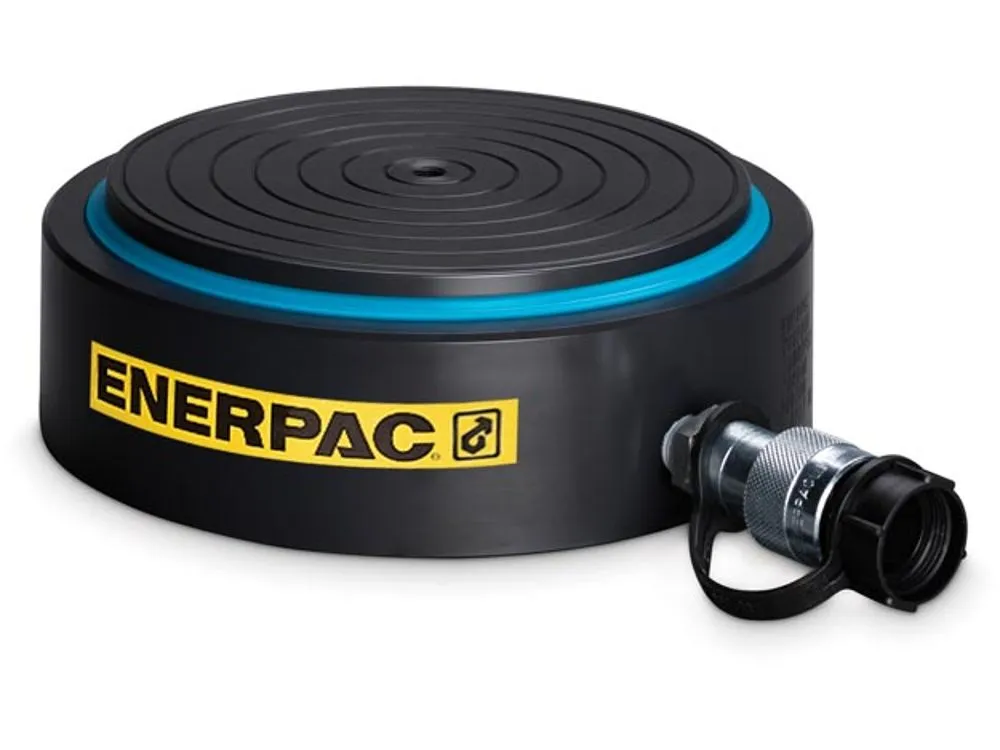

ENERPAC CUSP75 Ultra Flat Hydraulic Cylinder, 75 Ton
Get it by Friday, Aug 14
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€2,544.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Body Material | Steel |
| Bore Dia. | 4.72" |
| Capacity Class (tonnage) | Class 75 |
| Collapsed Height A | 2.38" , 60.5 mm |
| Cylinder Effective Area Advance | 113.1 sq. cm , 17.53 sq. in. |
| Cylinder Type | Low Profile |
| Effective Push Area | 17.53 sq. in. |
| Extended Height | 2.9" |
| Extended Height B | 70.5 mm |
| Finish | Nitride |
| Material | Steel |
| Max. Cylinder Capacity Advance | 792 kN , 89 ton. |
| Max. Cylinder Capacity Advance (short Tons) | 89 ton. |
| Max. Operating Pressure | 10150 psi |
| Max. Pressure | 10150 psi |
| Nominal Capacity | 75 ton. |
| Nominal Stroke Length | 1" |
| Oil Capacity Advance (cm3) | 158 cu. cm |
| Oil Capacity Advance (in3) | 9.66 cu. in. |
| Oil Capacity Push | 9.66 cu. in. |
| Outside Dia. | 5.91" |
| Plunger Type | Solid |
| Product Datasheet | enerpac-cusp10.pdf |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 2.38" |
| Return Type | Single-Acting, Load Return |
| Single Acting/double Acting | Single Acting |
| Stroke | 0.55" , 14 mm |
| Stroke Length | 1/2" |
| Surface Treatment | Nitride |
| Tilted Stroke | 0.39" , 10 mm |
| Tilting Degrees | 4° |
Shipping Info:
| Ship weight (kg) | 7.94 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 17.27 |
| Country of Origin | ES |
Documentation:
Product Variants
| Model | Stroke Length | Max. Cylinder Capacity Advance | Collapsed Height A | Extended Height B | Oil Capacity Advance (cm3) | Max. Cylinder Capacity Advance (short Tons) | Stroke | Cylinder Effective Area Advance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CUSP10 | 17/64" | 97 kN | 1.4" | 41.5 mm | 9.3 cu. cm | 10.9 ton. | 0.26" | 13.9 sq. cm | €1,421.88 | |
| CUSP100 | 37/64" | 1078 kN | 2.5" | 73.5 mm | 226 cu. cm | 121.1 ton. | 14.7 mm | 153.9 sq. cm | €4,114.49 | |
| CUSP1000 | - | 1142.6 ton. | 4.06" | 113 mm | 2531 cu. cm | 1142.6 ton. | 17.4 mm | 1452.2 sq. cm | €17,979.44 | |
| CUSP150 | 9/16" | 1589 kN | 2.56" | 75 mm | 324 cu. cm | 178.6 ton. | 14.3 mm | 227 sq. cm | €4,327.25 | |
| CUSP20 | 9/32" | 198 kN | 40.5 mm | 46.5 mm | 19.8 cu. cm | 22.2 ton. | 7 mm | 28.3 sq. cm | €1,710.30 | |
| CUSP200 | 19/32" | 2090 kN | 2.72" | 3.3" | 446 cu. cm | 235 ton. | 0.59" | 298.6 sq. cm | €5,686.34 | |
| CUSP250 | - | 2542 kN | 72.5 mm | 82.5 mm | 569 cu. cm | 285.6 ton. | 15.5 mm | 363.1 sq. cm | €5,027.11 |
