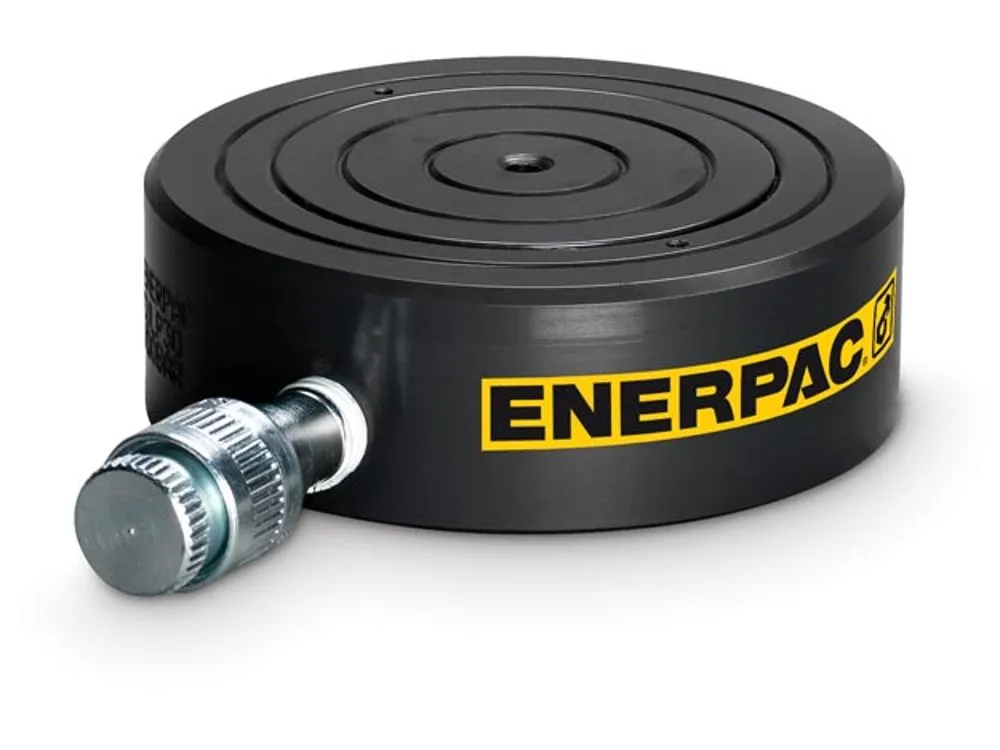

ENERPAC CULP50 Ultra Flat Hydraulic Cylinder With Stop Ring, 50 Ton
Get it by Monday, Aug 17
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
13.00% off
€1,436.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Body Material | Steel |
| Bore Dia. | 3.94" |
| Capacity Class (tonnage) | Class 50 |
| Collapsed Height A | 1.75" , 44.5 mm |
| Cylinder Effective Area Advance | 12.17 sq. in. , 78.5 sq. cm |
| Cylinder Type | Low Profile |
| Effective Push Area | 12.17 sq. in. |
| Extended Height | 2" |
| Extended Height B | 50.5 mm |
| Finish | Nitride |
| Material | Steel |
| Max. Cylinder Capacity Advance | 550 kN , 61.8 ton. |
| Max. Cylinder Capacity Advance (short Tons) | 61.8 ton. |
| Max. Operating Pressure | 10150 psi |
| Max. Pressure | 10150 psi |
| Nominal Capacity | 50 ton. |
| Nominal Stroke Length | 1/4" |
| Oil Capacity Advance (cm3) | 47.1 cu. cm |
| Oil Capacity Advance (in3) | 2.88 cu. in. |
| Oil Capacity Push | 2.88 cu. in. |
| Outside Dia. | 5.51" |
| Plunger Type | Solid |
| Product Datasheet | enerpac-culp10.pdf |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 1 3/4" |
| Return Type | Single-Acting, Load Return |
| Single Acting/double Acting | Single Acting |
| Stroke | 0.24" , 6 mm |
| Stroke Length | 15/64" |
| Surface Treatment | Nitride |
Shipping Info:
| Ship weight (kg) | 5.45 |
| Ship height (cm) | 43.18 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 22.86 |
| Country of Origin | ES |
Documentation:
Product Variants
| Model | Retracted Height | Extended Height | Nominal Capacity | Oil Capacity Push | Max. Cylinder Capacity Advance | Collapsed Height A | Oil Capacity Advance (cm3) | Max. Cylinder Capacity Advance (short Tons) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CULP10 | 1 2/25" | 1.3" | 10 ton. | 0.51 cu. in. | 97 kN | 27.5 mm | 8.3 cu. cm | 10.9 ton. | €1,284.00 | |

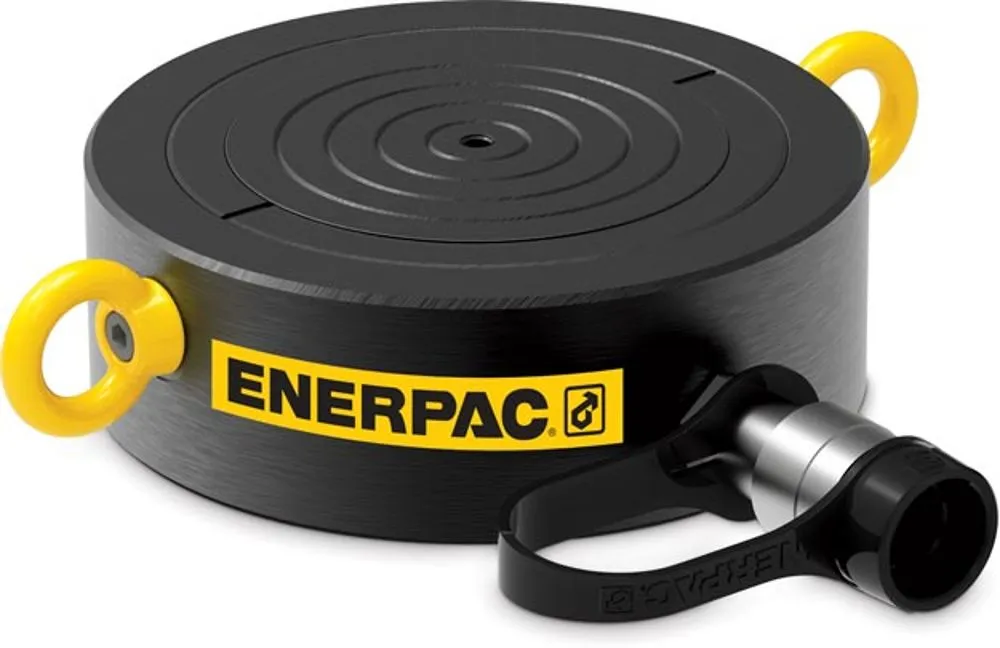

| CULP100 | 2.55" | 2.8" | 100 ton. | 5.63 cu. in. | 1077 kN | 2.55" | 92.3 cu. cm | 121.1 ton. | €3,047.53 | |
| CULP20 | 1.26" | 1.5" | 20 ton. | 1.04 cu. in. | 198 kN | 32 mm | 17.0 cu. cm | 22.2 ton. | €1,183.42 | |
| CULP30 | 1.38" | 1.6" | 30 ton. | 1.62 cu. in. | 34.8 ton. | 1.38" | 26.5 cu. cm | 34.8 ton. | €1,393.19 |
