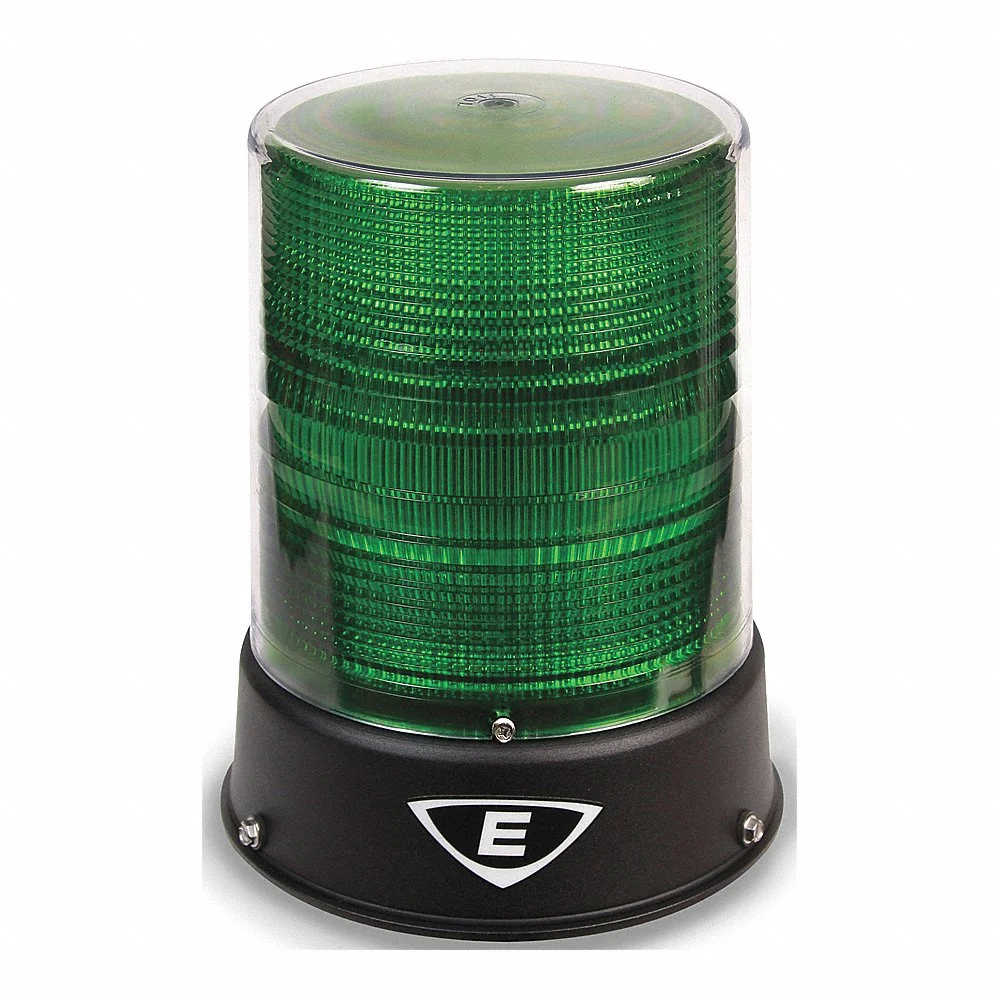

EDWARDS SIGNALING 57PLEDMG24ADB Warning Light, Green, LED, 24 VAC/DC, 148,000 hr Lamp Life, Fresnel, 8 Inch Height
Item: AD4BJJModel: 57PLEDMG24ADBCross Ref: 40Z963
7 In Stock
Ships within 2 days via
5.00% off
€907.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Beacon Light |
| Amps Drawn | 0.7/0.55A |
| Color | Green |
| Connection Type | Wire Leads |
| Control Protocol | Direct Wire |
| Dia. | 6 1/2" |
| Flashes Per Minute | 65/85/120/460/480/750/1000 FPM |
| Footprint Dia. | 6 1/2" |
| For Location | Indoor, Outdoor |
| Height | 8" |
| Housing Color | Black |
| Housing Material | Polycarbonate |
| Included Mounting Hardware | No Mounting Hardware |
| Ip Rating | IP66 |
| Lamp Color | Green |
| Lamp Life | 148000 hrs. |
| Lamp Type | LED |
| Lens Color | Green |
| Lens Design | Fresnel |
| Lens Material | Polycarbonate |
| Lens Shape | Dome |
| Lifespan | 148000 hrs. |
| Light Operating Mode | Flashing, Steady |
| Light Source | LED |
| Max. Operating Temp. | 151°F |
| Min. Operating Temp. | -31°F |
| Mounting | Conduit, Surface |
| Mounting Location | Conduit Mount |
| Mounting Mechanism | 3/4" MNPT |
| Mounting Style | Surface Mount |
| Mounting Thread Size | 3/4" |
| Nema Rating | NEMA 4X |
| Operating Amps | 0.55A @ 24V AC/DC, 0.7A @ 12V DC |
| Operating Temp. | -31°F to +150.8°F |
| Operating Voltage | 12V DC/24V AC/DC |
| Overall Height | 8" |
| Power Source | Wire |
| Product Datasheet | edwards-signaling-57pledma24adb.pdf |
| Product Type | Warning Light |
| Requires Base | Base Not Required |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 17.46 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 19.53 |
| HS code | 8531800050 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Height | Color | Voltage | Mounting | Dia. | Housing Material | Amps Drawn | Lens Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
57PLEDMA24ADB | 8" | Amber | - | Conduit, Surface | 6 1/2" | Polycarbonate | 0.7/0.55A | Fresnel | €968.23 | |
 |
57PLEDMB24ADB | 8" | Blue | - | Conduit, Surface | 6 1/2" | Polycarbonate | 0.7/0.55A | Fresnel | €955.22 | |
 |
57PLEDMM24ADB | 8" | Magenta | - | Conduit, Surface | 6 1/2" | Polycarbonate | 0.7/0.55A | Fresnel | €964.94 | |
 |
57PLEDMR24ADB | 8" | Red | - | Conduit, Surface | 6 1/2" | Polycarbonate | 0.7/0.55A | Fresnel | €964.81 | |
 |
57PLEDMW24ADB | 8" | White | - | Conduit, Surface | 6 1/2" | Polycarbonate | 0.7/0.55A | Fresnel | €955.22 | |
|
57PLEDMA120AB | 8" | Amber | - | Conduit, Surface | 6 1/2" | Polycarbonate | 0.25A | Fresnel | €979.83 | |
|
57PLEDMB120AB | 8" | Blue | - | Conduit, Surface | 6 1/2" | Polycarbonate | 0.25A | Fresnel | €1,000.11 |
