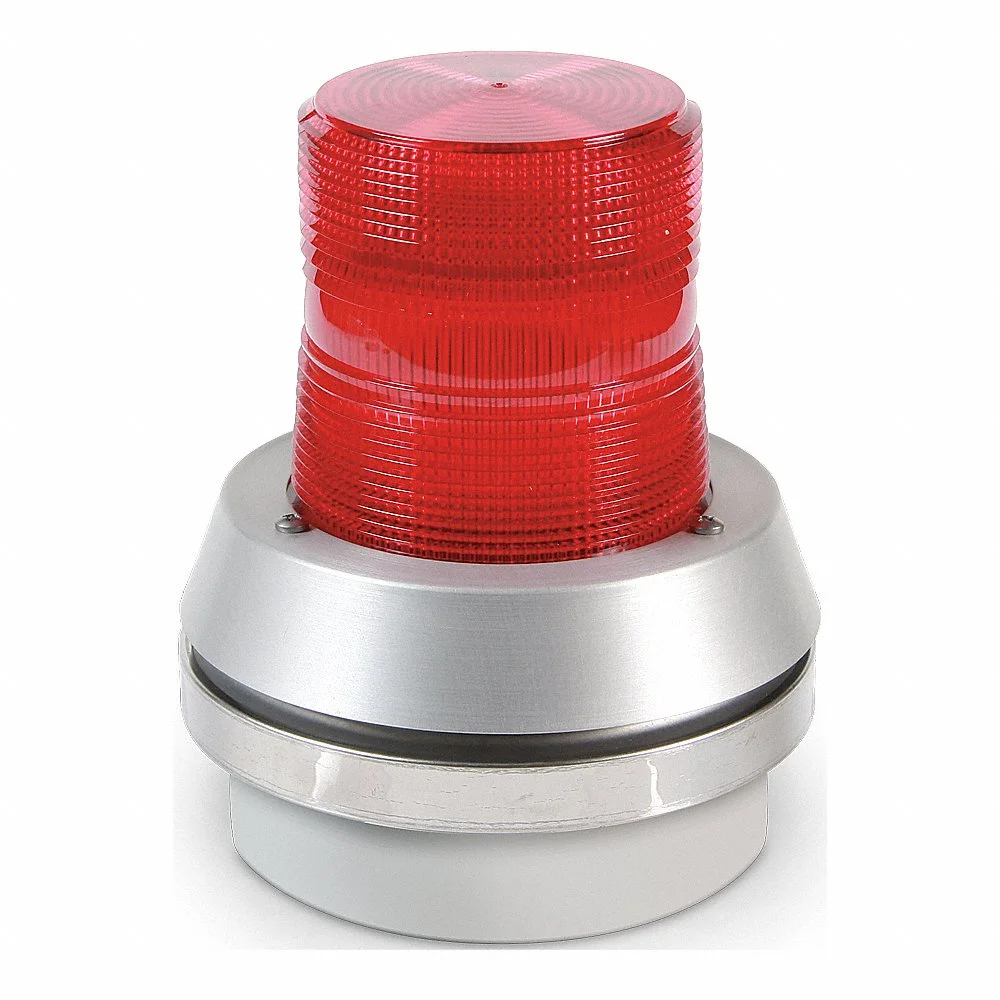

EDWARDS SIGNALING 51XBRFR24D Led Beacon with Horn, 6 Inch Dia., 24VDC
Item: AD4BKXModel: 51XBRFR24DCross Ref: 41A004
7 In Stock
Ships within 2 days via
10.00% off
€506.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Beacon Light |
| Alarm Volume @ 1 M - Maximum | 95 dBA |
| Alarm Volume @ 10 Ft - Maximum | 85 dB |
| Amps Drawn | 0.275A |
| Connection Type | Conduit Hole |
| Control Protocol | Direct Wire |
| Diameter | 6" |
| Features | Junction Box Base |
| Flashes Per Minute | 65 FPM |
| For Location | Indoor/Outdoor |
| Height | 7 3/8" |
| Housing Color | Silver |
| Housing Material | Cast Aluminum |
| Includes Mounting Hardware | Mounting Hardware Included |
| Lamp Life | 148000 hrs. |
| Lamp Type | LED |
| Lens Color | Red |
| Lens Design | Fresnel |
| Lens Material | Polycarbonate |
| Lifespan | 148000 hrs. |
| Light Operating Mode | Flashing |
| Mounting | Flush, Panel, Wall |
| Mounting Location | Conduit Mount |
| Mounting Style | Surface Mount |
| Number Of Sound Patterns | 1 |
| Operating Current | 0.275A |
| Operating Temp. | -31°F to +160°F |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | -31°F |
| Operating Voltage | 24V DC |
| Overall Height | 7 3/8" |
| Power Source | Wire |
| Product Type | Horn And Light |
| Sound Continuity | Pulse |
| Sound Level | 85dB @ 10Ft. |
| Sound Style | Horn |
| Vibration | No Vibration |
Shipping Info:
| Ship weight (kg) | 0.99 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 17.15 |
| Ship width (cm) | 17.15 |
| HS code | 8531800050 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Diameter | Mounting | Lens Color | Housing Material | Lens Design | Operating Temp. | Power Source | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
57PLEDMA24ADB | 8" | 6 1/2" | Conduit, Surface | Amber | Polycarbonate | Fresnel | -31°F to +150.8°F | Wire | €968.23 | |
 |
57PLEDMB24ADB | 8" | 6 1/2" | Conduit, Surface | Blue | Polycarbonate | Fresnel | -31°F to +150.8°F | Wire | €955.22 | |
 |
57PLEDMG24ADB | 8" | 6 1/2" | Conduit, Surface | Green | Polycarbonate | Fresnel | -31°F to +150.8°F | Wire | €955.22 | |
 |
57PLEDMM24ADB | 8" | 6 1/2" | Conduit, Surface | Magenta | Polycarbonate | Fresnel | -31°F to +150.8°F | Wire | €964.94 | |
 |
57PLEDMR24ADB | 8" | 6 1/2" | Conduit, Surface | Red | Polycarbonate | Fresnel | -31°F to +150.8°F | Wire | €964.81 | |
|
57PLEDMW24ADB | 8" | 6 1/2" | Conduit, Surface | Clear | Polycarbonate | Fresnel | -31°F to +150.8°F | Wire | €955.22 | |
|
57PLEDMA120AB | 8" | 6 1/2" | Conduit, Surface | Amber | Polycarbonate | Fresnel | -31°F to +150.8°F | Wire | €979.83 |
