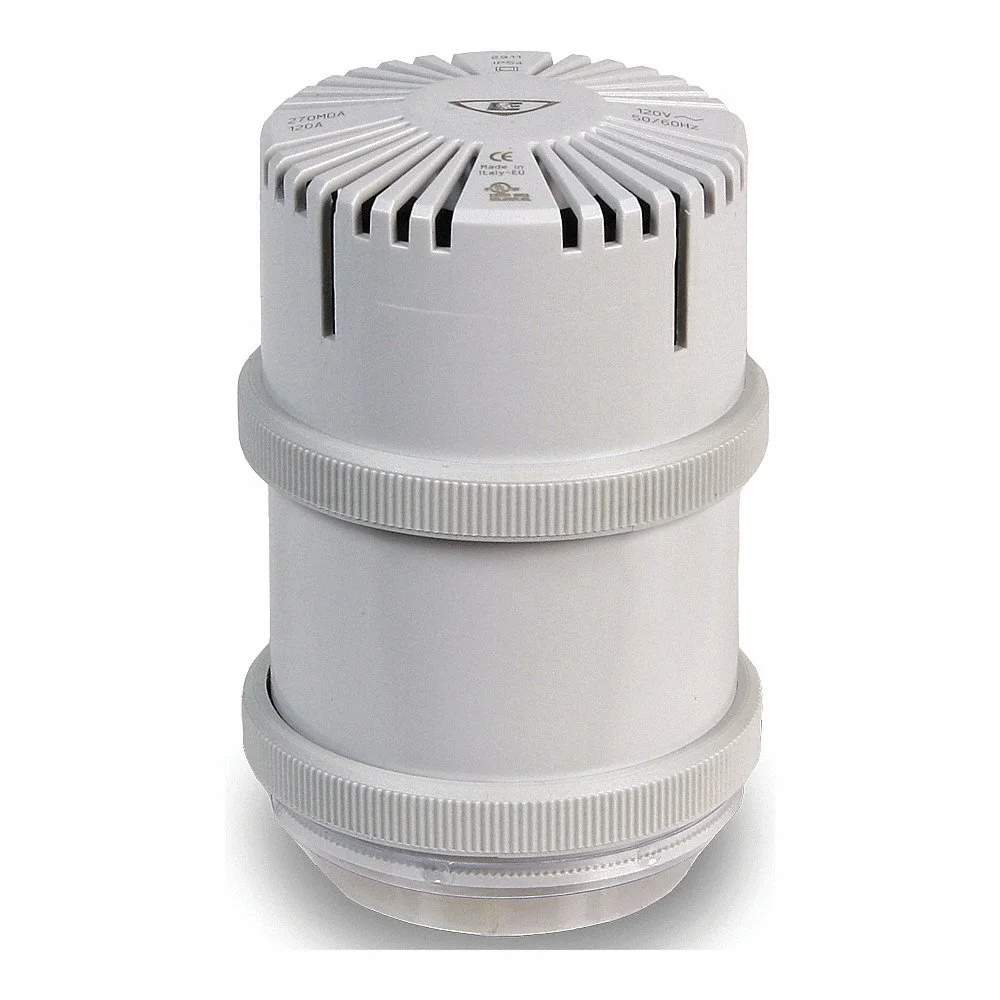

EDWARDS SIGNALING 270MDA240A Tower Light Sounder Tier, 240 VAC, Multi Tone, IP 54, 70 mm Dia, Gray
Item: AA7QGMModel: 270MDA240ACross Ref: 16G796
7 In Stock
Ships within 2 days via
5.00% off
€265.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sounder |
| Color | Gray |
| Compatible With Series | 200 Class |
| Current Drawn | 25-60 mA |
| Diameter | 2.95" |
| For Location | Indoor |
| Height | 4.1" |
| Housing Color | Gray |
| Housing Material | Polycarbonate |
| Ip Rating | IP54 |
| Length | 2.95" |
| Nema Rating | NEMA 3R |
| Number Of Sound Patterns | 15 |
| Operating Current | 0.025-0.06A |
| Operating Temp. | -22°F to +122°F |
| Operating Temperature - Maximum | 122°F |
| Operating Temperature - Minimum | -22°F |
| Operating Voltage | 240V AC |
| Overall Diameter | 2 15/16" |
| Overall Height | 4 1/8" |
| Product Datasheet | edwards-signaling-270pzo1248adb.pdf |
| Sound Level | 93 dB to 104 dB |
| Sound Operating Mode | Steady |
| Sound Style | Tone |
| Sound Volume - Maximum | 107 dB |
| Sound Volume - Minimum | 87 dB |
| Volume Selection | Selectable Volume |
Shipping Info:
| Ship weight (kg) | 0.58 |
| Ship height (cm) | 7.8 |
| Ship length (cm) | 7.49 |
| Ship width (cm) | 11.61 |
| HS code | 8531800040 |
| Country of Origin | IT |
Documentation:
Product Variants
| Model | Nema Rating | Ip Rating | Height | Operating Temp. | Sound Level | Size | Housing Material | Housing Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 248MDA120A | NEMA 3R, NEMA 4X | IP54, IP66 | 2 2/5" | -22°F to +122°F | 86.5 dBA to 103.5 dBA | - | Polycarbonate | Gray | €199.65 | |
| 248MDA240A | NEMA 3R, NEMA 4X | IP54, IP66 | 2 2/5" | -22°F to +122°F | 86.5 dBA to 103.5 dBA | - | Polycarbonate | Gray | €206.64 | |
| 248MDA24AD | NEMA 3R, NEMA 4X | IP54, IP66 | 2 2/5" | -22°F to +122°F | 86.5 dBA to 103.5 dBA | - | Polycarbonate | Gray | €167.91 | |
| 270MDA120A | NEMA 3R | IP54 | 4.1" | -22°F to +122°F | 93 dB to 103 dB | - | Polycarbonate | Gray | €261.56 | |
| 270MDA1224AD | NEMA 3R | IP54 | 4.1" | -22°F to +140°F | 87 dB to 107 dB | - | Polycarbonate | Gray | €225.04 | |
| 270PZO120240A | NEMA 3R | IP54 | 4.1" | -22°F to +132.8°F | 72 dB to 89 dB | - | Polycarbonate | Gray | €193.83 | |
| 270PZO1248AD | IP 54 | - | 4.1" | -22°F to +140°F | 75 dB to 87 dB | - | Polycarbonate | - | €194.87 |
