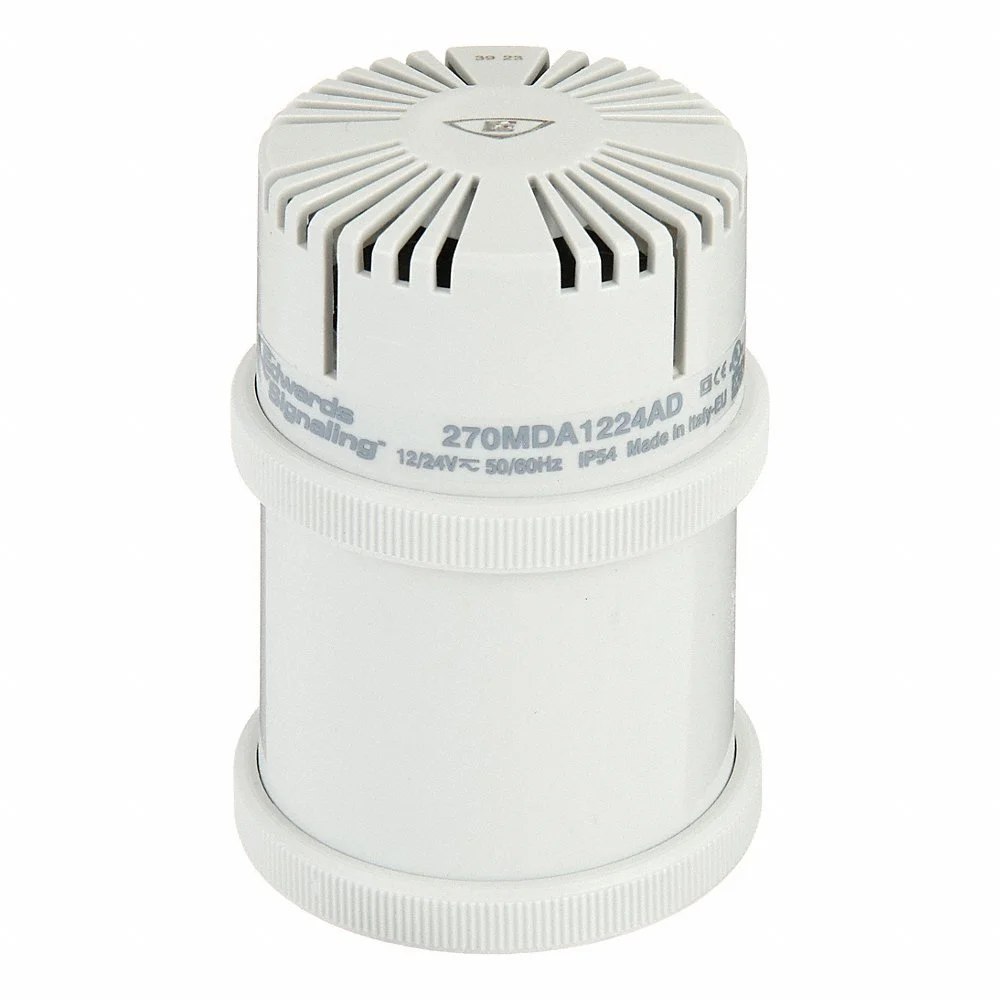

EDWARDS SIGNALING 270MDA1224AD Sounder, Gray, 70mm Size, 2.953 Inch Dia., 12 to 24VDC
Item: AA7QGLModel: 270MDA1224ADCross Ref: 16G795
7 In Stock
Ships within 2 days via
5.00% off
€213.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sounder |
| Amps Draw | 0.12 To 0.95A @ 12V AC, 30 To 335 mA @ 12V DC, 0.17 To 1.06A @ 24V AC, 45 To 450 mA @ 24V DC |
| Color | Gray |
| Compatible With Series | 200 Class |
| Dia. | 2.95" |
| For Location | Indoor |
| Height | 4.1" |
| Housing Color | Gray |
| Housing Material | Polycarbonate |
| Ip Rating | IP54 |
| Max. Operating Temp. | 140°F |
| Max. Sound Volume | 107 dB |
| Min. Operating Temp. | -22°F |
| Min. Sound Volume | 87 dB |
| Nema Rating | NEMA 3R |
| No. Of Sound Patterns | 15 |
| Operating Amps | 0.03-0.335A @ 12V DC, 0.045-0.45A @ 24V DC, 0.12-0.95A @ 12V AC, 0.17-1.06A @ 24V AC |
| Operating Temp. | -22°F to +140°F |
| Operating Voltage | 12-24V AC/12-24V DC |
| Overall Dia. | 2 15/16" |
| Overall Height | 4 1/8" |
| Product Datasheet | edwards-signaling-270pzo1248adb.pdf |
| Sound Level | 87 dB to 107 dB |
| Sound Modes | Multi-Tone |
| Sound Operating Mode | Steady |
| Sound Style | Tone |
| Volume Selection | Selectable Volume |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 7.8 |
| Ship length (cm) | 7.49 |
| Ship width (cm) | 11.61 |
| HS code | 8531800040 |
| Country of Origin | IT |
Documentation:
Product Variants
| Product | Model | Height | Dia. | Ip Rating | Nema Rating | Operating Temp. | Sound Level | Overall Height | Operating Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
248MDA120A | 2 2/5" | 2.17" | IP54, IP66 | NEMA 3R, NEMA 4X | -22°F to +122°F | 86.5 dBA to 103.5 dBA | 1 7/8" | 120V AC | €199.65 | |
|
248MDA240A | 2 2/5" | 2.17" | IP54, IP66 | NEMA 3R, NEMA 4X | -22°F to +122°F | 86.5 dBA to 103.5 dBA | 1 7/8" | 240V AC | €206.64 | |
|
248MDA24AD | 2 2/5" | 2.17" | IP54, IP66 | NEMA 3R, NEMA 4X | -22°F to +122°F | 86.5 dBA to 103.5 dBA | 1 7/8" | 24V AC/DC | €167.91 | |
 |
270MDA120A | 4.1" | 2.95" | IP54 | NEMA 3R | -22°F to +122°F | 93 dB to 103 dB | 4 1/8" | 120V AC | €261.56 | |
|
270MDA240A | 4.1" | 2.95" | IP54 | NEMA 3R | -22°F to +122°F | 93 dB to 104 dB | 4 1/8" | 240V AC | €279.24 | |
 |
270PZO120240A | 4.1" | 2.95" | IP54 | NEMA 3R | -22°F to +132.8°F | 72 dB to 89 dB | 4 1/8" | 120-240V AC | €193.83 | |
 |
270PZO1248AD | 4.1" | 2.95" | - | IP 54 | -22°F to +140°F | 75 dB to 87 dB | - | - | €194.87 |
