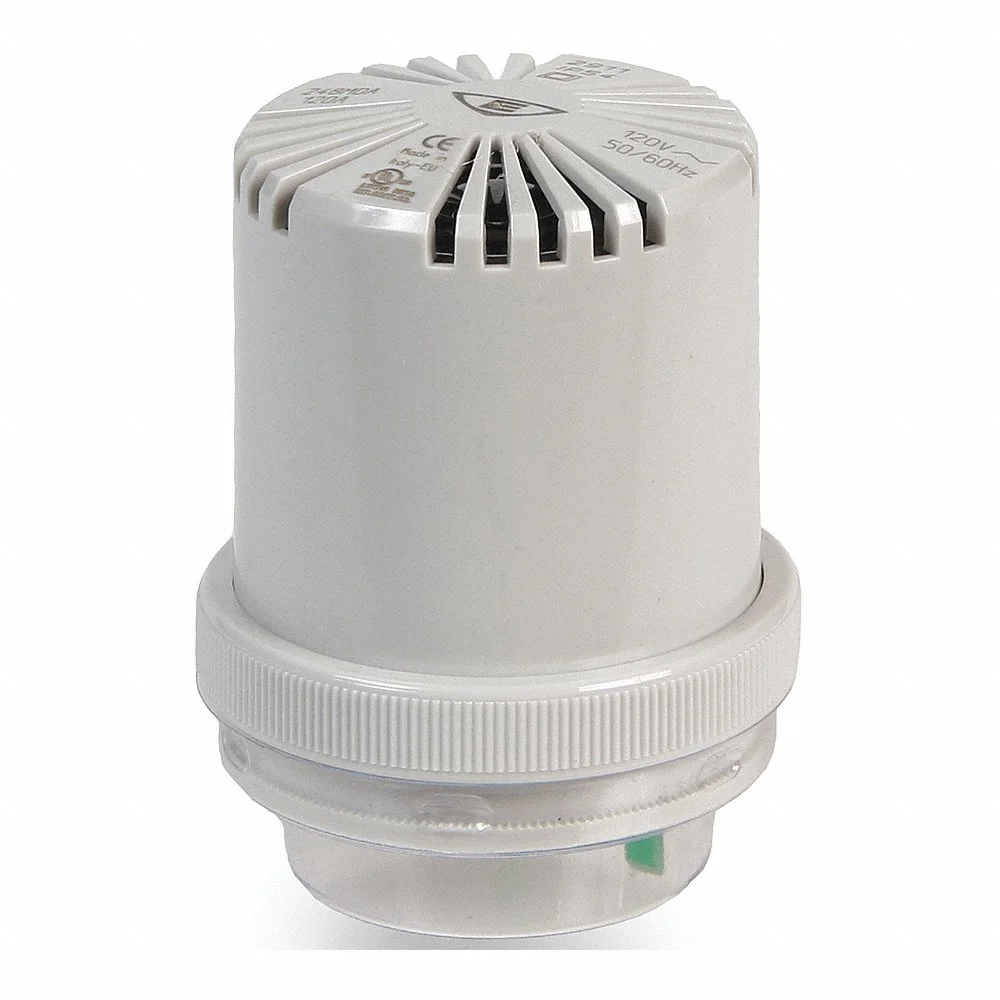

EDWARDS SIGNALING 248MDA120A Sounder, Gray, 48mm Size, 0.01A Rating, 120VAC at 50/60 Hz
Item: AA7QCUModel: 248MDA120ACross Ref: 16G710
7 In Stock
Ships within 2 days via
5.00% off
€189.67 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sounder |
| Amps Draw | 0.01A |
| Color | Gray |
| Compatible With Series | 200 Class |
| Dia. | 2.17" |
| For Location | Indoor |
| Height | 2 2/5" |
| Housing Color | Gray |
| Housing Material | Polycarbonate |
| Included | Gasket |
| Ip Rating | IP54, IP66 |
| Max. Operating Temp. | 122°F |
| Max. Sound Volume | 107 dB |
| Min. Operating Temp. | -22°F |
| Min. Sound Volume | 87 dB |
| Nema Rating | NEMA 3R, NEMA 4X |
| No. Of Sound Patterns | 15 |
| Operating Amps | 0.01A |
| Operating Temp. | -22°F to +122°F |
| Operating Voltage | 120V AC |
| Overall Dia. | 1 7/16" |
| Overall Height | 1 7/8" |
| Product Datasheet | edwards-signaling-248ledma120a.pdf |
| Rating | UL |
| Sound Level | 86.5 dBA to 103.5 dBA |
| Sound Operating Mode | Steady |
| Sound Style | Tone |
| Volume Selection | Fixed Volume |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 5.51 |
| Ship length (cm) | 5.51 |
| Ship width (cm) | 7.59 |
| HS code | 8531800040 |
| Country of Origin | IT |
Documentation:
Product Variants
| Product | Model | Height | Dia. | Ip Rating | Nema Rating | Operating Temp. | Sound Level | Overall Height | Operating Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
248MDA240A | 2 2/5" | 2.17" | IP54, IP66 | NEMA 3R, NEMA 4X | -22°F to +122°F | 86.5 dBA to 103.5 dBA | 1 7/8" | 240V AC | €206.64 | |
|
248MDA24AD | 2 2/5" | 2.17" | IP54, IP66 | NEMA 3R, NEMA 4X | -22°F to +122°F | 86.5 dBA to 103.5 dBA | 1 7/8" | 24V AC/DC | €167.91 | |
 |
270MDA120A | 4.1" | 2.95" | IP54 | NEMA 3R | -22°F to +122°F | 93 dB to 103 dB | 4 1/8" | 120V AC | €261.56 | |
 |
270MDA1224AD | 4.1" | 2.95" | IP54 | NEMA 3R | -22°F to +140°F | 87 dB to 107 dB | 4 1/8" | 12-24V AC/12-24V DC | €225.04 | |
|
270MDA240A | 4.1" | 2.95" | IP54 | NEMA 3R | -22°F to +122°F | 93 dB to 104 dB | 4 1/8" | 240V AC | €279.24 | |
 |
270PZO120240A | 4.1" | 2.95" | IP54 | NEMA 3R | -22°F to +132.8°F | 72 dB to 89 dB | 4 1/8" | 120-240V AC | €193.83 | |
 |
270PZO1248AD | 4.1" | 2.95" | - | IP 54 | -22°F to +140°F | 75 dB to 87 dB | - | - | €194.87 |
