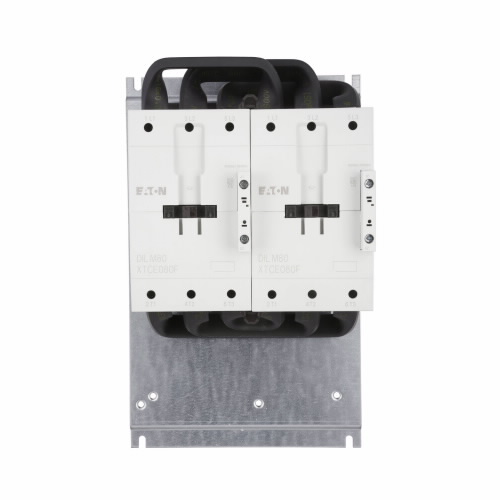

EATON XTCR080F11B IEC Contactor, 80A, Top-Mounted, 220 Vac 50 Hz, 240 Vac 60 Hz, 1No-1Nc, 80A, Frame F | BH8ZGK 4WUV7

EATON XTCR080F11B IEC Magnetic Contactor, Reversing, 3 Poles, 80 A, 240 VAC Coil, F Frame Size

Item: BH8ZGKModel: XTCR080F11BCross Ref: 4WUV7
7 In Stock

Ships within 2 days via

€2,199.77
10.00% off
€1,979.79 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Contactor
Amps Rating 80A
Auxiliary Contacts Included 1NO/1NC
Coil Voltage 220-240V AC
Contact Configuration 1 NC, 1 NO
Contactor Style IEC
Continuous Amps Rating 80A
Frame Size F
Frequency 50/60 Hz
Frequency Rating 50-60 Hz
Full Load Current - Inductive 80A
Full Load Current - Resistive 110A
Height 6.142"
Horsepower @ Single Phase - 240v Ac 15 hp
Horsepower @ Three Phase - 208v Ac 25 hp
Horsepower @ Three Phase - 240v Ac 30 hp
Horsepower @ Three Phase - 480v Ac 60 hp
Horsepower @ Three Phase - 600v Ac 75 hp
Hp @ Single Phase - 120v Ac 7 1/2 hp
Includes Auxiliary Contacts Yes
Integrated Surge Suppression Yes
Ip Rating IP20
Length 5.079"
Main Power Pole Contact Form 3NO
Max. Hp Rating 7 1/2, 15/ 25, 30, 60, 75 hp (1/3 Phase @ 115, 230/200, 230, 460, 575V)
Maximum Operating Temperature 122°F
Mfr. Series XT IEC Series
Minimum Operating Temperature -13°F
Nema Enclosure Rating No Enclosure
Nominal Coil Voltage @ 60hz 240V AC
Notes Screw Terminals (6-65A), 5 mm (80-150A), No Lugs (185-2000A)
Number Of Poles 3
Operation Reversing
Overall Depth 5.08"
Overall Height 6.14"
Overall Width 6.54"
Product Name Eaton XT IEC contactor
Reversing Capability Reversing
Series Xt Series Series
Terminals Screw Terminals
Type Full Voltage Reversing Contactor
Warranty 1 yr.
Width 6.535"
Wire Termination Type Screw

Shipping Info:

Ship weight (kg) 4.41
Ship height (cm)15.6
Ship length (cm)12.9
Ship width (cm)16.6
Country of OriginUS

Product Variants

ProductModelNumber Of PolesFrame SizeReversing CapabilityMain Power Pole Contact FormAuxiliary Contacts IncludedNominal Coil Voltage @ 60hzHeightIncludes Auxiliary ContactsPrice
EATON XTCE115G00A IEC Contactor, 115A, 110 Vac 50 Hz, 120 Vac 60 Hz, 0No-0Nc, 115A, Frame G, 90 Mm | BH8XWB 4TZE9 XTCE115G00A3GNon-reversing3NONone120V AC3 4/5"No€1,204.16
EATON XTCE115G00B IEC Contactor, 115A, 190 Vac 50 Hz, 240 Vac 60 Hz, 0No-0Nc, 115A, Frame G, 90 Mm | BH8XWN 4TZF1 XTCE115G00B3GNon-reversing3NONone240V AC6.693"No€1,204.16
EATON XTCE115G00T IEC Contactor, 115A, 24 Vac, 50-60 Hz, 0No-0Nc, 115A, Frame G, 90 Mm, 50-60 Hz, 10 | BH8XWH 4TZF3 XTCE115G00T3GNon-reversing3NONone24V AC6.693"No€1,204.16
EATON XTCE115G00TD IEC Contactor, 115A, 24-27 Vdc, 0No-0Nc, 115A, Frame G, 90 Mm, 10, 25, 25/ 40, 50 | BH8XWP 4TZF2 XTCE115G00TD3GNon-reversing3NONone24V DC6.693"No€1,428.44
EATON XTCE115G00C IEC Contactor, 115A, 480 Vac 50 Hz, 500 Vac 60 Hz, 0No-0Nc, 115A, Frame G, 90 Mm | BH8XWA 21EP07 XTCE115G00C3GNon-reversing3NONone480V AC170 mmNo€1,110.61
EATON XTCR115G11A IEC Contactor, 115A, Top-Mounted, 110 Vac 50 Hz, 120 Vac 60 Hz, 1No-1Nc, 115A | BH8ZJH 4WUW9 XTCR115G11A3GReversing3NO1NO/1NC120V AC6"Yes€3,380.76
EATON XTCF125G00A IEC Contactor, 125A, 110 Vac 50 Hz, 120 Vac 60 Hz, 0No-0Nc, 125A, Frame G, 90 Mm | BH8YWG 4WUK3 XTCF125G00A4GNon-reversing4NONone120V AC6.693"No€1,465.45
