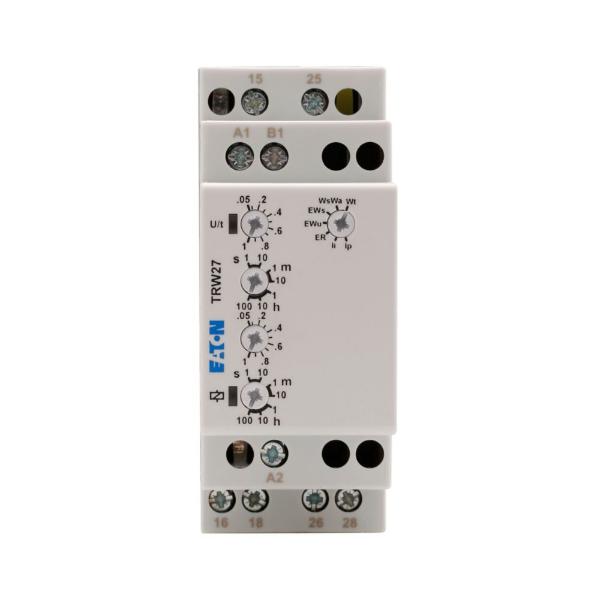

EATON TRW27 Relay | BH7THD 20XG06

EATON TRW27 Timing Relay, 0.05 S to 100 Hrs Setting, 12 to 240 VAC/VDC, Dpdt Contact, 2P

Item: BH7THDModel: TRW27Cross Ref: 20XG06
7 In Stock

Ships within 2 days via

€218.72
10.00% off
€196.85 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Relay
Adjustment Method Rotary Dip Switch
Body Depth 2.36"
Body Height 3.43"
Body Width 1.38"
Coil Voltage 12-240V AC/DC
Contact Configuration DPDT
Contact Form DPDT
Contact Material Silver Alloy
Contact Rating (ac) 8A @ 250V
Current Rating 8A
Delay Function Asymmetrical Flasher Pause Or Pulse First, On Delay, On/Off Delay With Control Contact, Pulse Sequence Monitoring, Single Shot Leading Or Trailing Edge Voltage Controlled And Control Contact
Electrical Connection Type Screw
Electrical Operating Durability 200000
Enclosure Material Plastic
Environmental Protection Enclosed
Frequency 50-60 Hz
Function Asymmetrical Flasher-Pause Or Pulse First On Delay Pulse Sequence Monitoring Single Shot Leading Or Trailing Edge Voltage Controlled And Control Contact On/Off Delay With Control Contact
Height 3.43"
Input Voltage 12-240V AC/DC
Ip Rating IP40
Length 2 14/25"
Maximum Operating Temperature 131°F
Maximum Time Setting 100 hrs.
Mechanical Operating Durability 20000000
Mfr. Series TR Series
Minimum Operating Temperature -13°F
Minimum Time Setting 0.05 sec.
Mounting Type Compact Din Rail
Number Of Delay Functions 4
Number Of Pins/terminals 16
Operating Time Accuracy Less Than 0.5% +/-5 Ms
Power Consumption 2 W/6 VA
Relay Mounting Style Din-Rail
Warranty Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First.
Width 1.38"

Shipping Info:

Ship weight (kg) 0.11
Ship height (cm)8.71
Ship length (cm)6.5
Ship width (cm)3.51
Country of OriginUS

Product Variants

ProductModelInput VoltageRelay Mounting StyleNumber Of Delay FunctionsElectrical Connection TypeContact FormNumber Of PinsHeightContact MaterialPrice
EATON TMR5P0512 Tmr5 Time Delay Relays, Octal Style Terminals, 11 Pins, Off Delay | BH7TBY TMR5P051212V AC/DC----11--€417.48
RFQ
EATON TMR6X00120 Tmr6 Time Delay Relays, Octal Style Terminals, 8 Pins, True Off Delay | BH7TFX TMR6X00120120V AC/DC----82 2/5"-€577.67
EATON TMR6X0024 Tmr6 Time Delay Relays, Octal Style Terminals, 8 Pins, True Off Delay | BH7TGA TMR6X002424V AC/DC----82 2/5"-€603.91
EATON TMR6X00240 Tmr6 Time Delay Relays, Octal Style Terminals, 8 Pins, True Off Delay | BH7TGF TMR6X00240240V AC/DC----82 2/5"-€577.67
EATON TMRP5101 Tmrp Timing Relay, Octal Style Terminals, 8 Pins, Control Switch Trigger | BH7TGH TMRP510112-240V AC/DC----81 22/25"90% Silver 10% Nickel€802.46
EATON TMRD1UN Plug In Solid State Timing Relay | BH7TGJ TMRD1UN--------€161.17
EATON TMRP5100 Tmrp Timing Relay, Octal Style Terminals, 11 Pins, Control Switch Trigger | BH7TGK TMRP510012-240V AC/DC----111 22/25"10% Nickel 90% Silver€575.68
