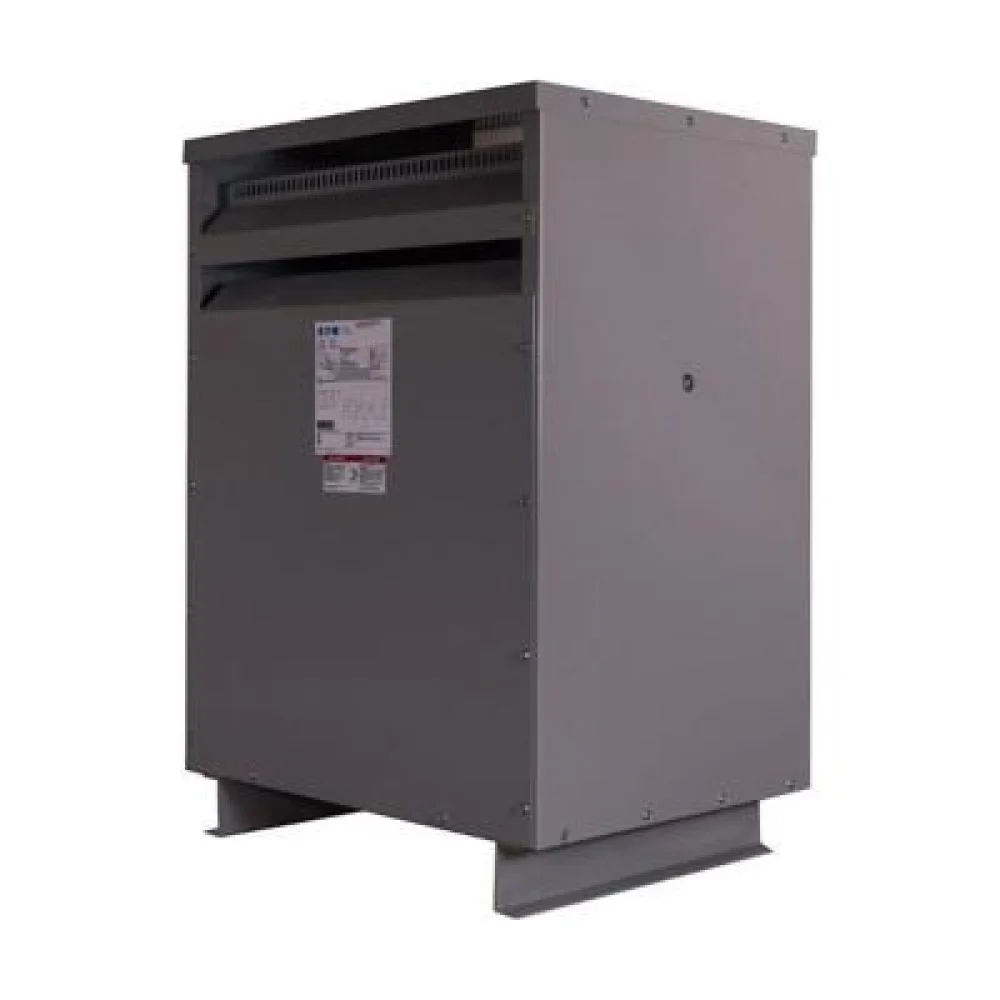

EATON T38M25S1516CU General Purpose Ventilated Transformer, Primary 380V, Secondary 220 Delta, 15 Kva, Copper
€4,146.46 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transformer |
| Coil Material | Copper |
| Frame | 816 |
| Frequency Rating | 60 Hz |
| Height | 31.3" |
| Length | 18.39" |
| Notes | NEMA TP-1 Efficient |
| Primary Voltage | 380V |
| Secondary Voltage | 220V |
| Tap Size | 2 at +2.5% FCAN, 4 at -2.5% FCBN |
| Temperature Rating | 150°C |
| Type | Dry Type Distribution Transformer |
| Volt Ampere Rating | 15 kVA |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Weathershield | WS11 |
| Width | 22.89" |
Product Variants
| Model | Primary Voltage | Secondary Voltage | Mounting Type | Material | Enclosure Type | Enclosure Material | Price | |
|---|---|---|---|---|---|---|---|---|
| MV48M12F4516CU | 480V | 120V | Floor, Wall, Upright Only | Copper | - | - | €10,683.51 | RFQ
|
| MV48M28F2216CU | 480V | 208Y/120V | Floor | Copper Windings | - | - | €35,376.58 | RFQ
|
| MV48M28F1216CU | 480V | 208Y/120V | Floor, Wall, Upright Only | Copper Windings | - | - | €19,291.93 | RFQ
|
| MV48M28F4516CU | 480V | 208Y/120V | Floor, Wall, Upright Only | Copper Windings | - | - | €10,683.51 | RFQ
|
| MV48M28F3016CU | 480V | 208Y/120V | Floor, Wall, Upright Only | Copper Windings | - | - | €8,604.72 | RFQ
|
| MV48M24F4516CU | 480V | 240V | Floor, Wall, Upright Only | Copper | - | - | €10,683.51 | RFQ
|
| MV48M28F7516CU | 480V | 208Y/120V | Floor, Wall, Upright Only | Copper Windings | - | - | €15,011.85 | RFQ
|
