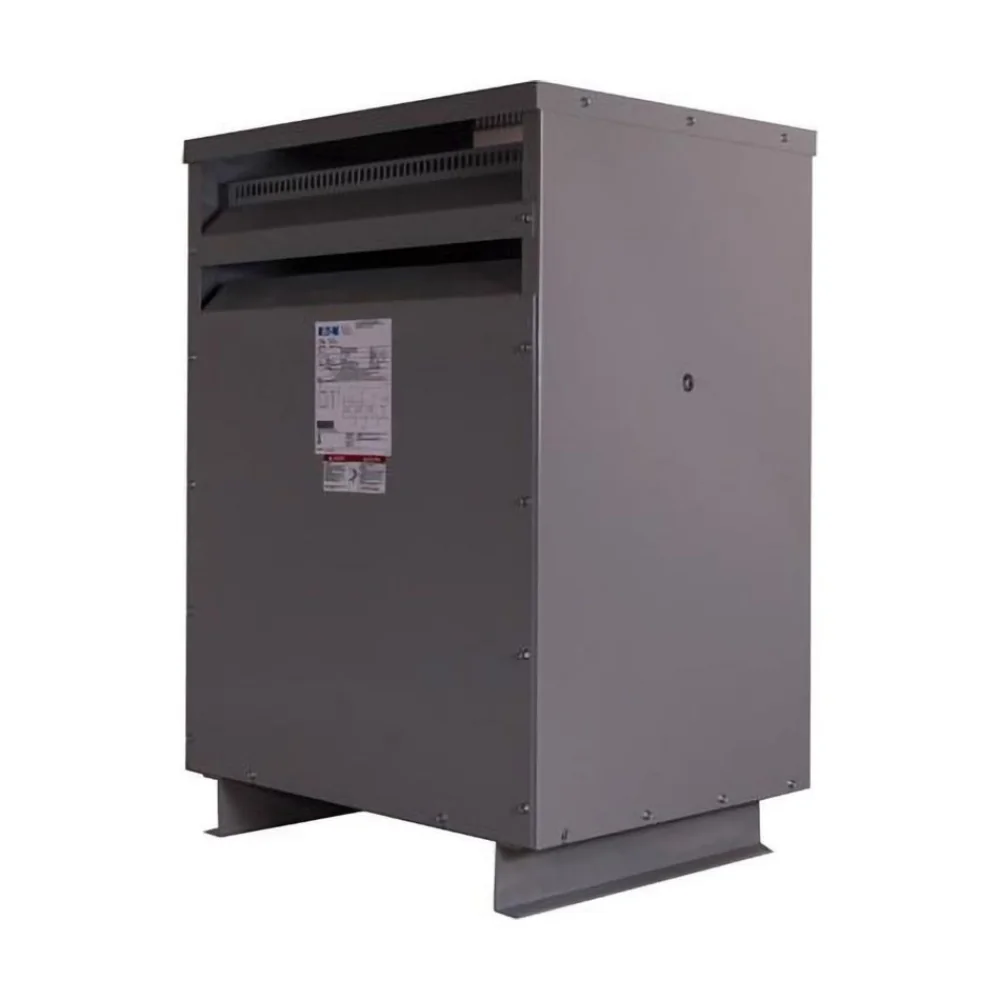

EATON MV48M28F7516CU General Purpose Ventilated Transformer, 3-Phase, Pv 480V Delta, Sv 208Y/120, 75 Kva
Get it by Friday, Aug 21
€15,011.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transformer |
| Coil Material | Copper |
| Frame | FR942 |
| Frequency | 60 Hz |
| Height | 43" |
| Insulation | 220 AAC |
| Kvar Rating | 75 kVA |
| Length | 24" |
| Material | Copper Windings |
| Mounting Type | Floor, Wall, Upright Only |
| Nema Enclosure Rating | NEMA 2 |
| Notes | 10 CFR Part 431 (2016) Efficient |
| Primary Voltage | 480V |
| Secondary Voltage | 208Y/120V |
| Sound Level | NEMA ST-20 |
| Tap Size | 2 at +2.5%, 4 at -2.5% |
| Temp. | 115°C |
| Type | Energy-efficient Marine Duty Transformer |
| Va | 75 kVA |
| Voltage | 480-208/120V AC |
| Weather Shield | WS59 |
| Width | 30 1/2" |
| Wiring Connection | 280B75M |
Shipping Info:
| Ship weight (kg) | 301.05 |
| Ship height (cm) | 109.22 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 77.47 |
Product Variants
| Product | Model | Height | Primary Voltage | Secondary Voltage | Coil Material | Temp. | Frequency | Va | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MV48M12F4516CU | 36 22/25" | 480V | 120V | Copper | 115°C | 60 Hz | 45 kVA | FR942 | €10,683.51 | |
 |
MV48M28F2216CU | 1.1" | 480V | 208Y/120V | Copper | 115°C | 60 Hz | 225 kVA | FR944 | €35,376.58 | |
 |
MV48M28F1216CU | 1.1" | 480V | 208Y/120V | Copper | 115°C | 60 Hz | 112.5 kVA | FR943 | €19,291.93 | |
 |
MV48M28F4516CU | 36 22/25" | 480V | 208Y/120V | Copper | 115°C | 60 Hz | 45 kVA | FR940 | €10,683.51 | |
 |
MV48M28F3016CU | 36 22/25" | 480V | 208Y/120V | Copper | 115°C | 60 Hz | 30 kVA | FR940 | €8,604.72 | |
 |
MV48M24F4516CU | 36 22/25" | 480V | 240V | Copper | 115°C | 60 Hz | 45 kVA | FR942 | €10,683.51 | |
 |
MV48M28F1516CU | 28" | 480V | 208Y/120V | Copper | 115°C | 60 Hz | 15 kVA | 939 | €6,637.28 |
