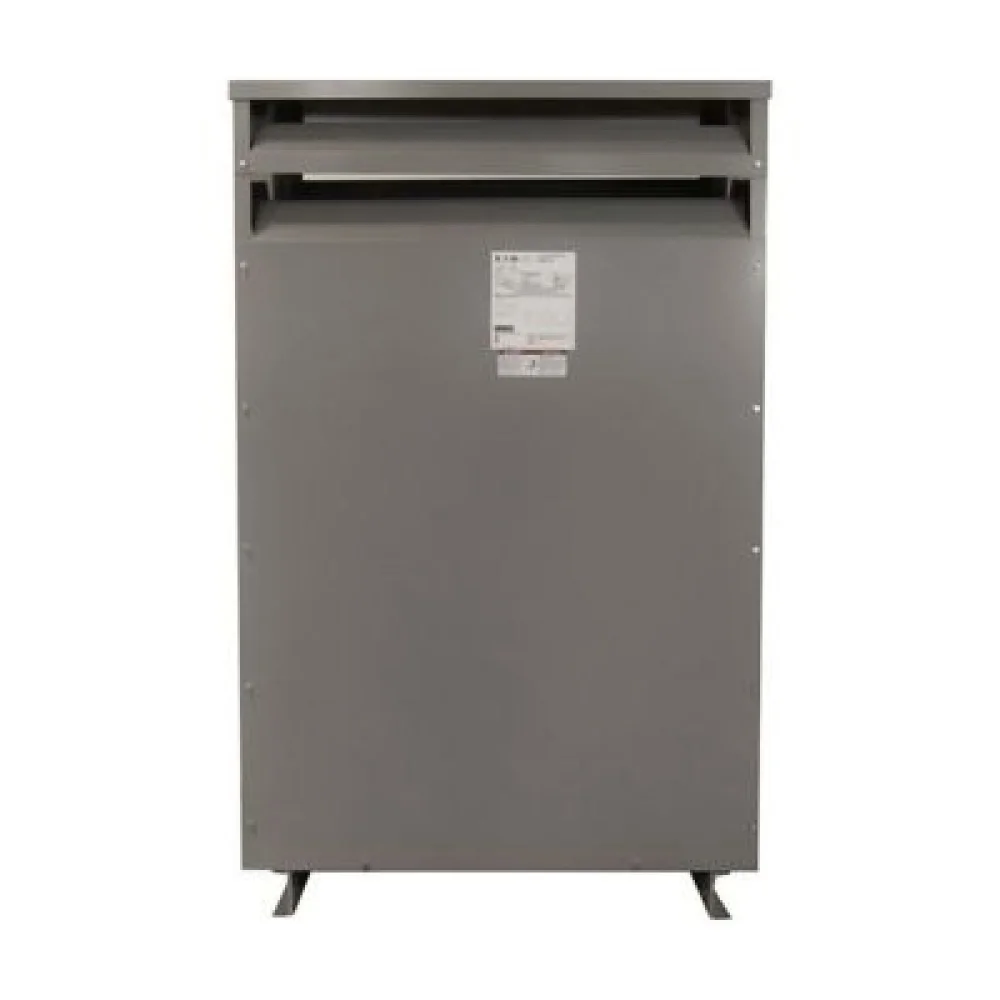

EATON N39M28T3016CU K-Factor Nonlinear Ventilated Transformer, Copper Windings, Nema 2, 60 Hz, 220?C | BH4ZTV

EATON N39M28T3016CU Nonlinear Ventilated Transformer, Copper Coil, 30 KVA, 3-Phase, 400 DeltaV, 208Y/120 VAC

Item: BH4ZTVModel: N39M28T3016CU
Check Availability
In Stock
VA Rating

Get it by Tuesday, Sep 1

€10,245.47 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Transformer
Coil Material Copper
Frequency 60 Hz
Height 36 22/25"
Insulation 220 AAC
Kva Rating 30 kVA
Length 21.13"
Material Copper
Modification 1 Electrostatic Shield
Mounting Floor Or Wall
Nema Enclosure Rating NEMA 2
Notes 10 CFR Part 431 (2016) Efficient
Phase 3
Primary Voltage 400V
Secondary Voltage 208Y/120V
Sound Level NEMA ST-20
Tap Size 2 At +2.5%, 4 At -2.5%
Temp. Rise 150°C
Type Energy-efficient Ventilated Transformer
Voltage 400-208V/120V
Width 24 22/25"

Shipping Info:

Ship weight (kg) 0.5
Ship height (cm)93.68
Ship length (cm)53.67
Ship width (cm)63.2

Product Variants

ProductModelHeightPrimary VoltageCoil MaterialSecondary VoltageKva RatingPhaseTemp. RiseFramePrice
EATON HT10P11S1516 K-Factor Nonlinear Ventilated Transformer, Kt-4, Pv 120 X 240V | BH3MCP HT10P11S151631.3"120/240VAluminum120/240V15 kVA1150°C816€3,510.94
EATON HT20P11B2516CU K-Factor Nonlinear Ventilated Transformer, Kt-4, Pv 240 X 480V | BH3MCQ HT20P11B2516CU37.59"240/480VCopper120/240V25 kVA180°C818€7,342.59
EATON HT20P11B1516 K-Factor Nonlinear Ventilated Transformer, Kt-4, Pv 240 X 480V | BH3MCR HT20P11B151631.3"240/480VAluminum120/240V15 kVA180°C816€3,916.30
EATON HT20P11B7516 K-Factor Nonlinear Ventilated Transformer, Kt-4, Pv 240 X 480V | BH3MCU HT20P11B751662 22/25"240/480VAluminum120/240V75 kVA180°C821€10,316.00
EATON HT20P11B7516CU K-Factor Nonlinear Ventilated Transformer, Kt-4, Pv 240 X 480V | BH3MCV HT20P11B7516CU62 22/25"240/480VCopper120/240V75 kVA180°C821€16,014.12
EATON HT20P11F05 K-Factor Transformer, Ventilated, K-4, Single-Phase, Pv 240 X 480V | BH3MCX HT20P11F0530 1/4"240/480VAluminum120/240V5 kVA1115°C815€4,475.28
EATON HT20P11F5016CU K-Factor Nonlinear Ventilated Transformer, Kt-4, Pv 240 X 480V | BH3MCZ HT20P11F5016CU42.03"240/480VCopper120/240V50 kVA1115°C-€10,364.27
