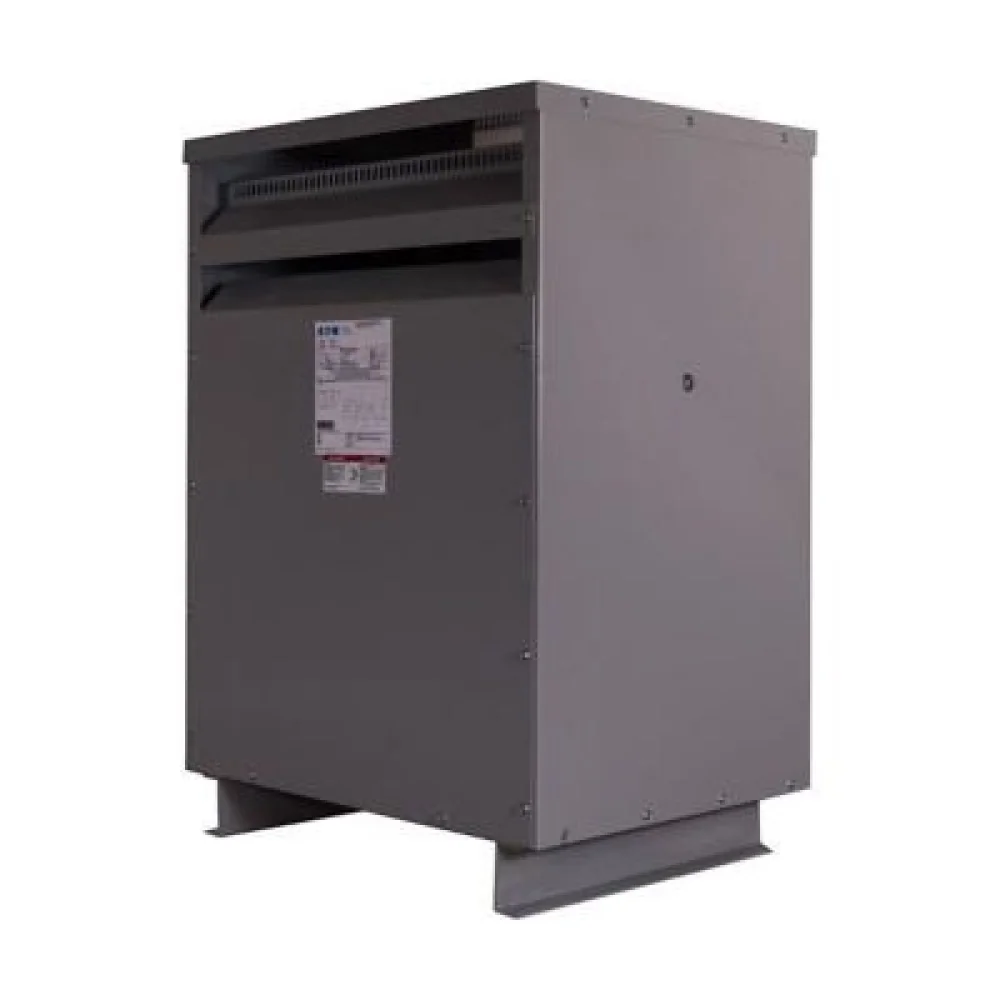

EATON MV48M28F55CUEE General Purpose Ventilated Transformer, Marine-Duty, Dt-3, Pv 480V, Sv 208Y/120V, 500 Kva
€96,585.07 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transformer |
| Coil Material | Copper |
| Frame | 919E |
| Height | 75" |
| Length | 36.23" |
| Nema Enclosure Rating | NEMA 2 |
| Notes | NEMA TP-1 Efficient |
| Primary Voltage | 480V |
| Secondary Voltage | 208 Y/120V |
| Tap Size | 2 at +2.5% FCAN, 4 at -2.5% FCBN |
| Type | Marine Duty Transformer |
| Volt Ampere Rating | 500 kVA |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 44 1/5" |
Product Variants
| Model | Primary Voltage | Secondary Voltage | Mounting Type | Material | Enclosure Type | Enclosure Material | Price | |
|---|---|---|---|---|---|---|---|---|
| MV48M12F4516CU | 480V | 120V | Floor, Wall, Upright Only | Copper | - | - | €10,683.51 | RFQ
|
| MV48M28F2216CU | 480V | 208Y/120V | Floor | Copper Windings | - | - | €35,376.58 | RFQ
|
| MV48M28F1216CU | 480V | 208Y/120V | Floor, Wall, Upright Only | Copper Windings | - | - | €19,291.93 | RFQ
|
| MV48M28F4516CU | 480V | 208Y/120V | Floor, Wall, Upright Only | Copper Windings | - | - | €10,683.51 | RFQ
|
| MV48M28F3016CU | 480V | 208Y/120V | Floor, Wall, Upright Only | Copper Windings | - | - | €8,604.72 | RFQ
|
| MV48M24F4516CU | 480V | 240V | Floor, Wall, Upright Only | Copper | - | - | €10,683.51 | RFQ
|
| MV48M28F7516CU | 480V | 208Y/120V | Floor, Wall, Upright Only | Copper Windings | - | - | €15,011.85 | RFQ
|
