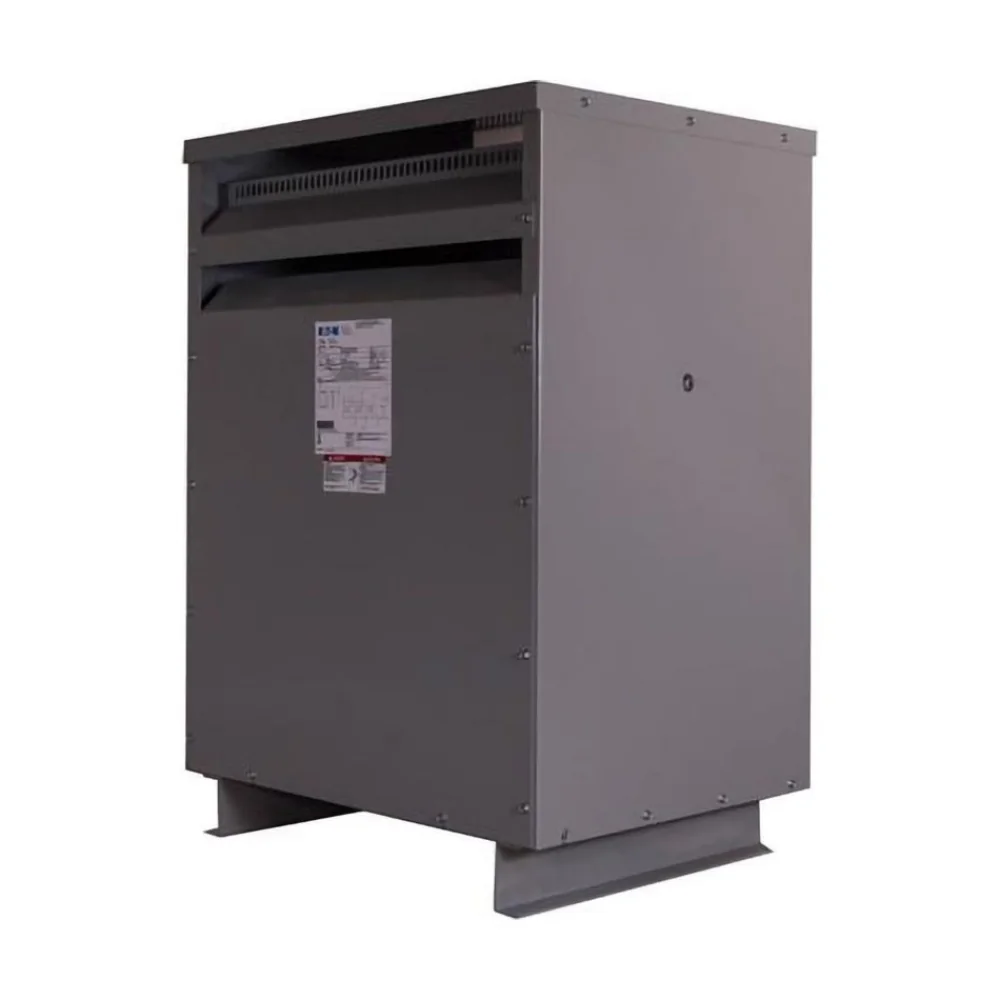

EATON MV48M28F4916CU General Purpose Ventilated Transformer, Copper Coil, 150 Kva, 480 Vac-208Y/120 Vac, 60 Hz
€24,990.06 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transformer |
| Coil Material | Copper |
| Frame | 943 |
| Frequency Rating | 60 Hz |
| Height | 51" |
| Insulation | 220 AAC |
| Kvar Rating | 150 kVA |
| Length | 31 1/2" |
| Material | Copper Windings |
| Mounting Type | Floor, Wall, Upright Only |
| Nema Enclosure Rating | NEMA 2 |
| Notes | 10 CFR Part 431 (2016) Efficient |
| Primary Voltage | 480V |
| Secondary Voltage | 208Y/120V |
| Sound Level | NEMA ST-20 |
| Tap Size | 2 at +2.5%, 4 at -2.5% |
| Temperature Rating | 115°C |
| Type | Energy-efficient Marine Duty Type DT-3M Transformer |
| Volt Ampere Rating | 150 kVA |
| Voltage Rating | 480-208/120V AC |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Weathershield | WS60 |
| Width | 34 1/2" |
| Wiring Connection | 280B49M |
Product Variants
| Model | Primary Voltage | Secondary Voltage | Mounting Type | Material | Enclosure Type | Enclosure Material | Price | |
|---|---|---|---|---|---|---|---|---|
| MV48M12F4516CU | 480V | 120V | Floor, Wall, Upright Only | Copper | - | - | €10,683.51 | RFQ
|
| MV48M28F2216CU | 480V | 208Y/120V | Floor | Copper Windings | - | - | €35,376.58 | RFQ
|
| MV48M28F1216CU | 480V | 208Y/120V | Floor, Wall, Upright Only | Copper Windings | - | - | €19,291.93 | RFQ
|
| MV48M28F4516CU | 480V | 208Y/120V | Floor, Wall, Upright Only | Copper Windings | - | - | €10,683.51 | RFQ
|
| MV48M28F3016CU | 480V | 208Y/120V | Floor, Wall, Upright Only | Copper Windings | - | - | €8,604.72 | RFQ
|
| MV48M24F4516CU | 480V | 240V | Floor, Wall, Upright Only | Copper | - | - | €10,683.51 | RFQ
|
| MV48M28F7516CU | 480V | 208Y/120V | Floor, Wall, Upright Only | Copper Windings | - | - | €15,011.85 | RFQ
|
