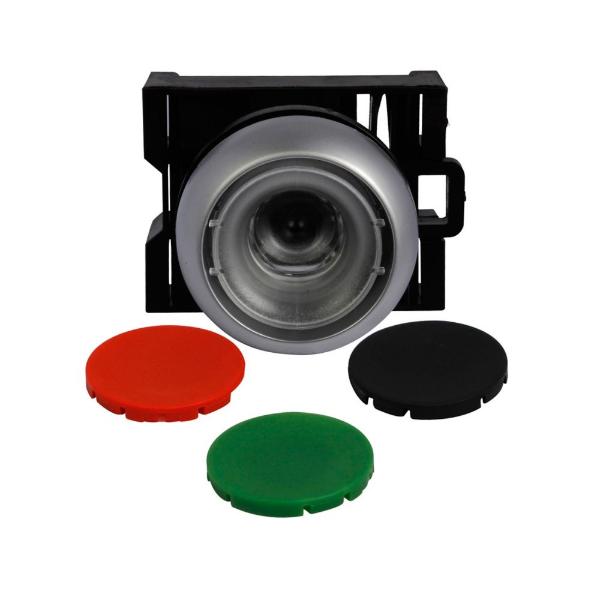

EATON M22-D-X-SRG Flush Push Button, Black, Green, Red, 22mm
Item: BH4RNZModel: M22-D-X-SRGCross Ref: 60JN39
7 In Stock
Ships within 2 days via
5.00% off
€22.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button Operator |
| Action | Momentary |
| Actuator Color | Black, Green, Red |
| Actuator Function | Momentary |
| Actuator Type | Flush, button |
| Bezel | Silver |
| Bezel Material | Silver |
| Button Color | Black, Green, Red |
| Features | Field Convertible From Momentary To Maintained, Includes Contact Block Mounting Adapter |
| Head Material | Plastic |
| Head/lens Color | Black, Green, Red |
| Height | 1 1/2" |
| Illumination | Non-illuminated |
| Ip Rating | IP67, IP69K |
| Length | 7" |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Mounting Type | Flush |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Notes | Includes Contact Block Mounting Adapter. Buttonless Operator, Comes With Three Color Buttons. |
| Operating Cycles | 5 million |
| Operating Mode | Momentary |
| Operator Illumination | Non Illuminated |
| Operator Material | Polycarbonate |
| Overall Depth | 2" |
| Overall Height | 1" |
| Overall Width | 1" |
| Panel Mounting Hole Dia. | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Terminal Connection | Screw Clamp |
| Type | Push Button |
| Width | 5" |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Bezel | Illumination | Actuator Function | Notes | Nema Enclosure Rating | Ip Rating | Operating Cycles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M22-D4-S-X7 | 2" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP67, IP69K | - | €336.83 | |
 |
M22-D4-S | 1 1/2" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP67, IP69K | - | €324.48 | |
|
M22-D4-S-ETCH | 1 1/2" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. When Ordering, Specify Inscription Per Catalog Number Suffix From The Symbols Library. | - | - | - | €288.13 | |
 |
M22-D-G-B100 | 14" | - | - | - | - | - | - | - | €1,497.35 | |
 |
M22-D-G-GB1 | 4" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | NEMA 4X NEMA 13 | - | 5 million | €28.27 | |
 |
M22-DG-G | 4" | Silver Guarded | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | - | - | 5 million | €44.98 | |
 |
M22-DGH-R | 1 1/2" | Silver Guarded | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP67, IP69K | 5 million | €43.77 |
