EATON M22 Series Pushbutton Operators
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1| Style | Model | Height | Bezel | Illumination | Actuator Function | Notes | Nema Enclosure Rating | Ip Rating | Operating Cycles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

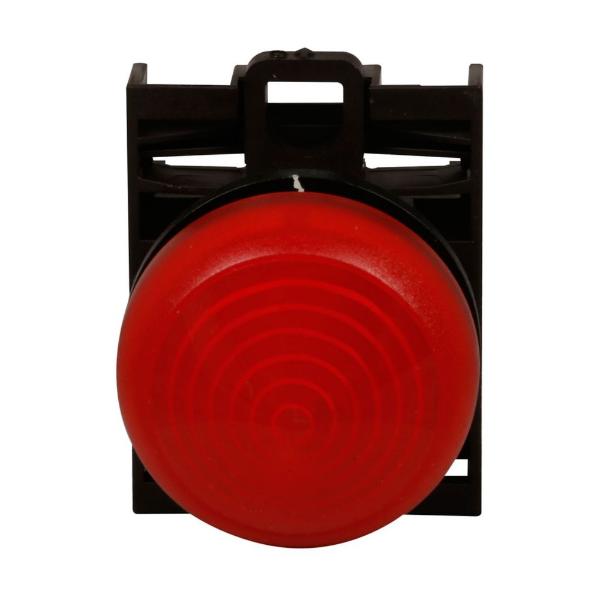

| A | M22-LH-R | - | - | - | - | - | - | - | - | €26.63 | |
| B | M22-D-R-B100 | - | - | - | - | - | - | - | - | €1,427.67 | |

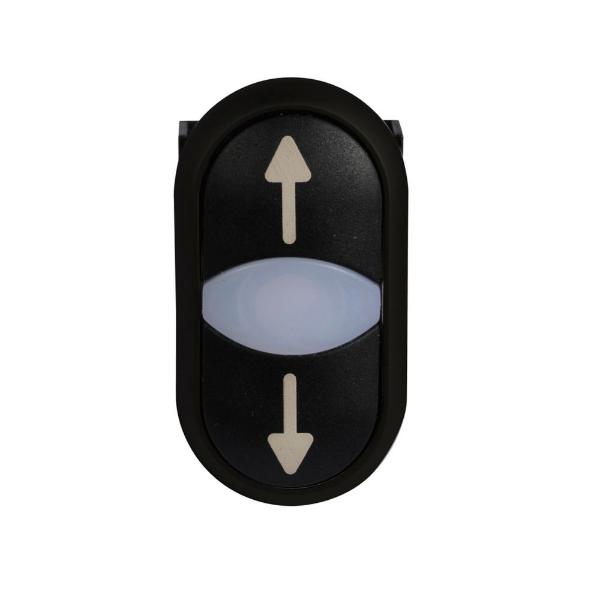

| C | M22S-DDL-S-X7-X7 | 0.05" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. | IP66, NEMA 4X, NEMA 13 | IP66 | Light: 100,000, button: 200,000 | €71.49 | |

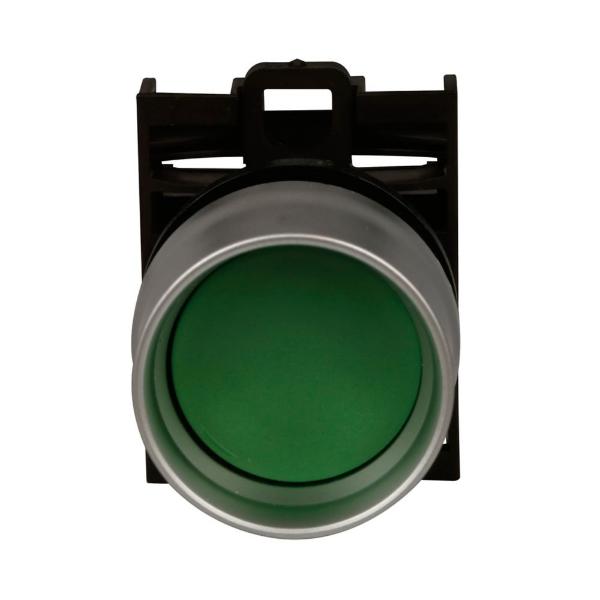

| D | M22-DG-S | 0.1" | Silver Guarded | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | - | 5 million | €43.59 | |

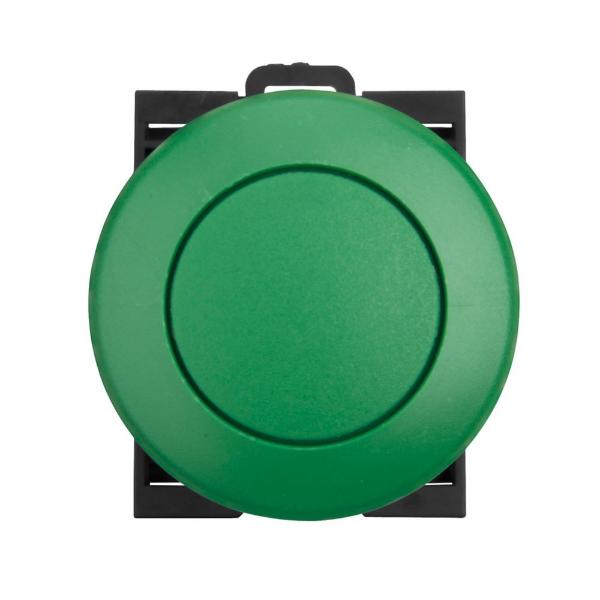

| E | M22S-DP-G | 0.1" | Black | Non-illuminated | Maintained | - | NEMA 13 NEMA 4X | IP67, IP69K | 1 million | €28.03 | |

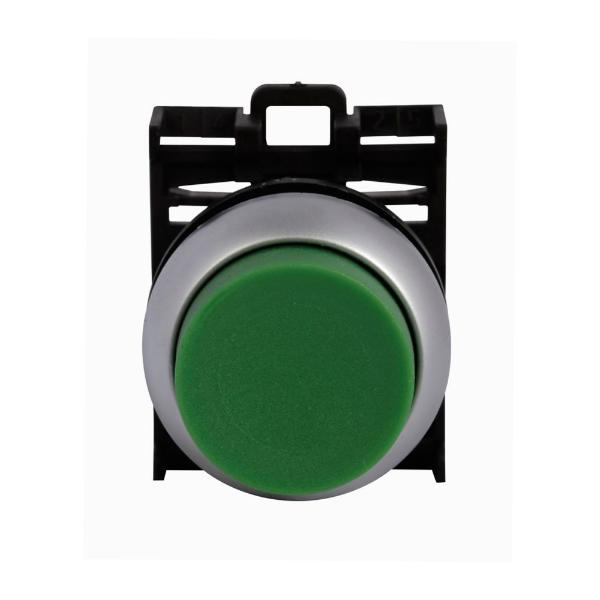

| F | M22-DH-G | 0.1" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP67, IP69K | 5 million | €24.99 | |

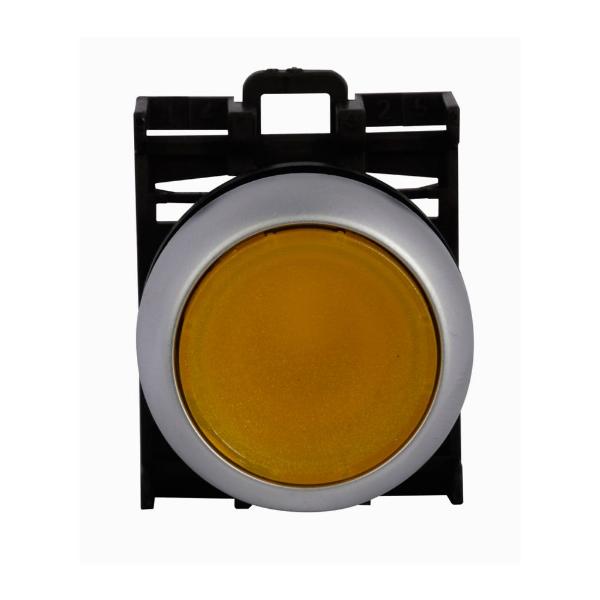

| G | M22-DRL-A | 0.39" | Silver | Illuminated | Maintained | Includes Contact Block Mounting Adapter. | IP67, IP69K, NEMA 4X, NEMA 13 | IP67, IP69K | 1 million | €31.99 | |

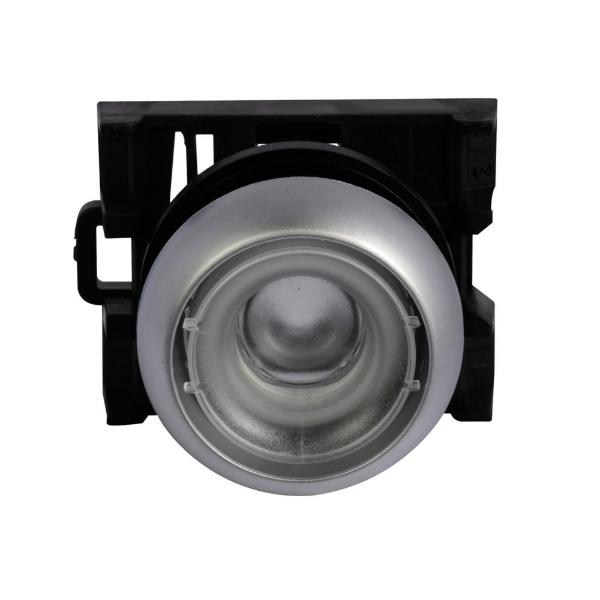

| H | M22-DL-X | 0.39" | Silver | Illuminated | Momentary | Includes Contact Block Mounting Adapter. | - | IP67, IP69K | 5 million | €21.62 | |
| G | M22-DL-A | 0.39" | Silver | Illuminated | Momentary | Includes Contact Block Mounting Adapter. | - | IP67, IP69K | 5 million | €31.62 | |

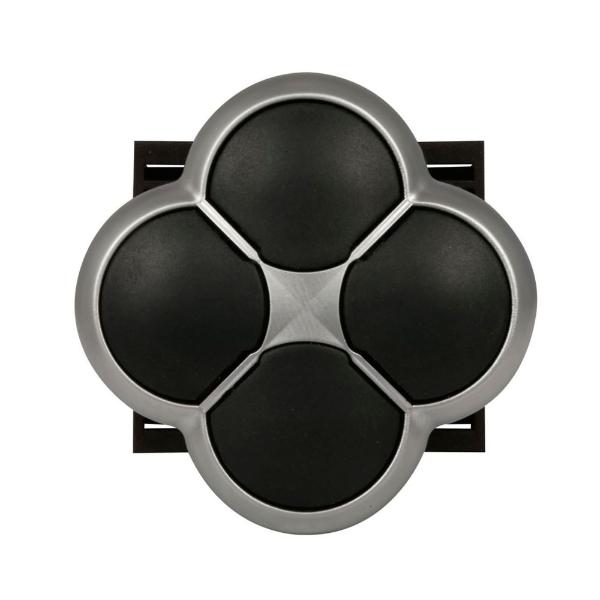

| I | M22-DI4-S-X7 | 0.45" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | - | - | - | €344.79 | |
| B | M22-YED0026 | 0.45" | Silver | Illuminated | Momentary | Assembly For Motivepower | IP67, IP69K, NEMA 4X, NEMA 13 | IP67, IP69K | - | €220.44 | |
| B | M22-YED0014 | 0.45" | - | - | - | - | - | - | - | €483.67 | |

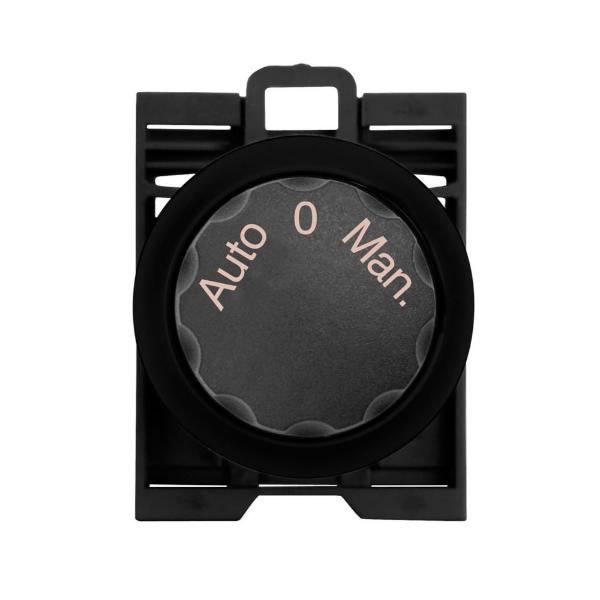

| J | M22S-WR3-X94 | 0.93" | Black | Non-illuminated | Maintained | Includes Contact Block Mounting Adapter. When Ordering, Specify Inscription Per Catalog Number Suffix From The Symbols Library. | IP66, NEMA 4X, NEMA 13 | IP66 | 100000 | €26.13 | |

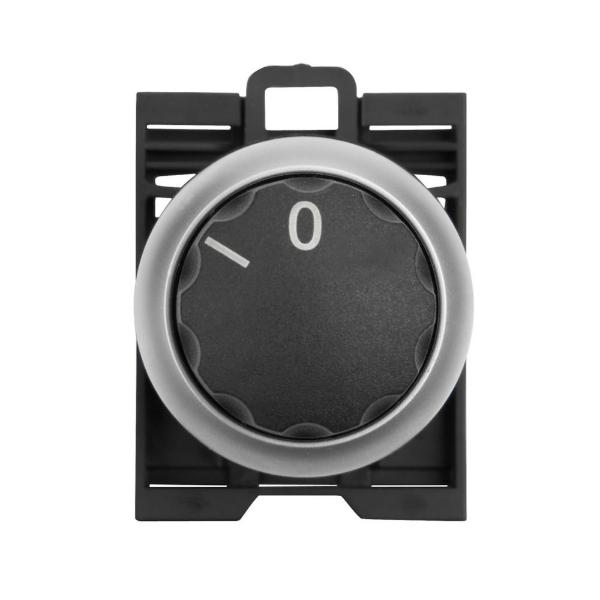

| K | M22-W | 1 1/2" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. Can Be Converted In The Field To Maintained Operation With The Removal Of A Color Coded Adapter. | - | - | 100000 | €59.06 | |
| L | M22S-DDLM-GR-ETCH | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. When Ordering, Specify Inscription Per Catalog Number Suffix From The Symbols Library. | IP66, NEMA 4X, NEMA 13 | IP66 | - | €63.02 | |
| L | M22S-DDLM-GR | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. | IP66, NEMA 4X, NEMA 13 | IP66 | - | €69.45 | |
| M | M22S-DDL-GR-GB1-GB0 | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. | - | IP66 | Light: 100,000, button: 200,000 | €59.40 | |
| N | M22S-DDLF-WS | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. | IP66, NEMA 4X, NEMA 13 | IP66 | - | €61.22 | |
| O | M22S-DDL-GR-X1-X0 | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. | IP66, NEMA 4X, NEMA 13 | IP66 | Light: 100,000, button: 200,000 | €71.32 | |
| N | M22S-DDLM-WS | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. | IP66, NEMA 4X, NEMA 13 | IP66 | - | €63.02 | |
| N | M22S-DDLM-WS-ETCH | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. When Ordering, Specify Inscription Per Catalog Number Suffix From The Symbols Library. | IP66, NEMA 4X, NEMA 13 | IP66 | - | €63.02 | |
| P | M22S-DDLM-WS-X1-X0 | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. | IP66, NEMA 4X, NEMA 13 | IP66 | - | €63.02 | |
| N | M22S-DDLF-WS-ETCH | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. When Ordering, Specify Inscription Per Catalog Number Suffix From The Symbols Library. | IP66, NEMA 4X, NEMA 13 | IP66 | - | €63.02 | |
| Q | M22S-DDL-S | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. | - | IP66 | Light: 100,000, button: 200,000 | €69.45 | |
| O | M22S-DDLM-GR-X1-X0 | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. | IP66, NEMA 4X, NEMA 13 | IP66 | - | €63.02 | |
| N | M22S-DDL-WS | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. | IP66, NEMA 4X, NEMA 13 | IP66 | Light: 100,000, button: 200,000 | €93.98 | |

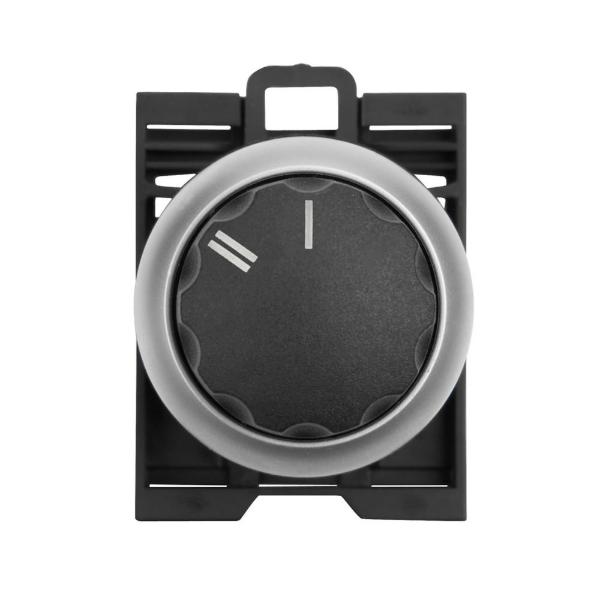

| R | M22-WR-X92 | 1 1/2" | Silver | Non-illuminated | Maintained | Includes Contact Block Mounting Adapter. | IP66, NEMA 4X, NEMA 13 | IP66 | 100000 | €31.84 | |
| N | M22S-DDL-WS-ETCH | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. When Ordering, Specify Inscription Per Catalog Number Suffix From The Symbols Library. | - | IP66 | - | €63.02 | |

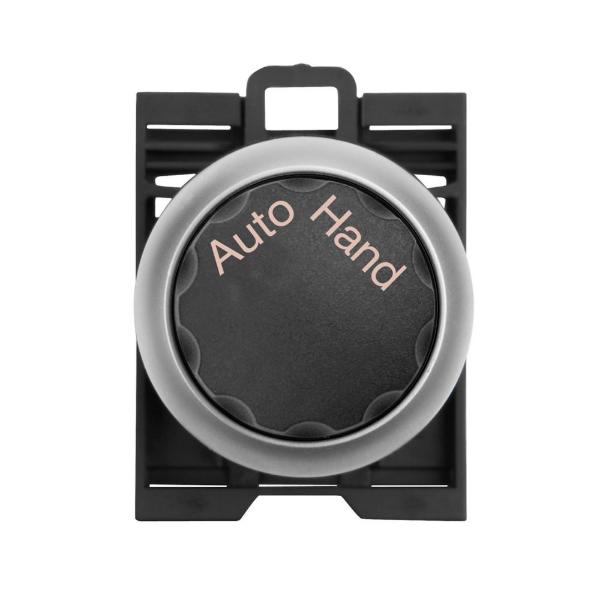

| S | M22-WR-X91 | 1 1/2" | Silver | Non-illuminated | Maintained | Includes Contact Block Mounting Adapter. | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP66, IP67, IP69K | 100000 | €42.50 | |
| P | M22S-DDLF-WS-X1-X0 | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. | IP66, NEMA 4X, NEMA 13 | IP66 | - | €63.02 | |
| T | M22S-D4-S-X7 | 1 1/2" | Black | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | - | - | - | €285.25 | |
| L | M22S-DDL-GR-ETCH | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. When Ordering, Specify Inscription Per Catalog Number Suffix From The Symbols Library. | IP66, NEMA 4X, NEMA 13 | IP66 | - | €63.02 | |
| U | M22M-WR3-X94 | 1 1/2" | Metal | Non-illuminated | - | - | NEMA 4X NEMA 13 | IP67, IP69K, IP66 | - | €31.84 | |
| B | M22M-W | 1 1/2" | Metal | Non-illuminated | - | - | NEMA 13 NEMA 4X | IP67, IP69K, IP66 | - | €49.00 | |
| V | M22M-W3 | 1 1/2" | Metal | Non-illuminated | - | - | NEMA 13 NEMA 4X | IP67, IP69K, IP66 | - | €69.74 | |
| U | M22M-WR3-ETCH | 1 1/2" | Metal | Non-illuminated | - | - | NEMA 13 NEMA 4X | IP67, IP69K, IP66 | - | €31.84 | |

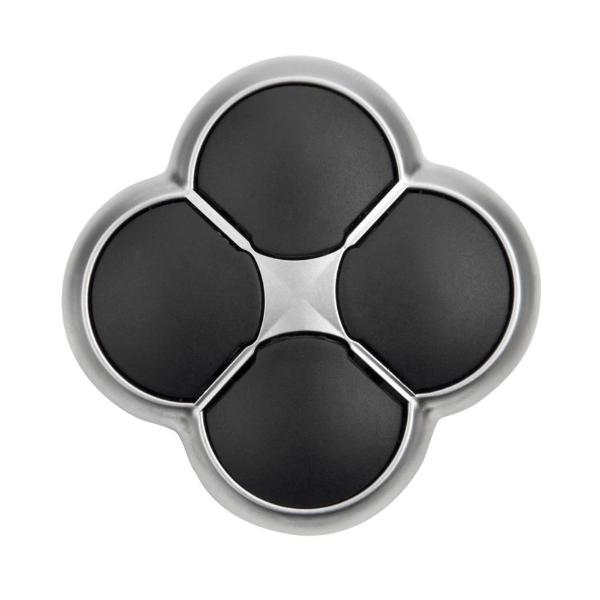

| W | M22-D4-S | 1 1/2" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP67, IP69K | - | €324.48 | |
| X | M22M-WR3 | 1 1/2" | Metal | Non-illuminated | - | - | NEMA 13 NEMA 4X | IP67, IP69K, IP66 | - | €49.40 | |

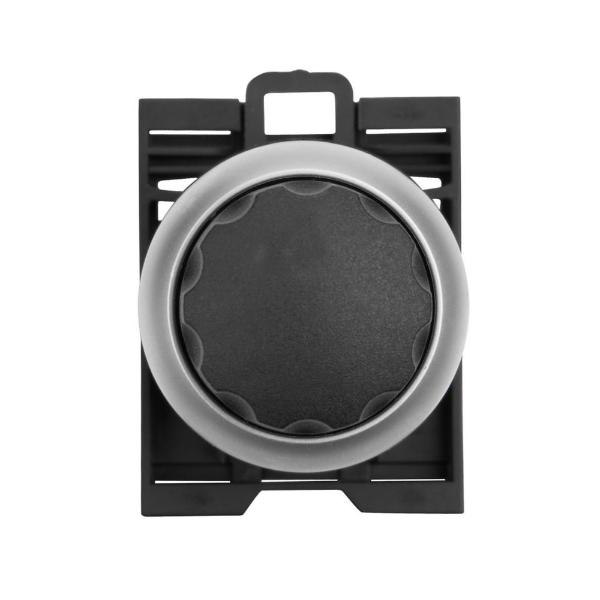

| U | M22M-WR-ETCH | 1 1/2" | Metal | Non-illuminated | - | - | NEMA 13 NEMA 4X | IP67, IP69K, IP66 | - | €33.57 | |
| X | M22M-WR | 1 1/2" | Metal | Non-illuminated | - | - | NEMA 13 NEMA 4X | IP67, IP69K, IP66 | - | - | RFQ
|
| Y | M22S-DH-W | 1 1/2" | Black | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | IP67, IP69K, NEMA 4X, NEMA 13 | IP67, IP69K | 5 million | €13.55 | |
| U | M22M-WR-X91 | 1 1/2" | Metal | Non-illuminated | - | - | NEMA 13 NEMA 4X | IP67, IP69K, IP66 | - | €35.02 | |
| U | M22M-WR-X92 | 1 1/2" | Metal | Non-illuminated | - | - | - | IP67, IP69K, IP66 | - | - | RFQ
|
| Z | M22S-D4-S | 1 1/2" | Black | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | - | - | - | €280.93 | |
| Z | M22S-D4-S-ETCH | 1 1/2" | Black | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. When Ordering, Specify Inscription Per Catalog Number Suffix From The Symbols Library. | - | - | - | €285.25 | |
| L | M22S-DDLF-GR | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. | IP66, NEMA 4X, NEMA 13 | IP66 | Light: 100,000, button: 200,000 | €61.22 | |
| O | M22S-DDLF-GR-X1-X0 | 1 1/2" | Black | Illuminated | Momentary | Includes Contact Block Mounting Adapter. | IP66, NEMA 4X, NEMA 13 | IP66 | - | €64.24 | |
| A1 | M22S-DH-B | 1 1/2" | Black | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | IP67, IP69K, NEMA 4X, NEMA 13 | IP67, IP69K | 5 million | €16.51 | |
| B | M22S-DH-X-SRG | 1 1/2" | Black | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | IP67, IP69K, NEMA 4X, NEMA 13 | IP67, IP69K | 5 million | €20.86 | |
| B1 | M22S-DH-R-X0 | 1 1/2" | Black | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | IP67, IP69K, NEMA 4X, NEMA 13 | IP67, IP69K | 5 million | €16.72 | |
| C1 | M22S-DRP-Y-X | 1 1/2" | Black | Non-illuminated | Maintained | 35 mm Diameter Mushroom Head Button. Maintained Pushbuttons Can Be Converted In The Field To Momentary Operation By Switching The Locking Ring, Which Is Accessible Through The Side Of The Operator Body. | NEMA 4X NEMA 13 | IP67, IP69K | 1 million | €77.09 | |

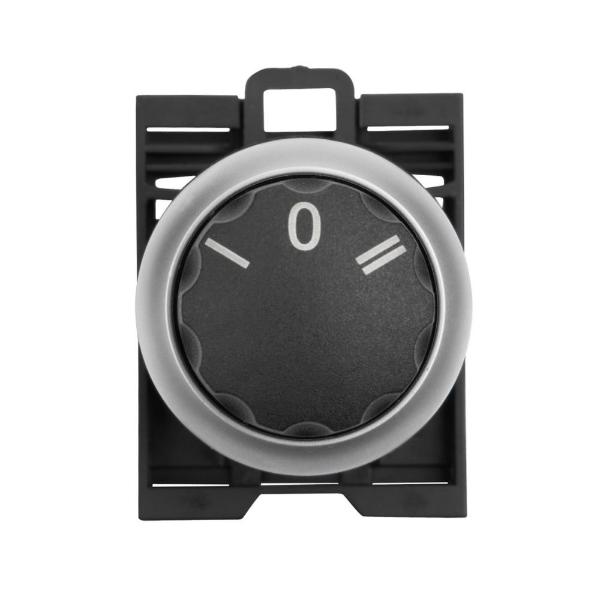

| D1 | M22-WR3 | 1 1/2" | Silver | Non-illuminated | Maintained | Includes Contact Block Mounting Adapter. | IP66, NEMA 4X, NEMA 13 | - | 100000 | €30.35 | |
| B | M22S-DRH-X-SWRGYB | 1 1/2" | Black | Non-illuminated | Maintained | Includes Contact Block Mounting Adapter. | IP67, IP69K, NEMA 4X, NEMA 13 | IP67, IP69K | 1 million | €26.89 | |

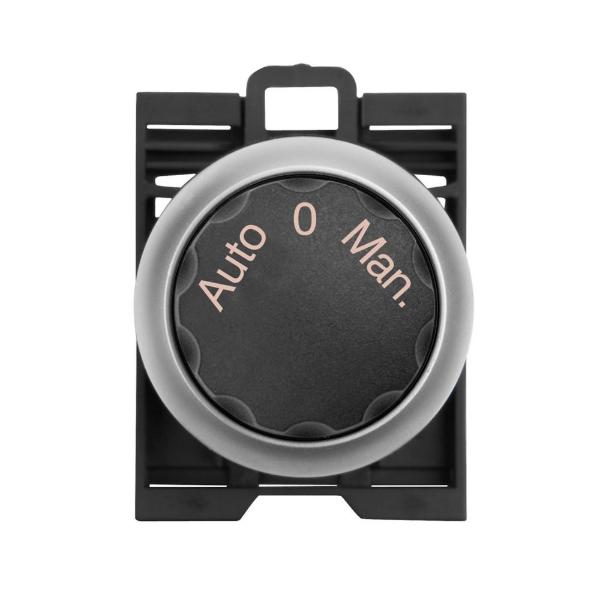

| E1 | M22-WR3-X94 | 1 1/2" | Silver | Non-illuminated | Maintained | Includes Contact Block Mounting Adapter. | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP66, IP67, IP69K | 100000 | €38.50 | |
| E | M22S-DRP-G | 1 1/2" | Black | Non-illuminated | Maintained | 35 mm Diameter Mushroom Head Button. Maintained Pushbuttons Can Be Converted In The Field To Momentary Operation By Switching The Locking Ring, Which Is Accessible Through The Side Of The Operator Body. | NEMA 13 NEMA 4X | IP67, IP69K | 1 million | €79.24 | |
| F1 | M22S-DRP-S-X | 1 1/2" | Black | - | Maintained | 35 mm Diameter Mushroom Head Button. Maintained Pushbuttons Can Be Converted In The Field To Momentary Operation By Switching The Locking Ring, Which Is Accessible Through The Side Of The Operator Body. | NEMA 13 NEMA 4X | IP67, IP69K | 1 million | €87.19 | |
| G1 | M22S-DRP-R-X | 1 1/2" | Black | - | Maintained | 35 mm Diameter Mushroom Head Button. Maintained Pushbuttons Can Be Converted In The Field To Momentary Operation By Switching The Locking Ring, Which Is Accessible Through The Side Of The Operator Body. | NEMA 13 NEMA 4X | IP67, IP69K | 1 million | €87.43 | |

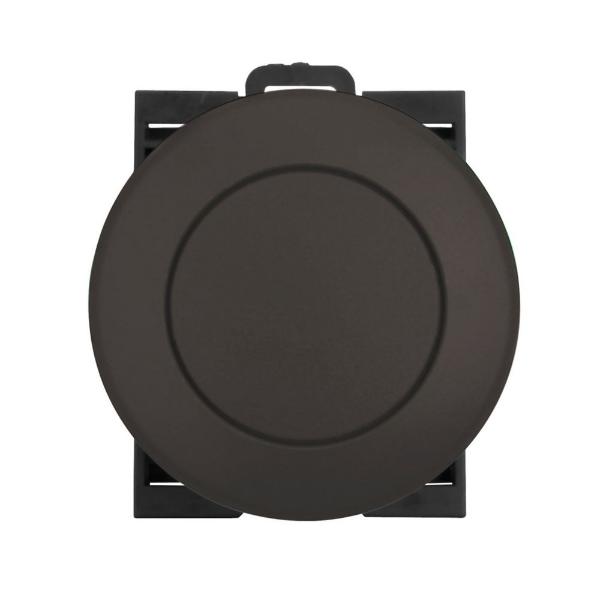

| H1 | M22S-DRP-S | 1 1/2" | Black | - | Maintained | 35 mm Diameter Mushroom Head Button. Maintained Pushbuttons Can Be Converted In The Field To Momentary Operation By Switching The Locking Ring, Which Is Accessible Through The Side Of The Operator Body. | NEMA 4X NEMA 13 | IP67, IP69K | 1 million | €100.33 | |

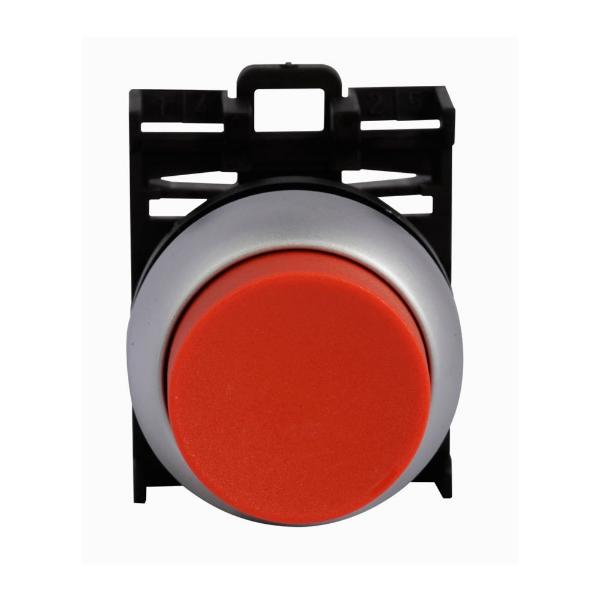

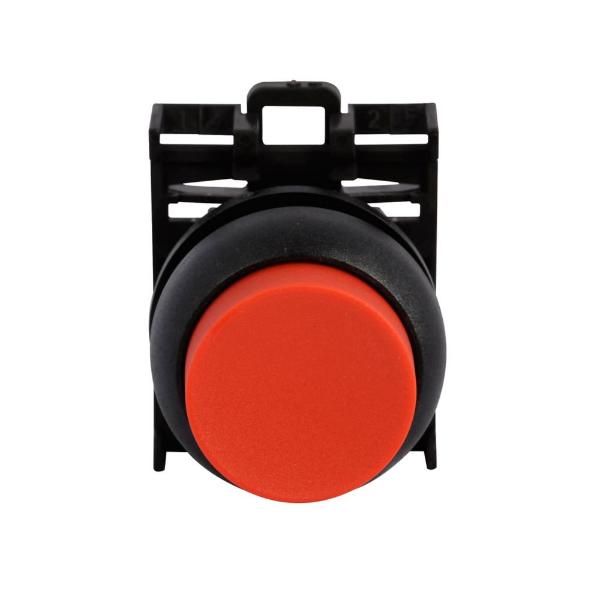

| I1 | M22S-DRH-R | 1 1/2" | Black | Non-illuminated | Maintained | Includes Contact Block Mounting Adapter. | IP67, IP69K, NEMA 4X, NEMA 13 | IP67, IP69K | 1 million | €22.56 | |
| J1 | M22S-W | 1 1/2" | Black | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. Can Be Converted In The Field To Maintained Operation With The Removal Of A Color Coded Adapter. | IP66, NEMA 4X, NEMA 13 | IP66 | 100000 | €20.26 | |

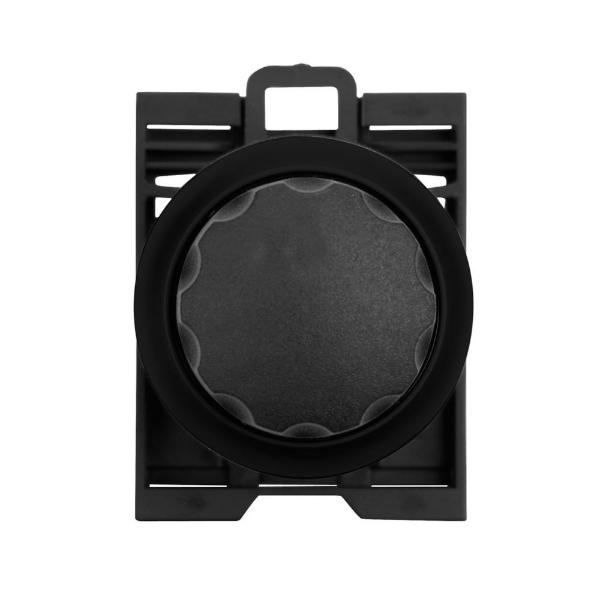

| K1 | M22S-WR-ETCH | 1 1/2" | Black | Non-illuminated | Maintained | Includes Contact Block Mounting Adapter. When Ordering, Specify Inscription Per Catalog Number Suffix From The Symbols Library. | IP66, NEMA 4X, NEMA 13 | IP66 | 100000 | €28.77 |
