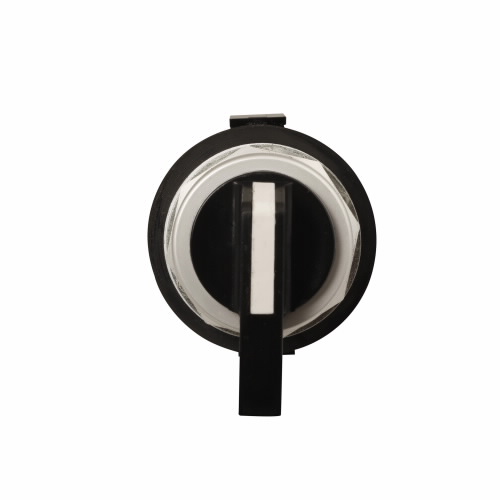

EATON HT8JVH1DAA5 Non-Illuminated Selector Switch, 30mm Size, 3 Position, Maintained/Maintained/Momentary
Item: BH3NVQModel: HT8JVH1DAA5Cross Ref: 12Y228
7 In Stock
Ships within 2 days via
10.00% off
€227.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Selector Switch |
| Ac Contact Rating | 10A @ 600V |
| Action | Maintained/Maintained/Momentary |
| Actuator Color | Black |
| Actuator Type | Lever |
| Bezel Material | Aluminum |
| Cam | 1D |
| Contact Block Material | Metal |
| Contact Configuration | 2 NO |
| Contact Form | 2NO |
| Dc Contact Rating | 5A @ 250V |
| Hazardous Location Specification | Not Rated |
| Height | 1 2/5" |
| Illumination | Non-Illuminated |
| Ip Rating | IP68 |
| Length | 5.53" |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Number Of Positions | 3 |
| Operating Mode | Momentary, Maintained |
| Operator Head Color | Black |
| Operator Head Material | Polymer |
| Operator Illumination | Non Illuminated |
| Overall Depth | 5.53" |
| Overall Height | 1 2/5" |
| Panel Mounting Hole Diameter | 30 mm |
| Series | Ht800 Series |
| Standards | Csa, Ul Listed |
| Switch Function @ 1st Position | On |
| Switch Function @ 2nd Position | Off |
| Switch Function @ 3rd Position | On |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Head Type | Extended Lever |
| Type | 30.5 mm, Watertight/Oiltight-HT800 |
| Warranty | 1 yr. |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 14.05 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Positions | Contact Form | Cam | Height | Bezel Material | Ip Rating | Operator Head Material | Bezel | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HT8JAH3AAA5 | 2 | 2NO | 3A | 5" | Chrome | IP68 | Polymer | Chrome | €178.78 | |
|
HT8JAH3AA5 | 2 | 1NO | 3A | 5" | Chrome | IP68 | Polymer | Chrome | €180.98 | |
 |
HT8JBH1DAA5 | 3 | 1NO | 1A | 2 1/4" | Chrome | IP68 | Polymer | Chrome | €219.20 | |
 |
HT8JAH3AF1Q1 | 2 | 1NO/1NC | 3A | 5" | Chrome | IP68 | Polymer | Chrome | €268.52 | |
 |
HT8JCH8EF1Q1 | 4 | 2NO, 2NC | 8E | 1 2/5" | Chrome | IP68 | Polymer | Chrome | €312.74 | |
|
HT8JBH1DF1Q1 | 3 | 2NO, 2NC | 1D | 5" | Chrome | IP68 | Polymer | Chrome | €339.93 | |
 |
HT8JDH3AF1Q1 | 2 | 2NO, 2NC | 3A | 1 2/5" | Chrome | IP68 | Polymer | Chrome | €234.63 |
