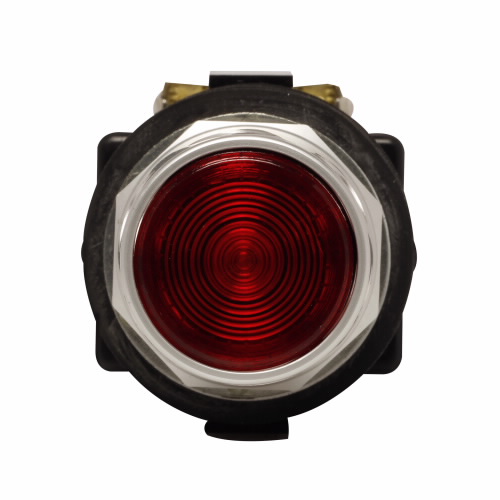

EATON HT8GDBBF7 Pushbutton, Extended Actuator, Chrome Bezel, 1Nc, Illuminated
Item: BH3NEYModel: HT8GDBBF7Cross Ref: 12K471
7 In Stock
Ships within 2 days via
10.00% off
€313.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pushbutton |
| Ac Contact Rating | 10A @ 600V |
| Action | Momentary |
| Actuator Type | Extended |
| Bezel | Chrome |
| Bezel Material | Chrome |
| Contact Configuration | 1 NC |
| Contact Form | 1NC |
| Dc Contact Rating | 5A @ 250V |
| Display Qty | 1 |
| Features | Allen Bradley Pushbutton Panel Compatible |
| Head Material | Metal |
| Head/lens Color | Blue |
| Height | 1 2/5" |
| Illumination | Illuminated |
| Ip Rating | IP65 |
| Lamp Bulb Type | LED |
| Lamp Module Type | Full Voltage |
| Lamp Voltage - Maximum | 120V AC/DC |
| Length | 6.55" |
| Lens Color | Blue |
| Light Unit Voltage | 120V AC/DC |
| Manufacturer Warranty Length | 1 yr. |
| Mechanical Operating Durability | 1 x 10^7 |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Mode | Momentary |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | 10°F |
| Operator Illumination | Illuminated |
| Operator Material | Metal |
| Operator Voltage Rating - Maximum | 28V |
| Overall Depth | 6.55" |
| Overall Height | 1 2/5" |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Oil And Grease Resistant, Watertight |
| Series | Ht800 Series |
| Standards | Ce, Csa, Ul Listed |
| Terminal Connection | Screw Clamp |
| Type | 30.5 mm, Watertight/Oiltight-HT800 |
| Warranty | 1 yr. |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 3.56 |
| Ship length (cm) | 16.64 |
| Ship width (cm) | 5.08 |
| HS code | 8536.50 |
| Country of Origin | DO |
Product Variants
| Model | Type | Height | Head Material | Lamp Module Type | Bezel Material | Contact Form | Bezel | Ip Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HT8FBGABF3 | 30.5 mm, Watertight/Oiltight-HT800 | 5.051" | Metal | Full Voltage | Aluminum | 1NO/1NC | - | IP65 | €502.26 | |
| HT8FBGABL1 | 30.5 mm, Watertight/Oiltight-HT800 | 5.051" | Metal | Transformer | Aluminum | 1NO/1NC | - | IP65 | €510.57 | |
| HT8FBGABF7 | 30.5 mm, Watertight/Oiltight-HT800 | 5.051" | Metal | Full Voltage | Aluminum | 1NO/1NC | - | IP65 | €502.26 | |
| HT8FBGAL1 | 30.5 mm, Watertight/Oiltight-HT800 | 5.051" | Metal | Transformer | Aluminum | 1NO | - | IP65 | €402.01 | |
| HT8FBGBF7 | 30.5 mm, Watertight/Oiltight-HT800 | 5.051" | Metal | Full Voltage | Aluminum | 1NC | - | IP65 | €455.83 | |
| HT8FBGAF3 | 30.5 mm, Watertight/Oiltight-HT800 | 5.051" | Metal | Full Voltage | Aluminum | 1NO | - | IP65 | €455.83 | |
| HT8FBGBF3 | 30.5 mm, Watertight/Oiltight-HT800 | 5.051" | Metal | Full Voltage | Aluminum | 1NC | - | IP65 | €455.83 |
