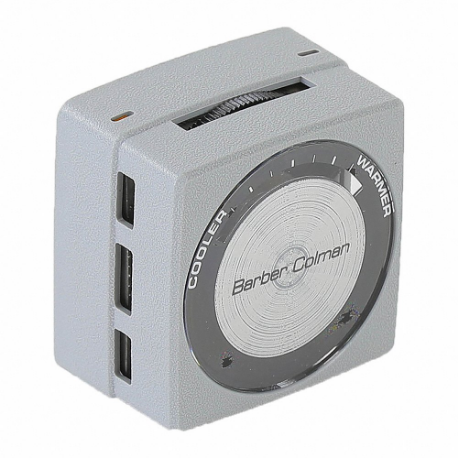

SCHNEIDER ELECTRIC 2298-063 Temperature Control Unit, Remote Reset
Item: CU2CQMModel: 2298-063Cross Ref: 161W29
7 In Stock
Ships within 2 days via
10.00% off
€967.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Control Unit |
| Action | Direct And Reverse |
| Action Type | Direct And Reverse |
| Air Connection Outside Dia. | 1/4" |
| Air Consumption | 29.4 SCIM (16 psig), 45 SCIM (25 psig) |
| Air Flow Output | High Volume |
| Application | Heat Or Cool |
| Compatible System Type | Pneumatic Valves And Damper Actuators |
| Differential Type | Fixed |
| Fitting Connection | 1/4" |
| Includes | Mounting Bracket |
| Includes Cover | No |
| Key Features | Linear And Stable Operation, Small Size |
| Manual Indexing Switch | No |
| Max. Air Pressure | 30 psig |
| Max. Control Temp. | 85°F |
| Min. Control Temp. | 65°F |
| Mounting Direction | Horizontal/Vertical |
| Mounting Location | Wall |
| Number Of Dials | 1 |
| Number Of Pipes | 3 |
| Overall Depth | 1 3/8" |
| Overall Height | 2 1/16" |
| Overall Width | 2 1/16" |
| Pneumatic Thermostat Type | Remote Reset |
| Sensor Type | Bi Metallic Spring |
| Temp. Sensitivity | 2.5 psig/°F |
| Temp. Settings | Single Temperature |
| Temperature Scale | Fahrenheit |
| Thermostat Action | Direct - 16 Psig, Reverse - 25 Psig |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 5.24 |
| Ship length (cm) | 3.49 |
| Ship width (cm) | 5.24 |
| Country of Origin | US |
Product Variants
| Product | Model | Application | Mounting Direction | Air Flow Output | Number Of Pipes | Temp. Settings | Temperature Scale | Number Of Dials | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TK-1711 | Heat Or Cool | Horizontal, Vertical | High Volume | 2 | Single Temperature | Fahrenheit | 2 | 1 5/8" | €1,329.73 | |
 |
2214-121 | Heat And Cool | Horizontal, Vertical | High Volume | 2 | Single Temperature | Celsius, Fahrenheit | 2 | 1 3/8" | €1,043.90 | |
 |
TK-1721 | Heat Or Cool | Horizontal, Vertical | High Volume | 2 | Single Temperature | Fahrenheit | 2 | 1 5/8" | €2,500.69 | |
 |
TK-1301 | Heat And Cool | Horizontal, Vertical | High Volume | 2 | Single Temperature | Fahrenheit | 2 | 1 5/8" | €1,335.55 | |
 |
TK-1741 | Heat And Cool | Horizontal, Vertical | High Volume | 2 | Single Temperature | Fahrenheit | 2 | 1 5/8" | €1,710.05 | |
 |
TK-1281 | Heat And Cool | Horizontal/Vertical | High Volume | 2 | Single Temperature | Fahrenheit | 2 | 1 5/8" | €1,460.13 | |
 |
TK-1201 | Heat And Cool | Horizontal, Vertical | High Volume | 2 | Single Temperature | Fahrenheit | 2 | 1 5/8" | €1,386.33 |
