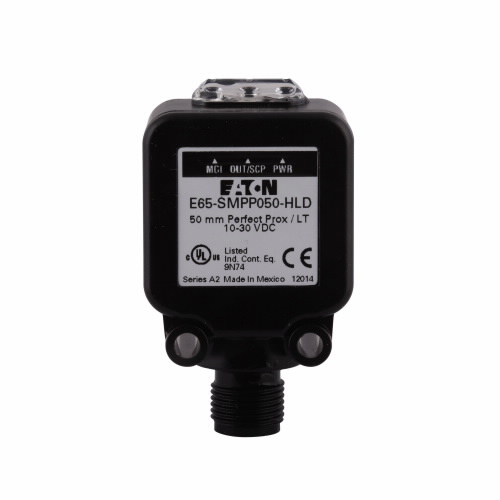

EATON E65-SMPP050-HLD Photoelectric Sensor, Distance 2 Inch, 100 mA Max Dc, 100 mA At 30 VDC, 10-30 VDC
Item: BJ3EFEModel: E65-SMPP050-HLDCross Ref: 2XDN2
7 In Stock
Ships within 2 days via
5.00% off
€310.21 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Ac Supply Voltage | 18-264V AC |
| Body Material | Resin |
| Cable Sheath Material | PVC |
| Connection | 4-pin Dual Key Micro Connector |
| Contact Configuration | DC, NPN Open Collector AC, L1 Switched |
| Contact Rating | 200 MA DC NPN / 200 MA AC 3 - Wire |
| Dc Supply Voltage Rating | 10-30V DC |
| Display Qty | 1 |
| Electrical Connection | Dual Key Micro Connector |
| Electrical Installation Type | Direct Connector |
| Emitted Sensor Light | Red Light |
| Enclosure Lens Material | Polycarbonate |
| Enclosure Material | Cycoloy |
| Features | Overload Protection, Reverse Polarity Protection, Short Circuit Protection |
| Height | 1.29" |
| Included Indicator Lights | Indicator Lights Included |
| Input Voltage | 18-264V AC/18-50V DC |
| Ip Rating | IP68, IP69K |
| Led Indicator | Power On, Green Marginal Gain, Orange Output Status, Red |
| Length | 2.17" |
| Max. Load Amps | 200 mA |
| Max. Operating Temp. | 131°F |
| Max. Sensing Distance | 50 mm |
| Min. Operating Temp. | -13°F |
| Min. Sensing Distance | 10 mm |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| No. Of Pins | 4 |
| Notes | Sensor Will Detect A 90% Reflectance Card at The Sensing Range, Sensor Will Ignore A 90% Reflectance Card at The Cutoff Range |
| Operating Mode | Background Suppression |
| Output Circuit | NPN |
| Output Circuit Type | NPN |
| Overall Depth | 55 mm |
| Overall Dia. | 18 mm |
| Overall Height | 33 mm |
| Overall Width | 41 mm |
| Product Name | Eaton E65 SM Compact Photoelectric Sensor |
| Product Type | Photoelectric Sensor |
| Response Time | 1 ms |
| Sensing Method | Diffuse |
| Sensor Body Style | Rectangular |
| Sensor Dia. | 18 mm |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Light On |
| Sensor Type | Back Ground Suppression |
| Series | E65 SM Series |
| Supply Voltage | 18-264V AC/10-30V DC |
| Supply Voltage Type | Ac, Dc |
| Switch Type | Photoelectric |
| Switching Frequency | 500 Hz |
| Width | 1.63" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 3.28 |
| Ship length (cm) | 5.51 |
| Ship width (cm) | 4.14 |
| Country of Origin | US |
Product Variants
| Model | Height | Input Voltage | Max. Amps | Max. Load Amps | Supply Voltage | Electrical Connection | Overall Height | Dc Supply Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| E65-SMPP050-HD | 1.29" | 10-30V DC | 100 mA | 100 mA | 10-30V DC | Bare Wire | 33 mm | 10-30V DC | €327.22 | |
| E65-SMPP050-GD | 1.29" | 18-264V AC/18-50V DC | 200 mA | 200 mA | 18-264V AC/18-50V DC | Bare Wire | 33 mm | 18-50V DC | €404.72 | |
| E65-SMPP050-GL | 1.29" | 10-30V DC | 100 mA | 100 mA | 18-264V AC/10-30V DC | Bare Wire | 33 mm | 10-30V DC | €421.40 | |
| E65-SMPP050-GLD | 1.29" | 18-264V AC/18-50V DC | 200 mA | 200 mA | 18-264V AC/18-50V DC | Dual Key Micro Connector | 33 mm | 18-50V DC | €402.14 | |
| E65-SMPP050-HDD | 5" | 10-30V DC | 100 mA | 100 mA | 10-30V DC | M12 | 127 mm | 10-30V DC | €369.23 | |
| E65-SMPP050-GDD | 1.29" | 18-264V AC/18-50V DC | 200 mA | 200 mA | 18-264V AC/18-50V DC | Dual Key Micro Connector | 33 mm | 18-50V DC | €429.37 | |
| E65-SMPP050-HL | 1.29" | 10-30V DC | 100 mA | 100 mA | 10-30V DC | M12 | 33 mm | 10-30V DC | €291.32 |
