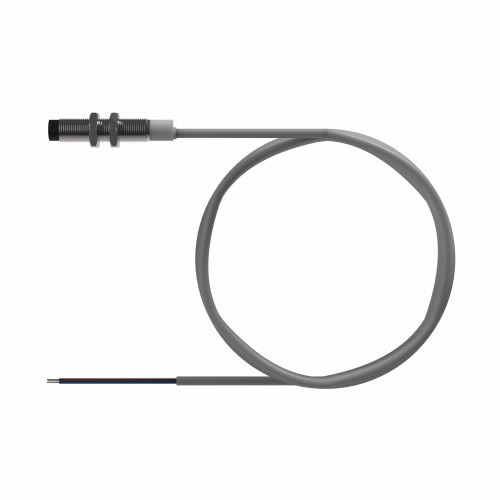

EATON E57P-12UNC8-C2 Cylindrical Proximity Sensor, 10 to 48 VDC, 2000 Hz Proximity Sensor, 3 Wire NPN, 2m Cable
Item: BJ3CYCModel: E57P-12UNC8-C2Cross Ref: 40HT98
7 In Stock
Ships within 2 days via
5.00% off
€303.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Proximity Sensor |
| Ac Supply Voltage | Not Rated |
| Body Material | Stainless Steel |
| Dc Supply Voltage Rating | 10-48V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Features | 360 Degree Led Indicator, Laser-Engraved Label, Short Circuit Protection |
| Included Indicator Lights | Indicator Lights Included |
| Ip Rating | IP69K |
| Length | 6" |
| Max. Load Amps | 10 mA |
| Max. Operating Temp. | 158°F |
| Max. Sensing Distance | 8 mm |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 4X, NEMA 6P |
| No. Of Wires | 3 |
| Nominal Sensor Dia. | M12 Threaded |
| Output Circuit | NPN |
| Output Circuit Amps-max. | 300 mA |
| Output Circuit Contact Form | NC |
| Output Circuit Type | NPN |
| Overall Height | 64 mm |
| Product Height | 5" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 1.9" |
| Sensing Face Shielding | Unshielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Dia. | 12 mm |
| Series | E57 Series |
| Supply Voltage | 10-48V DC |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 4.83 |
| Country of Origin | US |
Product Variants
| Model | Product Height | Product Width | Sensor Dia. | Electrical Connection | Overall Height | Nominal Sensor Dia. | Ip Rating | Electrical Installation Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| E57P-12SNC2-Q | 2" | 5" | 12 mm | Micro | 69 mm | M12 Threaded | IP69K | Direct Connector | €318.82 | |
| E57P-12SNN2-C2 | 2" | 5" | - | - | - | - | - | - | €320.01 | |
| E57P-12SNC2-C2 | 2" | 5" | 12 mm | Bare Wire | 64 mm | M12 Threaded | IP69K | Prewired Cable | €274.50 | |
| E57P-12SNC4-C2 | 5" | 1.9" | 12 mm | Bare Wire | 64 mm | M12 Threaded | IP69K | Prewired Cable | €321.39 | |
| E57P-12SNN4-C2 | 2" | 5 1/4" | 12 mm | Bare Wire | 64 mm | M12 Threaded | IP69K | Prewired Cable | €294.83 | |
| E57P-12SPC2-C2 | 2" | 5 1/4" | 12 mm | Bare Wire | 64 mm | M12 Threaded | IP69K | Prewired Cable | €305.25 | |
| E57P-12SNN4-Q | 1 3/4" | 1 3/4" | 12 mm | Micro | 69 mm | M12 Threaded | IP69K | Direct Connector | €318.79 |
