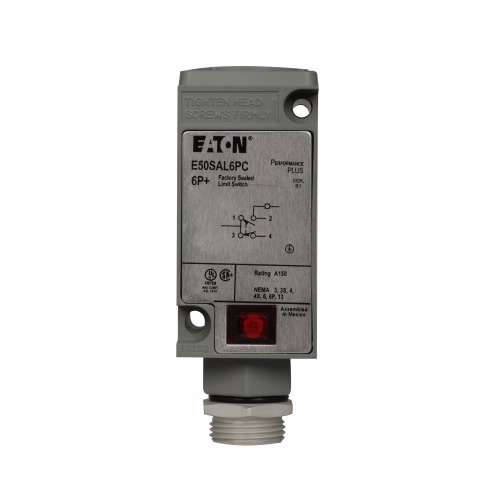

EATON E50SAL6PC-R OneP Factory Sealed Plug-In Limit Switch Body, 1NO-1NC Contact, 10A at 240 VAC
Get it by Thursday, Aug 20
€702.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Limit Switch |
| Connection | 5-pin mini connector |
| Contact Configuration | 1 NC, 1 NO |
| Contact Rating | 10A At 240V AC, 1A At 125V DC |
| Enclosure Material | Die Cast Zinc |
| Height | 3.58" |
| Ip Rating | IP67, IP69K |
| Led Indicator | LED (24-120 V AC/DC) |
| Length | 1.54" |
| Max. Amps | 10A , 1A |
| Max. Operating Temp. | 250°F |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 1, NEMA 13, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Width | 1.58" |
Shipping Info:
| Ship weight (kg) | 0.39 |
| Ship height (cm) | 9.09 |
| Ship length (cm) | 3.91 |
| Ship width (cm) | 4.01 |
| Country of Origin | US |
Product Variants
| Model | Height | Max. Amps | Max. Operating Temp. | Min. Operating Temp. | Ip Rating | Contact Rating | Contact Configuration | Switch Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| E50ALH1 | - | - | - | - | - | - | - | - | €698.12 | |
| E50AH1RFY1 | 4.22" | 10A | 201°F | 14°F | IP67 | 10A At 240V AC, 1A At 250V DC | 1 NC, 1 NO | Side pushbutton Maintained | €612.22 | |
| E50AL16P20 | 4.67" | 10A | 201°F | 10°F | IP67, IP69K | 10A At 240V AC, 1A At 250V DC | 1 NC, 1 NO | Side Rotary | €920.83 | |
| E50ALL16P | 4.67" | 10A | 201°F | 10°F | IP67, IP69K | 10A At 240V AC, 1A At 125V DC | 1 NC, 1 NO | Side Rotary | €872.25 | |
| E50ALH16P | 4.67" | 10A | 201°F | 14°F | IP67, IP69K | 10A At 240V AC, 1A At 125V DC | 1 NC, 1 NO | Side pushbutton Maintained | €991.18 | |
| E50ALR16P12 | 4.67" | 10A | 201°F | 10°F | IP67, IP69K | 10A At 240V AC, 1A At 125V DC | 1 NC, 1 NO | Side Rotary | €890.91 | |
| E50ALM16P20 | 4.67" | 10A | 201°F | 14°F | IP67, IP69K | 10A At 240V AC, 1A At 125V DC | 1 NC, 1 NO | Maintained Side Rotary | €672.52 |
