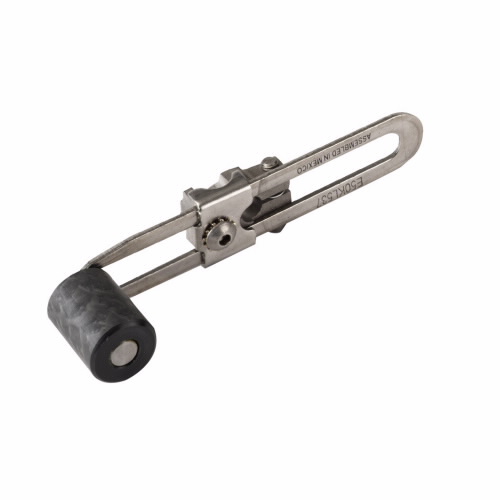

EATON E50KL537 Limit Switch Lever Arm, Adj Roller, 1.00 Inch to 3.75 in, Front, 0.75 Inch Roller Dia.
Item: BJ2ZXRModel: E50KL537Cross Ref: 49A955
7 In Stock
Ships within 2 days via
10.00% off
€116.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Switch Operator |
| Actuator Type | Roller Lever |
| Arm Adjustability | Adjustable |
| Arm Depth | 4.6" |
| Arm Length - Minimum | 1" |
| Arm Material | Nylon |
| Arm/operator Length - Maximum | 3.75" |
| Compatible With Brand | Eaton |
| Compatible With Grainger Part Number | 49A924, 49A992 |
| Compatible With Manufacturer Model Number | E50AR1, E50AR16P |
| Compatible With Series | E50 Series |
| Display Qty | 1 |
| For Use With | Used With Side Rotary |
| Height | 1 13/25" |
| Ip Rating | IP67 |
| Length | 4 3/5" |
| Manufacturer Warranty Length | 1 yr. |
| Material | Nylatron |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | 10°F |
| Nema Enclosure Rating | NEMA 1, NEMA 13, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Roller Adjustability | Adjustable |
| Roller Diameter | 3/4" |
| Roller Material | Nylon |
| Roller Position | Front |
| Roller Width | 1" |
| Series | E50 Series |
| Torque Rating | 3.10 In-Oz Min. Return |
| Type | Accessory |
| Warranty | 1 yr. |
| Width | 3/4" |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 3.86 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 1.91 |
| Country of Origin | US |
Product Variants
| Product | Model | Actuator Type | Roller Material | Arm Material | Roller Position | Arm Length | Type | Arm Depth | Arm Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E50KL200HG1000 | - | Nylatron | - | - | - | - | - | - | €40.29 | |
 |
E50KL142 | Looped Lever | - | Nylon | - | 6" | - | 1.9" | 0.74" | €102.85 | |
 |
E50KL201SPL | Roller Lever | Nylon | Stainless Steel | Front | - | Accessory | 4.6" | - | €121.60 | |
 |
E50KL200 | Roller Lever | Nylon | Nylon | Front | 1 1/2" | - | 2.22" | 3/4" | €58.51 | |
|
E50KL201 | - | Nylon | Nylon | Front | - | Accessory | 4.6" | - | €92.18 | |
 |
E50KL203 | - | Nylatron | - | - | - | - | - | - | €66.12 | |
 |
E50KL202 | Rod | - | Metal | - | 5 1/2" | - | 5 1/2" | 1.12" | €96.49 |
