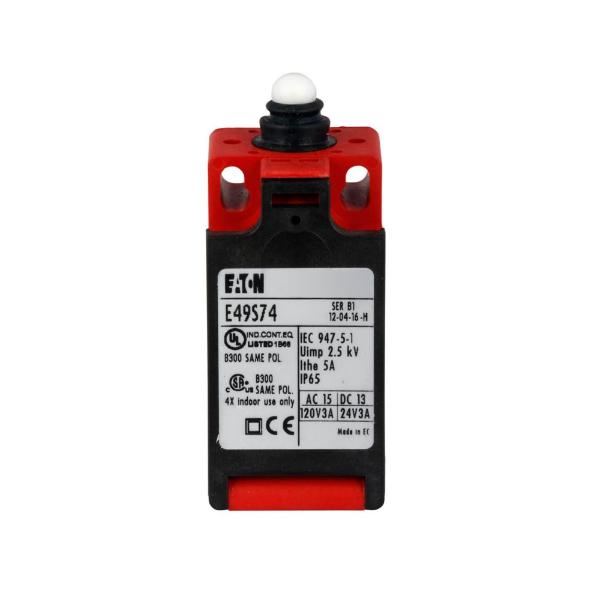

EATON E49S74 Miniature Din Rail Limit Switch Body, 10A At 240 VAC, 1.5A At 30 VDC Contact
Get it by Tuesday, Dec 23
€128.90 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Limit Switch |
| Connection | Screw Terminal |
| Contact Configuration | 1 NC, 1 NO |
| Contact Rating | 10A At 240V AC, 1.5A At 30V DC |
| Enclosure Material | Plastic |
| Height | 1 1/5" |
| Ip Rating | IP65 |
| Length | 2.91" |
| Max. Ac Amps | 10A Continuous |
| Max. Dc Amps | 1.5A At 24V DC |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -22°F |
| Mounting Type | Miniature DIN Rail |
| Nema Enclosure Rating | NEMA 13, NEMA 4, NEMA 4X, NEMA 6P |
| Warranty | 1 yr. |
| Weight | 0.01 lbs. |
| Width | 1.22" |
Shipping Info:
| Ship height (cm) | 3.05 |
| Ship length (cm) | 7.39 |
| Ship width (cm) | 3.1 |
| Country of Origin | US |
Product Variants
| Product | Model | Mounting Type | Height | Ip Rating | Type | Price | |
|---|---|---|---|---|---|---|---|
 |
E49CP7 | - | 1.34" | IP65 | - | €25.19 | |
 |
E49M11CP1 | Standard DIN Rail | 1.58" | - | - | €232.71 | |
 |
E49M11AP1 | Standard DIN Rail | 1.58" | - | - | €244.33 | |
 |
E49M11BP1 | Standard DIN Rail | 1.58" | - | - | €269.27 | |
 |
E49M11UP1 | Standard DIN Rail | 1.58" | - | - | €257.90 | |
 |
E49M11CP2 | - | 4 13/25" | - | Mechanical Limit Switches | €208.88 | |
 |
E49M11VP1 | Standard DIN Rail | 1.58" | - | - | €157.14 |
