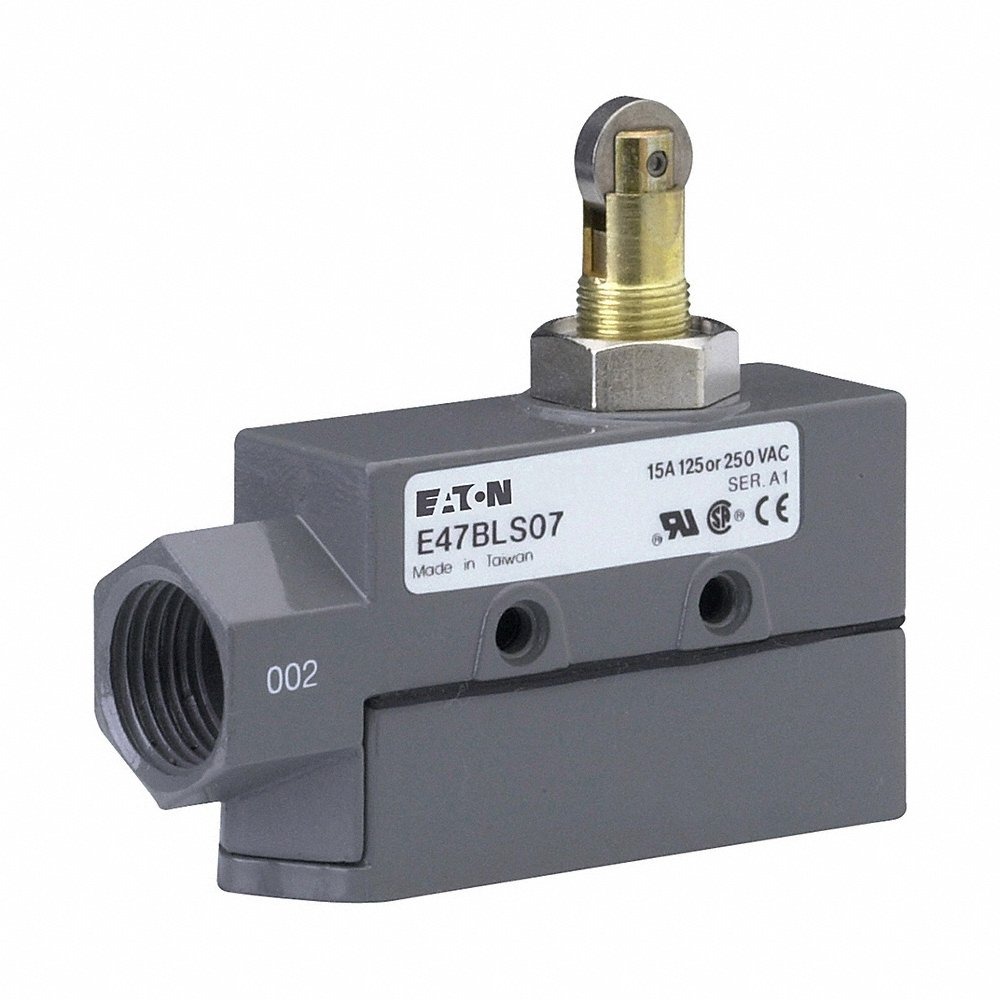

EATON E47BLS07 Limit Switch, 250 VAC, 30 VDC, 6/15A, Roller Plunger Actuator, 1P
Item: BJ2ZABModel: E47BLS07Cross Ref: 831UZ3
7 In Stock
Ships within 2 days via
10.00% off
€252.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Limit Switch |
| Actuator Type | Roller plunger |
| Connection | Screw Terminal |
| Contact Configuration | 1-SPDT (form C) |
| Contact Rating | 15A At 250V AC, 6A At 30V DC |
| Enclosure Material | Die Cast Aluminum |
| Height | 3.01" |
| Length | 3.39" |
| Max. Ac Amps | 15A |
| Max. Dc Amps | 15A |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 1 |
| Operating Speed | 0.01 mm/sec. to 1 mps |
| Series | E47 Series |
| Type | E47 |
| Warranty | 1 yr. |
| Weight | 0.47 lbs. |
| Width | 1" |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 8.89 |
| Country of Origin | TW |
Product Variants
| Product | Model | Height | Cable Length | Ip Rating | Type | Price | |
|---|---|---|---|---|---|---|---|
 |
E47BCC07P4 | 1/2" | - | IP67 | E47 | €253.81 | |
 |
E47BCC05 | - | - | - | - | €347.59 | |
 |
E47BCC06 | 0.69" | 117.6 ft. | IP67 | E47 | €355.58 | |
 |
E47BCC06P4 | 2 1/2" | - | IP67 | E47 | €350.95 | |
 |
E47BCC07 | 0.69" | 117.6 ft. | IP67 | E47 | €347.59 | |
|
E47BCC05P4 | 2.13" | - | IP67 | E47 | €203.60 | |
 |
E47BCC08 | 0.69" | 117.6 ft. | IP67 | E47 | €355.58 |
