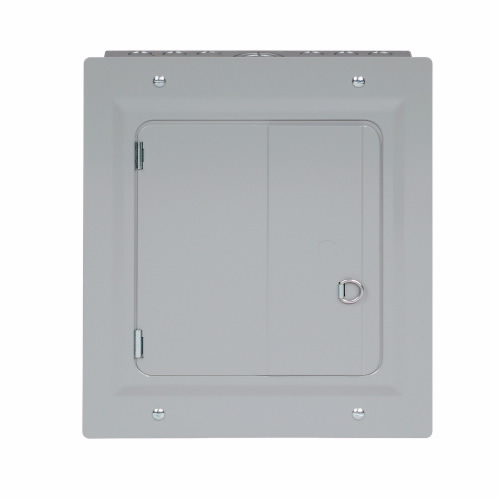

EATON BR1020B100FRNV Main Breaker Loadcenter, 120/240 VAC, 100A, 20P, 10 kA Interrupt, 1-Phase
Get it by Tuesday, Sep 1
€1,311.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Load Center |
| Amps | 100A |
| Box Size | B2R |
| Bus Material | Aluminum |
| Cover | Cover Included |
| Enclosure Material | Metal |
| For Use With | Type Br 1-Inch Breakers |
| Height | 4 1/5" |
| Interrupt Rating | 10 Kaic |
| Length | 15.1" |
| Main Circuit Breaker | BR |
| Mounting | Semi Flush |
| Nema Enclosure Rating | NEMA 3R |
| No. Of Circuits | 20 |
| No. Of Spaces | 10 |
| No. Of Wires | 3 |
| Notes | Includes Through-Feed Lugs For Both Phase And Neutral Conductors. Rainproof Panels Are Furnished With Hub Closure Plates. |
| Phase | 1 |
| Type | Main Circuit Breaker Loadcenter |
| Voltage | 120/240V |
| Width | 12 1/2" |
| Wire Size | #4 AWG to 1/0 AWG |
Shipping Info:
| Ship weight (kg) | 5 |
| Ship height (cm) | 10.67 |
| Ship length (cm) | 38.35 |
| Ship width (cm) | 31.75 |
| Country of Origin | US |
Product Variants
| Product | Model | For Use With | Price | |
|---|---|---|---|---|
 |
3B4242ESN | - | €11,205.79 | |
 |
3BR1224B100S | Type Br 1-Inch Breakers | €3,257.45 | |
 |
3BR1224BC100 | - | €3,210.17 | |
|
3BR1224BC100R | - | €3,816.35 | |
|
3BR1224B100R | Type Br 1-Inch Breakers | €1,160.83 | |
|
3BR1224B100 | Type Br 1-Inch Breakers | €3,112.47 | |
|
3BR1224H100 | Type Br 1-Inch Breakers | €4,165.61 |
