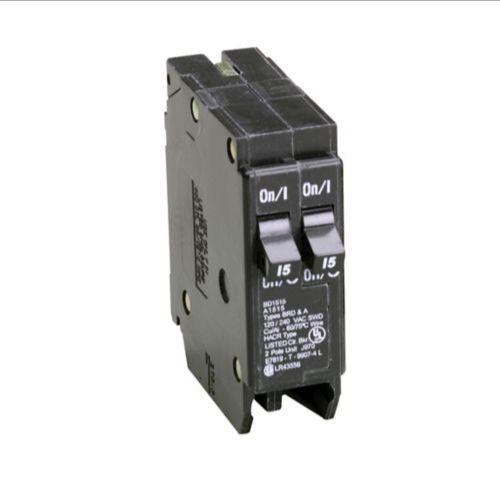

EATON BD1515 Thermal Magnetic Circuit Breaker, Type Bd, 15-15 A, 10 Kaic, 1-Pole, 120V, #14-4 Awg Cu/Al
Item: BJ7QAQModel: BD1515Cross Ref: 60JL22
7 In Stock
15A
Ships within 2 days via
10.00% off
€29.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 120V AC |
| Amperage Rating | 15A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Circuit Breaker Type | Tandem |
| Compatible Panelboard/load Center Series | Series BD |
| Dc Voltage Rating | Not Rated |
| Depth | 2.5" |
| Features | Includes Rejection Tab Feature |
| For Use With | Type BR Loadcenters |
| Height | 2 1/2" |
| Interrupt Rating | 10 kAIC |
| Length | 2.9" |
| Main Circuit Breaker | BD |
| Max. Air Rating | 10 kA At 120V AC |
| Max. Wire Size | 4 AWG |
| Min. Wire Size | 14 AWG |
| Mounting Type | Plug-On |
| Notes | All Type BD Duplex And BQ Quadplex Circuit Breakers Carry Listing For HACR Applications. All 15 And 20 Ampere Single Poles Are Switch Duty Rated. |
| Number Of Poles | 1 |
| Phase | Single |
| Type | Type BD 1-Inch CTL Plug-on Circuit Breaker |
| Voltage | 120V AC |
| Width | 1" |
| Wire Size | #14 AWG to 4 AWG |
Shipping Info:
| Ship weight (kg) | 0.16 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Number Of Poles | Ac Voltage Rating | Voltage | Min. Wire Size | Max. Wire Size | Phase | Amps | Dc Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
BQ215215 | 4 | - | 120/240V | - | - | - | - | - | €95.83 | |
 |
BQ215220 | 4 | - | 120/240V | - | - | - | - | - | €95.83 | |
 |
BQ215230 | 4 | - | 120/240V | - | - | - | - | - | €95.83 | |
 |
BQ215240 | 4 | - | 120/240V | - | - | - | - | - | €95.83 | |
 |
BQ215250 | 4 | - | 120/240V | - | - | - | - | - | €95.83 | |
 |
BQ2202115 | 4 | - | 120/240V at 20A, 120V at 20A | - | - | - | - | - | €102.67 | |
 |
BQ2202120 | 4 | - | 120/240V at 20A, 120V at 15A | - | - | - | - | - | €102.67 |
