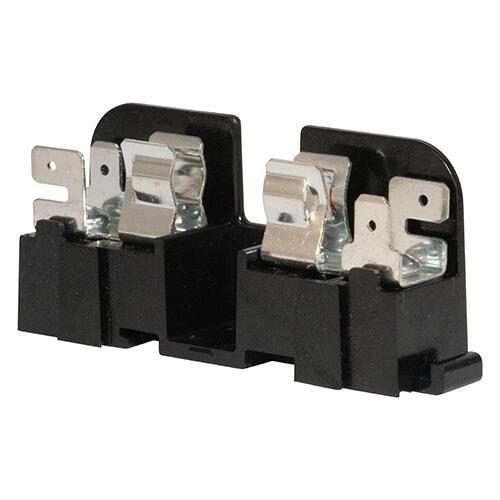

MERSEN FERRAZ 40220G Fuse Base, 600V, 20A, Class G, Adder, Tin Plated, Copper Pressure Plate
Get it by Tuesday, Sep 1
€340.04 /pkg. of 10
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Base |
| Ac Voltage Rating | 600V AC |
| Ac/dc | AC/DC |
| Amps | 20A |
| Body Material | GFPC |
| Body/insulating Material | Glass Filled Polycarbonate |
| Frequency | 50/60 Hz |
| Fuse Class | Class G |
| Fuse Installation Method | Clip In |
| Height | 36.8 mm |
| Installation Mounting | Screw Mount, Din Rail |
| Length | 77.5 mm |
| Max. Fuse Rating | 20A |
| No. Of Poles | Adder |
| Product Datasheet | mersen-ferraz-40110g.pdf |
| Product Group | Fuse Bases |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Short Circuit Amps Rating (sccr) | 100 kA |
| Torque | 2.26 N-m |
| Width | 19.6 mm |
| Wire Material | Copper |
| Wiring Range | #10 to 14 |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 7.77 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 7.92 |
Product Details:
- With Reinforced Clip
Documentation:
Product Variants
| Product | Model | Amps | Height | No. Of Poles | Voltage | Ac Voltage Rating | Rated Voltage Ac Ul | Installation Mounting | Rated Voltage Dc Ul | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
40110G | 15A | 36.8 mm | Adder | - | 600V AC | 600V | Screw Mount, Din Rail | 600V | 1 | €20.87 | |
 |
40111G | 15A | 36.8 mm | 1 | 600V AC/DC | 600V AC | 600V | Screw Mount, Din Rail | 600V | 1 | €18.91 | |
 |
40112G | 15A | 36.8 mm | 2 | 600V AC/DC | 600V AC | 600V | Screw Mount, Din Rail | 600V | 1 | €34.79 | |
 |
40113G | 15A | 36.8 mm | 3 | 600V AC/DC | 600V AC | 600V | Screw Mount, Din Rail | 600V | 1 | €51.15 | |
 |
40120G | 15A | 36.8 mm | Adder | - | 600V AC | 600V | Screw Mount, Din Rail | 600V | 10 | €340.29 | |
|
40121G | 15A | 36.8 mm | 1 | - | 600V AC | 600V | Screw Mount, Din Rail | 600V | 1 | €41.19 | |
|
40122G | 15A | 36.8 mm | 2 | - | 600V AC | 600V | Screw Mount, Din Rail | 600V | 5 | €321.03 |
