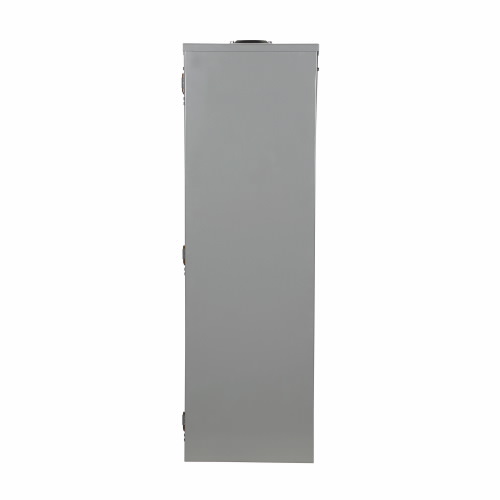

EATON 3BR4242B200R Main Circuit Breaker Load Centre, 3-Phase, 208Y/120/240 VAC, 200A, 25 kA Interrupt
Get it by Monday, Dec 22
€1,433.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Load Center |
| Amps Rating | 200A |
| Box Size | L2R |
| Bus Material | Aluminum |
| Cover | Cover Included |
| Enclosure Material | Metal |
| For Use With | Type Br 1-Inch Breakers |
| Height | 39" |
| Interrupt Rating | 25 Kaic |
| Length | 3 22/25" |
| Main Circuit Breaker | BWH |
| Nema Enclosure Rating | NEMA 3R |
| No. Of Wires | 4 |
| Notes | Listed For Use As Service Entrance Equipment And Shipped With A Neutral Bonding Strap Preattached, The Maximum Rating Of The Panel Is The Main Breaker Rating When Used As Service Entrance Equipment |
| Number Of Circuits | 42 |
| Number Of Spaces | 42 |
| Phase | 3 |
| Special Features | No Feed-Thru Lugs |
| Type | Main Circuit Breaker |
| Voltage Rating | 120/208/240V |
| Warranty | 10 yrs. |
| Width | 14.31" |
| Wire Size | #1 AWG to 250 kcmil |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 99.06 |
| Ship length (cm) | 9.86 |
| Ship width (cm) | 36.35 |
| Country of Origin | US |
Product Variants
| Product | Model | For Use With | Price | |
|---|---|---|---|---|
 |
3B4242ESN | - | €11,205.79 | |
 |
3BR1224B100S | Type Br 1-Inch Breakers | €3,257.45 | |
 |
3BR1224BC100 | - | €3,210.17 | |
|
3BR1224BC100R | - | €3,816.35 | |
|
3BR1224B100R | Type Br 1-Inch Breakers | €1,160.83 | |
|
3BR1224B100 | Type Br 1-Inch Breakers | €3,112.47 | |
|
3BR1224H100 | Type Br 1-Inch Breakers | €4,165.61 |
