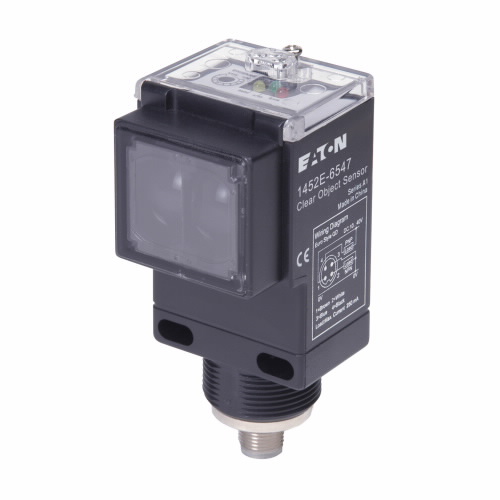

EATON 1452E-6547 Photoelectric Sensor, Clear Object Detector, 250 mA At 10-40 VDC, 4 Pin
Get it by Friday, Aug 21
€571.24 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Connection | M12 |
| Contact Configuration | NPN/PNP Open Collector |
| Contact Rating | 250 MA at 10-40V DC |
| Enclosure Material | Fiberglass Reinforced Plastic |
| Height | 1.81" |
| Input Voltage | 10-40V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output, Green Power, Yellow Alignment, Red |
| Length | 4.01" |
| Max. Amps | 250 mA |
| Max. Operating Temp. | 131°F |
| Min. Operating Temp. | -13°F |
| No. Of Pins | 4 |
| Product Name | Eaton Enhanced 50 Photoelectric Sensor |
| Protection Type | Output Short Circuit, Overcircuit And Reverse Polarity |
| Sensor Type | Clear Object Detector |
| Width | 3.46" |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 4.6 |
| Ship length (cm) | 10.19 |
| Ship width (cm) | 8.79 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Input Voltage | Sensor Type | Contact Rating | Contact Configuration | Max. Amps | Operating Mode | Time Delay | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1150E-6507 | 4 4/25" | 10-40V DC | Through Beam | - | - | - | Thru Beam | - | €265.04 | |
 |
1150E-6513 | 3.46" | 12-240V AC/24-240V DC | Through Beam | - | - | - | Thru Beam | - | €147.68 | |
|
1150E-6534 | 3.46" | 12-240V AC/24-240V DC | Through Beam | - | - | - | Thru Beam | - | €265.04 | |
|
1150E-6513-9M | 3.46" | 12-240V AC/24-240V DC | Through Beam | - | - | - | Thru Beam | - | €292.29 | |
 |
1150E-6504 | 4 4/25" | 12-240V AC/24-240V DC | Through Beam | - | - | - | Thru Beam | - | €234.16 | |
 |
1150E-6537 | 1.81" | 10-40V DC | Through Beam | - | - | - | - | - | €265.04 | |
|
1150E-6543 | 4.01" | 12-240V AC/24-240V DC | Through Beam | - | - | - | Thru Beam | - | €265.04 |
