EATON 50 Series Enhanced Photoelectric Sensors


Eaton 50 Series enhanced photoelectric sensors are used in high shock & vibration environments for detecting the presence or absence of objects. These photoelectric sensors use a LED and a photodetector to transmit and receive a beam of light for precise sensing. These sensors can be custom...ised using three output types, four time-delay functions, six sensing modes and four connection types.Read more

Filter
EATON 1150E-6537A
EATON 1550E-8513B
EATON 1452E-8504C
EATON 1452E-8543D
EATON 1151E-6507E
EATON 1250E-6507F
EATON 1550E-8533G
EATON 1550E-6547H
EATON 1450E-6504-NRI
EATON 1151E-6537J
EATON 1450E-8533K
EATON 1150E-6547L
EATON 1551E-6517M
EATON 1450E-8514N
EATON 1452E-6547O
EATON 1550E-8503P

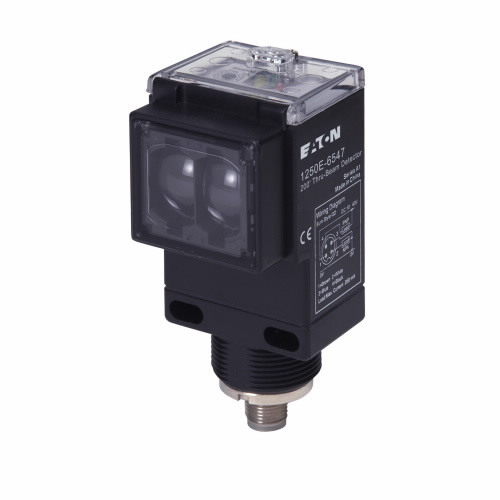

EATON 1250E-6547Q
EATON 1550E-6537R
EATON 1250E-6514S
EATON 1450E-6507T
EATON 1452E-6513U
EATON 1452E-6514V
EATON 1452E-6517W
EATON 1351E-8537X
EATON 1351E-8534Y
EATON 1351E-8513Z
EATON 1351E-8514A1
EATON 1351E-6533B1
StyleModelHeightInput VoltageSensor TypeContact RatingContact ConfigurationMax. AmpsOperating ModeTime DelayPrice
A
1150E-6537		1.81"10-40V DCThrough Beam-----€265.04
B
1550E-8513		1.81"24-240V AC/12-240V DCFiber Optic300 MA at 240V AC/DCSPNO SSR300 mAFiber OpticTime Delayed€578.28
C
1452E-8504		1.81"24-240V AC/12-240V DCClear Object Detector3A at 240V ACSPDT Form C Relay3A-Time Delayed€1,122.39
D
1452E-8543		1.81"24-240V AC/12-240V DCClear Object Detector300 MA at 240V AC/DCSPNO SSR300 mA-Time Delayed€788.06
E
1151E-6507		1.81"10-40V DCThrough Beam-----€357.17
F
1250E-6507		1.81"10-40V DCThrough Beam250 MA at 10-40V DCNPN/PNP Open Collector250 mA--€334.50
G
1550E-8533		1.81"24-240V AC/12-240V DCFiber Optic300 MA at 240V AC/DCSPNO SSR300 mAFiber OpticTime Delayed€578.28
H
1550E-6547		1.81"10-40V DCFiber Optic250 MA at 10-40V DCNPN/PNP Open Collector250 mAFiber Optic-€411.03
I
1450E-6504-NR		1.81"24-240V AC/12-240V DCRetroreflective3A at 240V ACSPDT Form C Relay3A--€193.18
J
1151E-6537		1.81"10-40V DCThrough Beam-----€357.17
K
1450E-8533		1.81"24-240V AC/12-240V DCRetroreflective300 MA at 240V AC/DCSPNO SSR300 mA-Time Delayed€558.44
L
1150E-6547		1.81"10-40V DCThrough Beam-----€144.78
M
1551E-6517		1.81"10-40V DCFiber Optic250 MA at 10-40V DCNPN/PNP Open Collector250 mAFiber Optic-€411.03
N
1450E-8514		1.81"24-240V AC/12-240V DCRetroreflective3A at 240V ACSPDT Form C Relay3A-Time Delayed€474.38
O
1452E-6547		1.81"10-40V DCClear Object Detector250 MA at 10-40V DCNPN/PNP Open Collector250 mA--€571.24
P
1550E-8503		1.81"24-240V AC/12-240V DCFiber Optic300 MA at 240V AC/DCSPNO SSR300 mAFiber OpticTime Delayed€578.28
Q
1250E-6547		1.81"10-40V DCThrough Beam250 MA at 10-40V DCNPN/PNP Open Collector250 mA--€183.77
R
1550E-6537		2 1/4"10-40V DC-250 MA at 40V DCNPN And PNP Open Collector250 mAFiber Optic Infrared-€209.52
S
1250E-6514		2.1"12-240V AC/24-240V DCThrough Beam3A at 240V ACSPDT Form C Relay3AThru Beam-€348.68
T
1450E-6507		2.3"10-40V DCRetroreflective250 MA at 40V DCNPN And PNP Open Collector250 mANon Polarized Retroreflective-€382.69
U
1452E-6513		3.13"24-240V AC/12-240V DCClear Object Detector300 MA at 240V AC/DCSPNO SSR300 mA--€232.16
V
1452E-6514		3.13"24-240V AC/12-240V DCClear Object Detector3A at 240V ACSPDT Form C Relay3A--€643.48
C
1452E-8514		3.13"24-240V AC/12-240V DCClear Object Detector3A at 240V ACSPDT Form C Relay3A-Time Delayed€1,122.39
W
1452E-6517		3.13"10-40V DCClear Object Detector250 MA at 10-40V DCNPN/PNP Open Collector250 mA--€790.52
R
1250E-8517		3.46"10-40V DCThrough Beam250 MA at 40V DCNPN And PNP Open Collector250 mAThru BeamYes€467.74
R
1351E-8533		3.46"12-240V AC/24-240V DCDiffuse Reflective300 MA at 240V AC/V DCIsolated Solid State Relay300 mADiffuse ReflectiveYes€586.79
R
1551E-8537		3.46"10-40V DCFiberoptic250 MA at 40V DCNPN And PNP Open Collector250 mAVisible Red Fiber OpticYes€544.26
R
1551E-8514		3.46"12-240V AC/24-240V DCFiberoptic3A at 240V ACSPDT Form C Relay3AVisible Red Fiber OpticYes€558.44
R
1551E-8517		3.46"10-40V DCFiberoptic250 MA at 40V DCNPN And PNP Open Collector250 mAVisible Red Fiber OpticYes€544.26
R
1452E-8517		3.46"10-40V DCClear Object Detector250 MA at 40V DCNPN And PNP Open Collector250 mAClear Object DetectorYes€748.36
V
1551E-6514		3.46"12-240V AC/24-240V DCFiberoptic3A at 240V AC-3AFiber Optic Visible Red-€430.87
R
1250E-6534		3.46"12-240V AC/24-240V DCThrough Beam3A at 240V ACSPDT Form C Relay3AThru Beam-€348.68
R
1250E-8534		3.46"12-240V AC/24-240V DCThrough Beam3A at 240V ACSPDT Form C Relay3AThru BeamYes€479.06
R
1450E-8513		3.46"12-240V AC/24-240V DCRetroreflective300 MA at 240V AC/V DCIsolated Solid State Relay300 mANon Polarized RetroreflectiveYes€304.65
R
1450E-6537		3.46"10-40V DCRetroreflective250 MA at 40V DCNPN And PNP Open Collector250 mANon Polarized Retroreflective-€382.69
R
1551E-6534		3.46"12-240V AC/24-240V DCFiberoptic3A at 240V ACSPDT Form C Relay3AFiber Optic Visible Red-€430.87
R
1551E-8534		3.46"12-240V AC/24-240V DCFiberoptic3A at 240V ACSPDT Form C Relay3AFiber Optic Visible RedYes€558.44
X
1351E-8537		3.46"10-40V DCDiffuse Reflective250 MA at 40V DCNPN And PNP Open Collector250 mADiffuse ReflectiveYes€558.44
Y
1351E-8534		3.46"12-240V AC/24-240V DCDiffuse Reflective3A at 240V ACSPDT Form C Relay3ADiffuse ReflectiveYes€572.62
R
1250E-8514		3.46"12-240V AC/24-240V DCThrough Beam3A at 240V ACSPDT Form C Relay3AThru BeamYes€706.54
R
1251E-6533		3.46"12-240V AC/24-240V DCThrough Beam300 MA at 240V AC/V DCIsolated Solid State Relay300 mAThru Beam-€365.69
R
1351EF1617		3.46"10-40V DCDiffuse Reflective250 MA at 40V DCNPN And PNP Open Collector250 mADiffuse Reflective-€251.57
R
1251E-8533		3.46"12-240V AC/24-240V DCThrough Beam300 MA at 240V AC/V DCIsolated Solid State Relay300 mAThru BeamYes€504.58
R
1351E-6537		3.46"10-40V DCDiffuse Reflective250 MA at 40V DCNPN And PNP Open Collector250 mADiffuse Reflective-€422.37
Z
1351E-8513		3.46"12-240V AC/24-240V DCDiffuse Reflective300 MA at 240V AC/V DCIsolated Solid State Relay300 mADiffuse ReflectiveYes€298.49
R
1251E-8514		3.46"12-240V AC/24-240V DCThrough Beam3A at 240V ACSPDT Form C Relay3AThru BeamYes€244.66
R
1452E-8537		3.46"10-40V DCClear Object Detector250 MA at 40V DCNPN And PNP Open Collector250 mAClear Object DetectorYes€748.36
V
1550E-6514		3.46"12-240V AC/24-240V DCFiberoptic3A at 240V ACSPDT Form C Relay3AFiber Optic Infrared-€430.87
R
1550E-6533		3.46"12-240V AC/24-240V DCFiberoptic300 MA at 240V AC/V DCIsolated Solid State Relay300 mAFiber Optic Infrared-€447.88
A1
1351E-8514		3.46"12-240V AC/24-240V DCDiffuse Reflective3A at 240V ACSPDT Form C Relay3ADiffuse Reflective-€572.62
R
1251E-8537		3.46"10-40V DCThrough Beam250 MA at 40V DCNPN And PNP Open Collector250 mAThru BeamYes€467.74
R
1250E-8513		3.46"12-240V AC/24-240V DCThrough Beam300 MA at 240V AC/V DCIsolated Solid State Relay300 mAThru BeamYes€303.72
R
1452E-8534		3.46"12-240V AC/24-240V DCClear Object Detector3A at 240V ACSPDT Form C Relay3AClear Object DetectorYes€765.37
R
1450E-8534		3.46"12-240V AC/24-240V DCRetroreflective3A at 240V ACSPDT Form C Relay3ANon Polarized RetroreflectiveYes€787.71
R
1150E-6534		3.46"12-240V AC/24-240V DCThrough Beam---Thru Beam-€265.04
R
1250E-8537		3.46"10-40V DCThrough Beam250 MA at 40V DCNPN And PNP Open Collector250 mAThru BeamYes€467.74
R
1150E-6513-9M		3.46"12-240V AC/24-240V DCThrough Beam---Thru Beam-€292.29
R
1452E-6533		3.46"12-240V AC/24-240V DCClear Object Detector300 MA at 240V AC/V DCIsolated Solid State Relay300 mAClear Object Detector-€669.00
R
1450E-6533		3.46"12-240V AC/24-240V DCRetroreflective300 MA at 240V AC/V DCIsolated Solid State Relay300 mANon Polarized Retroreflective-€422.37
R
1351EF1014		3.46"12-240V AC/24-240V DCDiffuse Reflective3A at 240V ACSPDT Form C Relay3ADiffuse Reflective-€216.61
B1
1351E-6533		3.46"12-240V AC/24-240V DCDiffuse Reflective300 MA at 240V AC/V DCIsolated Solid State Relay300 mADiffuse Reflective-€453.56

Working Mechanism

  • Eaton 50 Series enhanced photoelectric sensors transmit and receive a light beam using a light-emitting diode and a photodetector.
  • The photodetector, on the other side of the sensing area, is illuminated by a beam of light emitted by the LED.
  • A photodetector cannot detect light when there is an object blocking the light beam in the sensing area.
  • The photodetector uses this variation in light intensity to determine whether an object is present or absent.

Features

  • Eaton 50 Series enhanced photoelectric sensors feature 4 logic options ON-delay, OFF-delay, ON/OFF-delay and oneshot delay.
  • They feature a 3A SPDT relay on the output section for electrical protection.
  • These photoelectric sensors have adjustable sensitivity of the sensor to optimise their performance.
  • They have brackets for easy mounting and to allow precise adjustment of sensor alignment.
  • These photoelectric sensors feature fully potted construction to withstand harsh industrial environments.
  • They offer a light / dark mode selection for using them in daylight as well as in dark.

Standards and Approvals

  • CSA
  • CE
  • RoHS

Frequently Asked Questions

What are the different sensing modes available for Eaton 50 Series enhanced photoelectric sensors?

These 50 Series enhanced photoelectric sensors offer thru beam, reflex, polarised reflex, diffuse reflective, clear object and fibre optic sensing modes.

What is the difference between photoelectric sensors and proximity sensors?

Photoelectric sensors use light beams for detecting objects, whereas proximity sensors use capacitive fields or electromagnetic to detect the presence of objects.
